    EE/F(EM-EE) CE/F(EM-CE)

    Application and Description

    For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

    Name Code

    E : Polyethylene

    C : Cross-linked polyethylene

    F : Flame retardant polyethylene

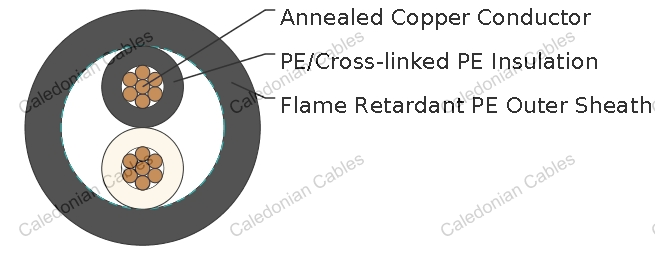

    Cable Construction

    Conductor Circular, circuar or segmental compacted stranded annealed copper wires
    Seperator A proper separator may be applied to a conductor
    Insulation Polyethylene/Cross-linked polyethylene
    Color 2 cores- Black and white
    3 cores- Black, white and red
    4 cores- Black, white, red and green
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Flame retardant polyethylene, Black color

    Technical Characteristics

    Maximum conductor temperature : 90ºC

    Circuit voltage not exceeding : 600 volts

    Cable Parameter

    No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Test Voltage Maximum DC. resistance of Cdr. at 20ºC Cable weight (approx.)
    mm² mm mm mm mm V Ohm / km kg/km
    1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 55
    3.5 7/0.8 2.4 0.8 1.5 7.0 5.2 1500 75
    5.5 7/1.0 3.0 1.0 1.5 8.0 3.33 1500 105
    8 7/1.2 3.6 1.0 1.5 8.6 2.31 1500 130
    8 compacted 3.4 1.0 1.5 8.4 2.29 1500 130
    14 7/1.6 4.8 1.0 1.5 9.8 1.31 2000 200
    14 compactcd 4.4 1.0 1.5 9.4 1.30 2000 195
    22 7/2.0 6.0 1.2 1.5 11.5 0.824 2000 290
    22 compacted 5.5 1.2 1.5 11.0 0.832 2000 280
    38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 450
    38 compacted 7.3 1.2 1.5 13.0 0.481 2500 445
    60 19/2.0 10.0 1.5 1.5 16.0 0.303 2500 690
    60 compacted 9.3 1.5 1.5 15.5 0.305 2500 675
    100 19/2.6 13.0 2.0 1.5 20.0 0.180 2500 1130
    100 compacted 12.0 2.0 1.5 19.0 0.183 2500 1100
    150 37/2.3 16.1 2.0 1.5 24.5 0.118 3000 1660
    150 compacted 14.7 2.0 1.5 22.5 0.122 3000 1590
    200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2120
    200 compacted 17.0 2.5 1.7 26.5 0.0915 3000 2130
    250 61/2.3 20.7 2.5 1.8 30.0 0.0722 3000 2710
    250 compacted 19.0 2.5 1.8 28.5 0.0739 3000 2640
    325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3420
    325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3380
    400 61/2.9 26.1 2.5 2.0 34.5 0.0373 3000 4200
    400 compacted 24.1 2.5 2.0 34.5 0.0369 3000 4130
    500 61/3.2 28.8 3.0 2.1 40.0 0.0304 3500 5150
    500 compacted 26.9 3.0 2.1 43.0 0.0308 3500 5160
    600 91/2.9 31.9 3.0 2.3 41.0 0.0369 3500 6230
    600 compacted 29.5 3.0 2.2 38.5 0.0369 3500 6130
    800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 8100
    800 compacted 34.0 3.5 2.5 47.5 0.0231 3500 8150
    1 800 segmental
    compacted
    34.0 3.5 2.5 47.5 0.0231 3500 8150
    1000 127/3.2 41.6 3.5 2.6 54.0 0.0179 3500 10500
    1000 compacted 38.0 3.5 2.6 51.5 0.0185 3500 10200
    1000 segmental
    compacted
    38.0 3.5 2.6 51.5 0.0187 3500 10100
    2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 115
    3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 160
    5.5 7/1.0 3.0 1.0 1.5 13.5 3.4 1500 225
    8 7/1.2 3.6 1.0 1.5 15.0 2.36 1500 290
    8 compacted 3.4 1.0 1.5 14.5 2.34 1500 280
    14 7/1.6 4.8 1.0 1.5 17.5 1.33 2000 440
    14 compactcd 4.4 1.0 1.5 16.5 1.34 2000 425
    22 7/2.0 6.0 1.2 1.5 21.0 0.840 2000 650
    22 compacted 5.5 1.2 1.5 19.5 0.849 2000 620
    38 7/2.6 7.8 1.2 1.5 24.0 0.497 2500 1010
    38 compacted 7.3 1.2 1.5 24.0 0.491 2500 990
    60 19/2.0 10.0 1.5 1.5 31.0 0.309 2500 1590
    60 compacted 9.3 1.5 1.5 29.0 0.311 2500 1540
    100 19/2.6 13.0 2.0 1.5 39.0 0.184 2500 2650
    100 compacted 12.0 2.0 1.5 37.0 0.187 2500 2540
    150 37/2.3 16.1 2.0 1.5 46.0 0.124 3000 3860
    150 compacted 14.7 2.0 1.5 43.0 0.120 3000 3660
    200 37/2.6 18.2 2.5 1.7 53.0 0.0940 3000 4980
    200 compacted 17.0 2.5 1.7 50.0 0.0933 3000 4910
    250 61/2.3 20.7 2.5 1.8 58.0 0.0736 3000 6320
    250 compacted 19.0 2.5 1.8 54.0 0.0754 3000 6040
    325 61/2.6 23.4 2.5 1.9 64.0 0.0576 3000 7930
    325 compacted 21.7 2.5 1.9 60.0 0.0579 3000 7730
    3 2 7/0.6 1.8 0.8 1.5 11.0 9.42 1500 140
    3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 200
    5.5 7/1.0 3.0 1.0 1.5 14.5 3.4 1500 290
    8 7/1.2 3.6 1.0 1.5 16.0 2.36 1500 380
    8 compacted 3.4 1.0 1.5 15.5 2.34 1500 370
    14 7/1.6 4.8 1.0 1.5 18.5 1.33 2000 585
    3 14 compactcd 4.4 1.0 1.5 17.5 1.34 2000 570
    22 7/2.0 6.0 1.2 1.5 22.0 0.840 2000 875
    22 compacted 5.5 1.2 1.5 21.0 0.849 2000 845
    38 7/2.6 7.8 1.2 1.5 26.0 0.497 2500 I 390
    38 compacted 7.3 1.2 1.5 25.0 0.491 2500 I380
    60 19/2.0 10.0 1.5 1.5 33.0 0.309 2500 2180
    60 compacted 9.3 1.5 1.5 31.0 0.311 2500 2140
    100 19/2.6 13.0 2.0 1.5 42.0 0.184 2500 3670
    100 compacted 12.0 2.0 1.5 40.0 0.187 2500 3540
    150 37/2.3 16.1 2.0 1.5 49.0 0.124 3000 5390
    150 compacted 14.7 2.0 1.5 46.0 0.120 3000 5120
    200 37/2.6 18.2 2.5 1.7 57.0 0.0940 3000 6920
    200 compacted 17.0 2.5 1.7 54.0 0.0933 3000 6860
    250 61/2.3 20.7 2.5 1.8 62.0 0.0736 3000 8810
    250 compacted 19.0 2.5 1.8 58.0 0.0754 3000 8500
    325 61/2.6 23.4 2.5 1.9 94.0 0.0576 3000 11200
    325 compacted 21.7 2.5 1.9 65.0 0.0579 3000 10900
    4 2.5 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 170
    3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 250
    5.5 7/1.0 3.0 1.0 1.5 16.0 3.4 1500 360
    8 7/1.2 3.6 1.0 1.5 17.0 2.36 1500 475
    8 compacted 3.4 1.0 1.5 16.5 2.34 1500 465
    14 7/1.6 4.8 1.0 1.5 20.0 1.33 2000 750
    14 compactcd 4.4 1.0 1.5 19.0 1.34 2000 730
    22 7/2.0 6.0 1.2 1.5 24 0.840 2000 1140
    22 compacted 5.5 1.2 1.5 23 0.849 2000 1100
    38 7/2.6 7.8 1.2 1.5 29 0.497 2500 1810
    38 compacted 7.3 1.2 1.5 28 0.491 2500 1800
    60 19/2.0 10.0 1.5 1.5 37 0.309 2500 2860
    60 compacted 9.3 1.5 1.5 35 0.311 2500 2790
    100 19/2.6 13.0 2.0 1.5 47 0.184 2500 4790
    100 compacted 12.0 2.0 1.5 44 0.187 2500 4630
    150 37/2.3 16.1 2.0 1.5 55 0.124 3000 7050
    4 150 compacted 14.7 2.0 1.5 SI 0.120 3000 6710
    200 37/2.6 18.2 2.5 1.7 63 0.0940 3000 9070
    200 compacted 17.0 2.5 1.7 60 0.0933 3000 8990
    250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11600
    250 compacted 19.0 2.5 1.8 65 0.0754 3000 11200
    325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14600
    325 compacted 21.7 2.5 1.9 72 0.0579 3000 14300
