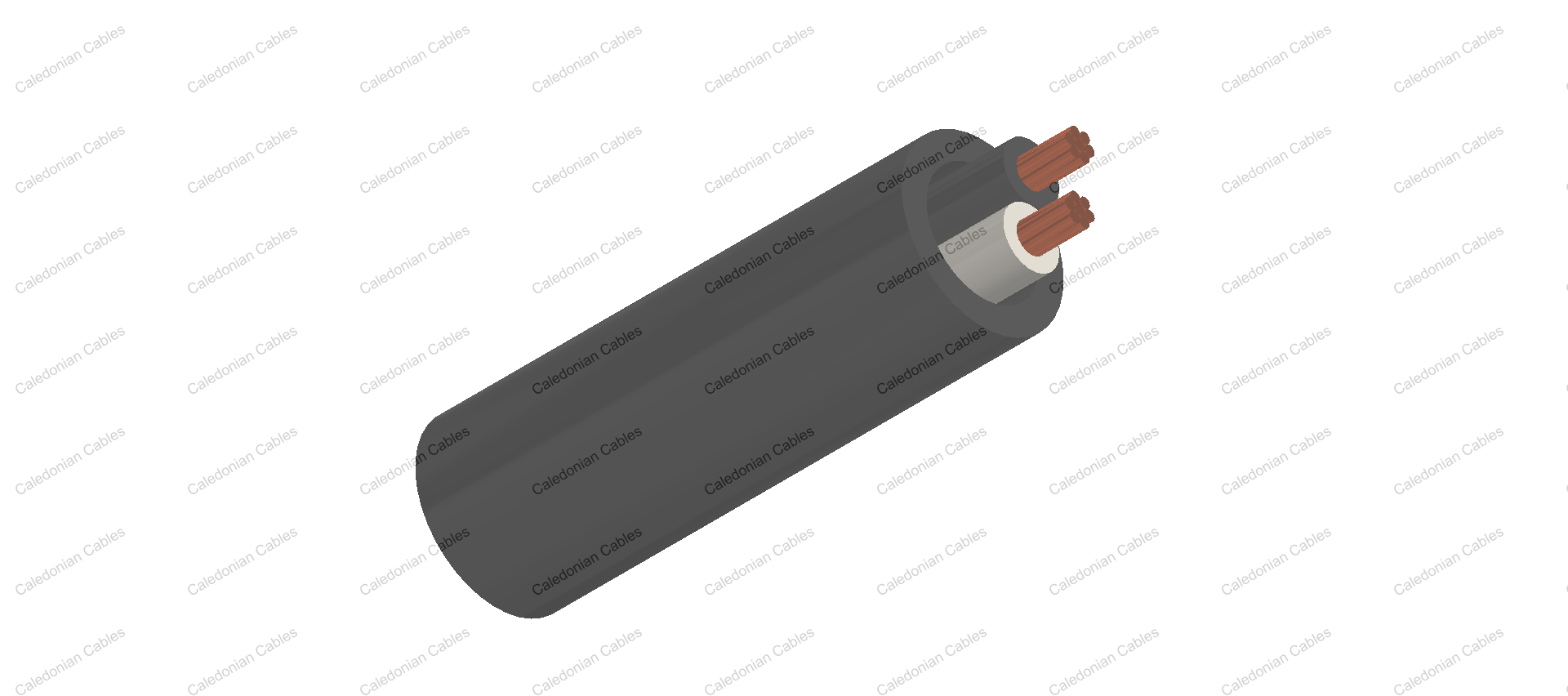

    EE/CE

    Application and Description

    For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

    Name Code

    E : Polyethylene

    C : Cross-linked polyethylene

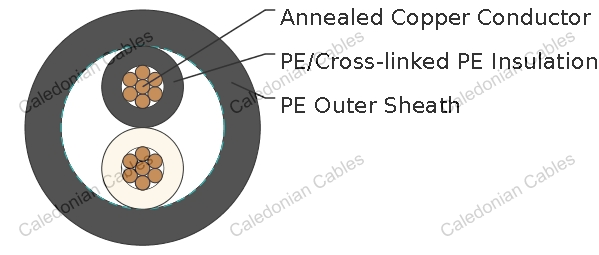

    Cable Construction

    Conductor Circular, circuar or segmental compacted stranded annealed copper wires
    Seperator A proper separator may be applied to a conductor
    Insulation Polyethylene/Cross-linked polyethylene
    Color 2 cores- Black and white
    3 cores- Black, white and red
    4 cores- Black, white, red and green
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Polyethylene (PE), Black color

    Technical Characteristics

    Maximum conductor temperature : 90ºC

    Circuit voltage not exceeding : 600 volts

    Cable Parameter

    No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Test Voltage Maximum DC. resistance of Cdr. at 20ºC Cable weight (approx.)
    mm² mm mm mm mm V Ohm / km kg/km
    1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 50
    3.5 7/0.8 2.4 0.8 1.5 7.0 5.2 1500 65
    5.5 7/1.0 3.0 1.0 1.5 8.0 3.33 1500 90
    8 7/1.2 3.6 1.0 1.5 8.6 2.31 1500 120
    8 compacted 3.4 1.0 1.5 8.4 2.29 1500 120
    14 7/1.6 4.8 1.0 1.5 9.8 1.31 2000 185
    14 compactcd 4.4 1.0 1.5 9.4 1.30 2000 180
    22 7/2.0 6.0 1.2 1.5 11.5 0.824 2000 275
    22 compacted 5.5 1.2 1.5 11.0 0.832 2000 265
    38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 430
    38 compacted 7.3 1.2 1.5 13.0 0.481 2500 430
    60 19/2.0 10.0 1.5 1.5 16.0 0.303 2500 665
    60 compacted 9.3 1.5 1.5 15.5 0.305 2500 655
    100 19/2.6 13.0 2.0 1.5 20.0 0.180 2500 1100
    100 compacted 12.0 2.0 1.5 19.0 0.183 2500 1080
    150 37/2.3 16.1 2.0 1.5 24.5 0.118 3000 1630
    150 compacted 14.7 2.0 1.5 22.5 0.122 3000 1560
    200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2080
    200 compacted 17.0 2.5 1.7 26.5 0.0915 3000 2090
    250 61/2.3 20.7 2.5 1.8 30.0 0.0722 3000 2660
    250 compacted 19.0 2.5 1.8 28.5 0.0739 3000 2600
    325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3360
    325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3330
    400 61/2.9 26.1 2.5 2.0 34.5 0.0373 3000 4l30
    400 compacted 24.1 2.5 2.0 34.5 0.0369 3000 4060
    500 61/3.2 28.8 3.0 2.1 40.0 0.0304 3500 5060
    500 compacted 26.9 3.0 2.1 43.0 0.0308 3500 5080
    600 91/2.9 31.9 3.0 2.3 41.0 0.0369 3500 6140
    600 compacted 29.5 3.0 2.2 38.5 0.0369 3500 6050
    800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 7980
    800 compacted 34.0 3.5 2.5 47.5 0.0231 3500 8060
    1 800 segmental
    compacted
    34.0 3.5 2.5 47.5 0.0231 3500 8060
    1000 127/3.2 41.6 3.5 2.6 54.0 0.0179 3500 10300
    1000 compacted 38.0 3.5 2.6 51.5 0.0185 3500 9980
    1000 segmental
    compacted
    38.0 3.5 2.6 51.5 0.0187 3500 10100
    2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 100
    3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 145
    5.5 7/1.0 3.0 1.0 1.5 13.5 3.4 1500 210
    8 7/1.2 3.6 1.0 1.5 15.0 2.36 1500 270
    8 compacted 3.4 1.0 1.5 14.5 2.34 1500 260
    14 7/1.6 4.8 1.0 1.5 17.5 1.33 2000 415
    14 compactcd 4.4 1.0 1.5 16.5 1.34 2000 405
    22 7/2.0 6.0 1.2 1.5 21.0 0.840 2000 620
    22 compacted 5.5 1.2 1.5 19.5 0.849 2000 595
    38 7/2.6 7.8 1.2 1.5 24.0 0.497 2500 975
    38 compacted 7.3 1.2 1.5 24.0 0.491 2500 965
    60 19/2.0 10.0 1.5 1.5 31.0 0.309 2500 1540
    60 compacted 9.3 1.5 1.5 29.0 0.311 2500 1560
    100 19/2.6 13.0 2.0 1.5 39.0 0.184 2500 2570
    100 compacted 12.0 2.0 1.5 37.0 0.187 2500 2540
    150 37/2.3 16.1 2.0 1.5 46.0 0.124 3000 3770
    150 compacted 14.7 2.0 1.5 43.0 0.120 3000 3570
    200 37/2.6 18.2 2.5 1.7 53.0 0.0940 3000 4860
    200 compacted 17.0 2.5 1.7 50.0 0.0933 3000 4600
    250 61/2.3 20.7 2.5 1.8 58.0 0.0736 3000 6180
    250 compacted 19.0 2.5 1.8 54.0 0.0754 3000 5930
    325 61/2.6 23.4 2.5 1.9 64.0 0.0576 3000 7760
    325 compacted 21.7 2.5 1.9 60.0 0.0579 3000 7570



    3

    2 7/0.6 1.8 0.8 1.5 11.0 9.42 1500 130
    3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 185
    5.5 7/1.0 3.0 1.0 1.5 14.5 3.4 1500 270
    8 7/1.2 3.6 1.0 1.5 16.0 2.36 1500 355
    8 compacted 3.4 1.0 1.5 15.5 2.34 1500 350
    14 7/1.6 4.8 1.0 1.5 18.5 1.33 2000 560
    3 14 compactcd 4.4 1.0 1.5 17.5 1.34 2000 550
    22 7/2.0 6.0 1.2 1.5 22.0 0.840 2000 845
    22 compacted 5.5 1.2 1.5 21.0 0.849 2000 820
    38 7/2.6 7.8 1.2 1.5 26.0 0.497 2500 I350
    38 compacted 7.3 1.2 1.5 25.0 0.491 2500 1350
    60 19/2.0 10.0 1.5 1.5 33.0 0.309 2500 2 130
    60 compacted 9.3 1.5 1.5 31.0 0.311 2500 2 090
    100 19/2.6 13.0 2.0 1.5 42.0 0.184 2500 3 580
    100 compacted 12.0 2.0 1.5 40.0 0.187 2500 3460
    150 37/2.3 16.1 2.0 1.5 49.0 0.124 3000 5270
    150 compacted 14.7 2.0 1.5 46.0 0.120 3000 5030
    200 37/2.6 18.2 2.5 1.7 57.0 0.0940 3000 6790
    200 compacted 17.0 2.5 1.7 54.0 0.0933 3000 6740
    250 61/2.3 20.7 2.5 1.8 62.0 0.0736 3000 8670
    250 compacted 19.0 2.5 1.8 58.0 0.0754 3000 8360
    325 61/2.6 23.4 2.5 1.9 94.0 0.0576 3000 11000
    325 compacted 21.7 2.5 1.9 65.0 0.0579 3000 10700
    4 2.5 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 160
    3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 230
    5.5 7/1.0 3.0 1.0 1.5 16.0 3.4 1500 340
    8 7/1.2 3.6 1.0 1.5 17.0 2.36 1500 450
    8 compacted 3.4 1.0 1.5 16.5 2.34 1500 480
    14 7/1.6 4.8 1.0 1.5 20.0 1.33 2000 765
    14 compactcd 4.4 1.0 1.5 19.0 1.34 2000 705
    22 7/2.0 6.0 1.2 1.5 24 0.840 2000 1100
    22 compacted 5.5 1.2 1.5 23 0.849 2000 1070
    38 7/2.6 7.8 1.2 1.5 29 0.497 2500 1760
    38 compacted 7.3 1.2 1.5 28 0.491 2500 1760
    60 19/2.0 10.0 1.5 1.5 37 0.309 2500 2790
    60 compacted 9.3 1.5 1.5 35 0.311 2500 2730
    100 19/2.6 13.0 2.0 1.5 47 0.184 2500 4680
    100 compacted 12.0 2.0 1.5 44 0.187 2500 4530
    150 37/2.3 16.1 2.0 1.5 55 0.124 3000 6900
    4 150 compacted 14.7 2.0 1.5 SI 0.120 3000 6 600
    200 37/2.6 18.2 2.5 1.7 63 0.0940 3000 8900
    200 compacted 17.0 2.5 1.7 60 0.0933 3000 8850
    250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11400
    250 compacted 19.0 2.5 1.8 65 0.0754 3000 11000
    325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14400
    325 compacted 21.7 2.5 1.9 72 0.0579 3000 14100
