    CVV

    • CVV, JIS C 3401 Standard Industrial Cables
    • CVV, JIS C 3401 Standard Industrial Cables

    Application and Description

    For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

    Name Code

    C : For control

    V : Vinyl

    V : Vinyl

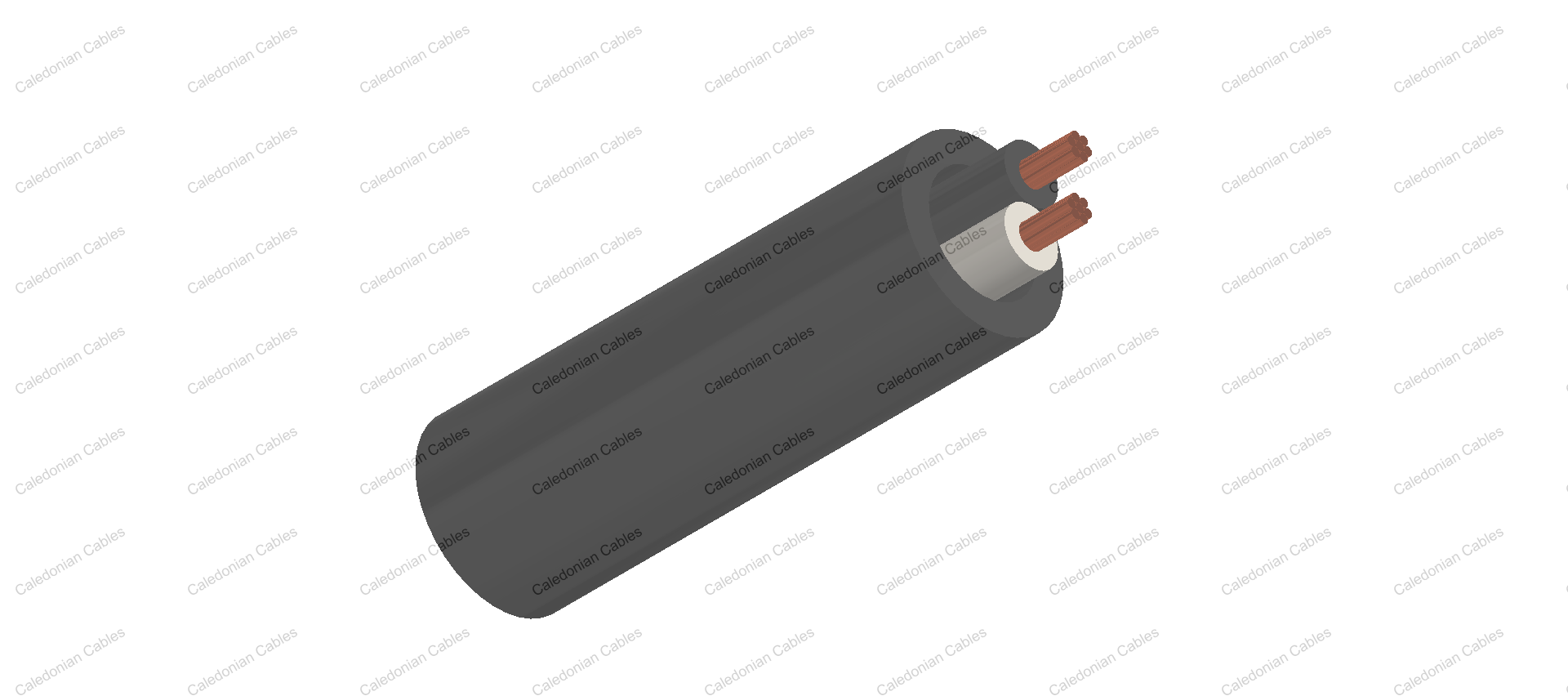

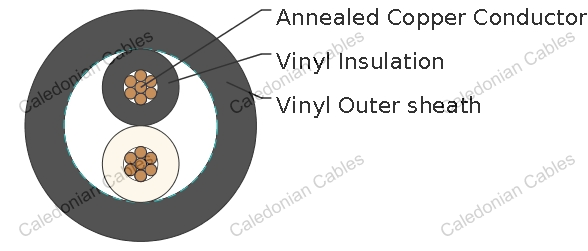

    Cable Construction

    Conductor Circular or compacted circuar stranded annealed copper wires
    Seperator A proper separator may be applied to a conductor
    Insulation Vinyl
    Color 2 cores- Black and white
    3 cores- Black, white and red
    4 cores- Black, white, red and green
    More than 4 cores : Black core with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Vinyl, Black color

    Technical Characteristics

    Maximum conductor temperature : 90°C

    Circuit voltage not exceeding : 600 volts

    Test voltage : 2000 volts

    Cable Parameter

    No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20º C Cable weight (approx.)
    mm² mm mm mm mm Ohm / km kg/km
    2 1.25 7/0.45 1.35 0.8 1.5 9.4 16.8 100
    2 7/0.6 1.8 0.8 1.5 10.5 9.42 130
    3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 175
    5.5 7/1.0 3 1 1.5 )3.5 3.4 245
    8 7/1.2 3.6 1.2 1.5 15.5 2.36 335
    8 compacted 3.4 1.2 1.5   2.34 325
    14 7/1.6 4.8 1.4 1.5 19 1.33 520
    14 compacted 4.4 1.4 1.5 18 1.34 500
    22 7/2.0 6 1.6 1.6 23 0.84 760
    22 compacted 5.5 1.6 1.5 21 0.849 715
    3 1.25 7/0.45 1.35 0.8 1.5 9.9 16.8 120
    2 71'0.6 1.8 0.8 1.5 11 9.42 160
    3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 220
    5.5 7/1.0 3 1 1.5 14.5 3.4 320
    8 7/1.2 3.6 1.2 1.5 16.5 2.36 440
    8 compacted 3.4 1.2 1.5 16 2.34 425
    14 7/1.6 4.8 1.4 1.5 20 1.33 690
    14 compacted 4.4 1.4 1.5 19 1.34 665
    22 7/2.0 6 1.6 1.6 24 0.84 1020
    22 compacted 5.5 1.6 1.6 23 0.849 975
    4 1.25 71'0.45 1.35 0.8 1.5 11 16.8 145
    2 7/0.6 1.8 0.8 1.5 12 9.42 195
    3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 275
    5.5 7/1.0 3 1 1.5 16 3.4 400
    8 7/1.2 3.6 1.2 1.5 18 2.36 555
    8 compacted 3.4 1.2 1.5 17.5 2.34 535
    14 7/1.6 4.8 1.4 1.6 22 1.33 890
    14 compacted 4.4 1.4 1.5 2 1 1.34 855
    22 7/2.0 6 1.6 1.7 27 0.84 1320
    22 compacted 5.5 1.6 1.7 25 0.849 1260
    5 1.25 7/0.45 1.35 0.8 1.5 11.5 16.8 170
    2 7/0.6 1.8 0.8 1.5 13 9.42 230
    3.5 71'0.8 2.4 0.8 1.5 14.5 5.3 330
    5.5 7/1.0 3 1 1.5 17 3.4 485
    8 7/1.2 3.6 1.2 1.5 20 2.36 675
    8 compacted 3.4 1.2 1.5 19.5 2.34 655
    14 7/1.6 4.8 1.4 1.6 25 1.33 1090
    14 compacted 4.4 1.4 1.6 24 1.34 1060
    6 1.25 7/0.45 1.35 0.8 1.5 12.5 16.8 200
    2 7/0.6 1.8 0.8 1.5 14 9.42 270
    3.5 7/0.8 2.4 0.8 1.5 15.5 5.3 390
    5.5 7/1.0 3 1 1.5 18.5 3.4 570
    8 7/1.2 3.6 1.2 1.5 22 2.36 800
    8 compacted 3.4 1.2 1.5 21 2.34 775
    14 7/1.6 4.8 1.4 1.7 27 1.33 1310
    14 compacted 4.4 1.4 1.7 26 1.34 1270
    7 1.25 7/0.45 1.35 0.8 1.5 12.5 16.8 215
    2 7/0.6 1.8 0.8 1.5 14 9.42 295
    3.5 7/0.8 2.4 0.8 1.5 15.5 5.3 425
    5.5 7/1.0 3 1 1.5 18.5 3.4 630
    8 7/1.2 3.6 1.2 1.5 22 2.36 885
    8 compacted 3.4 1.2 1.5 21 2.34 860
    8 1.25 7/0.45 1.35 0.8 1.5 13.5 16.8 240
    2 7/0.6 1.8 0.8 1.5 15 9.42 335
    3.5 7/0.8 2.4 0.8 1.5 17 5.3 485
    5.5 7/1.0 3 1 1.5 20 3.4 720
    8 7/1.2 3.6 1.2 1.6 24 2.36 1030
    8 compacted 3.4 1.2 1.6 23 2.34 995
    10 1.25 7/0.45 1.35 0.8 1.5 15.5 16.8 305
    2 7/0.6 1.8 0.8 1.5 17.5 9.42 425
    3.5 7/0.8 2.4 0.8 1.5 19.5 5.3 620
    5.5 7/1.0 3 1 1.6 24 3.4 930
    8 7/1.2 3.6 1.2 1.8 29 2.36 1340
    8 compacted 3.4 1.2 1.7 28 2.34 1290
    12 1.25 7/0.45 1.35 0.8 1.5 16 16.8 345
    2 7/0.6 1.8 0.8 1.5 18 9.42 480
    3.5 7/0.8 2.4 0.8 1.5 21 5.3 705
    5.5 7/1.0 3 1 1.7 25 3.4 1080
    8 7/1.2 3.6 1.2 1.8 29 2.36 1540
    8 compacted 3.4 1.2 1.8   2.34 1490
    15 1.25 7/0.45 1.35 0.8 1.5 17 16.8 405
    2 7/0.6 1.8 0.8 1.5 19 9.42 575
    3.5 7/0.8 2.4 0.8 1.5 22 5.3 855
    5.5 7/1.0 3 1 1.7 27 3.4 1310
    20 1.25 7/0.45 1.35 0.8 1.5 19 16.8 515
    2 7/0.6 1.8 0.8 1.5 22 9.42 735
    3.5 7/0.8 2.4 0.8 1.6 25 5.3 1120
    5.5 7/1.0 3 1 1.9 31 3.4 1720
    30 1.25 7/0.45 1.35 0.8 L.6 23 16.8 750
    2 7/0.6 1.8 0.8 1.7 26 9.42 1100
    3.5 7/0.8 2.4 0.8 1.8 30 5.3 1660
