    H07RN8-F

    Application and Description

    These cables particularly for use in fresh water up to 10 m depth with a maximum water temperature up to 40°C , such as the connection of submersible pumps or similar applications. Not suitable for underwater power transmission or installation in a watercourse, or where it is possible that mechanical damage might occur and cause a hazard.

    Indirect underground installation is allowed provided that there is mechanically protection of the cables. These cables are manufactured according to the Standard and Approval CEI 20-19/16 (CENELEC HD 22.16).

    It is the only cable that the installation Standard and Approval CEI 64-8 at section 702 allows for installation in swimming pools and fountains. For connections liable to moderate mechanical stresses, i.e. industrial or agricultural workshop apparatus, large boilers, heater plates, electric tools such as drills and disk saws, electric appliances, portable motors and generators on building sites;also for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc.

    Suitable for applications up to 1000 V for adequately protected fixed installations ( i.e. inside pipes or equipment) as well as for rotor connections to lifting apparatus motors. They are Ozone, UV & weather resistant.

    Standard and Approval

    CEI 20-19 p.16

    CE low voltage directive 73/23/EEC & 93/68/EEC

    ROHS compliant

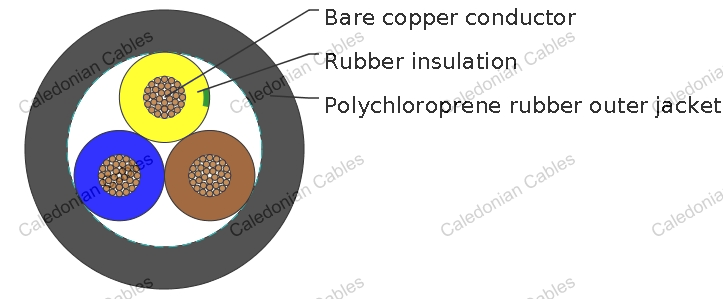

    Cable Construction

    Fine bare copper strands

    Strands to VDE-0295 Class-5, IEC 60228 Class-5

    Rubber core insulation EI4 to VDE-0282 Part-1

    Color code VDE-0293-308 and HD 186

    Polychloroprene rubber (neoprene) jacket EM2

    Technical Characteristics

    Working voltage 450/750 volts
    Test voltage 2500 volts
    Flexing bending radius 6.0 x Ø
    Fixed bending radius 4.0 x Ø
    Flexing Temperature -25°C to +60°C
    Fixed Temperature -40°C to +60°C
    Max Water Temperature +40°C
    Short circuit temperature +250°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm mm(min-max) kg/km kg/km
    17(32/32) 2 x 1 0.8 1.3 7.7-10 19 89
    17(32/32) 3 x 1 0.8 1.4 8.3-10.7 29 111
    17(32/32) 4 x 1 0.8 1.5 9.2-11.9 38 146
    16(30/30) 1 x 1.5 0.8 1.4 5.7-7.1 14.4 59
    16(30/30) 2 x 1.5 0.8 1.5 8.5-11.0 29 135
    16(30/30) 3 x 1.5 0.8 1.6 9.2-11.9 43 165
    16(30/30) 4 x 1.5 0.8 1.7 10.2-13.1 58 200
    16(30/30) 5 x 1.5 0.8 1.8 11.2-14.4 72 240
    16(30/30) 7 x 1.5 0.8 2.6 14.5-17.5 101 385
    16(30/30) 12 x 1.5 0.8 2.9 17.6-22.4 173 516
    16(30/30) 19 x 1.5 0.8 3.2 20.7-26.3 274 800
    16(30/30) 24 x 1.5 0.8 3.5 24.3-30.7 346 882
    14(50/30) 1 x 2.5 0.9 1.4 6.3-7.9 24 72
    14(50/30) 2 x 2.5 0.9 1.7 10.2-13.1 48 195
    14(50/30) 3 x 2.5 0.9 1.8 10.9-14.0 72 235
    14(50/30) 4 x 2.5 0.9 1.9 12.1-15.5 96 290
    14(50/30) 5 x 2.5 0.9 2 13.3-17.0 120 345
    14(50/30) 7 x 2.5 0.9 2.8 16.5-20.0 168 520
    14(50/30) 12 x 2.5 0.9 3.1 20.6-26.2 288 810
    14(50/30) 19 x 2.5 0.9 3.5 25.5-31.0 456 1200
    14(50/30) 24 x 2.5 0.9 3.9 28.8-36.4 576 1650
    12(56/28) 1 x 4 1 1.5 7.2-9.0 38 99
    12(56/28) 2 x 4 1 1.8 11.8-15.1 77 270
    12(56/28) 3 x 4 1 1.9 12.7-16.2 115 320
    12(56/28) 4 x 4 1 2 14.0-17.9 154 395
    12(56/28) 5 x 4 1 2.2 15.6-19.9 192 485
    12(56/28) 7 x 4 1 3.1 18.2-21.8 269 681
    10(84/28) 1 x 6 1 1.6 7.9-9.8 58 130
    10(84/28) 3 x 6 1 2.1 14.1-18.0 173 495
    10(84/28) 4 x 6 1 2.3 15.7-20.0 230 610
    10(84/28) 5 x 6 1.2 3.6 17.5-22.2 288 760
    8(80/26) 1 x 10 1.2 1.8 9.5-11.9 96 230
    8(80/26) 3 x 10 1.2 3.3 19.1-24.2 288 880
    8(80/26) 4 x 10 1.2 3.4 20.9-26.5 384 1060
    8(80/26) 5 x 10 1.2 3.6 22.9-29.1 480 1300
    6(128/26) 1 x 16 1.2 1.9 10.8-13.4 154 320
    6(128/26) 3 x 16 1.2 3.5 21.8-27.6 461 1090
    6(128/26) 4 x 16 1.2 3.6 23.8-30.1 614 1345
    6(128/26) 5 x 16 1.2 3.9 26.4-33.3 768 1680
    4(200/26) 1 x25 1.4 2 12.7-15.8 240 450
    4(200/26) 4 x 25 1.4 4.1 28.9-36.6 960 1995
    4(200/26) 5 x 25 1.4 4.4 32.0-40.4 1200 2470
    2 (280/26) 1 x 35 1.4 2.2 14.3-17.9 336 605
    2 (280/26) 3 x 35 1.4 4.1 29.3-37.1 1008 1900
    2 (280/26) 4 x 35 1.4 4.4 32.5-41.1 1344 2645
    2 (280/26) 5 x 35 1.4 4.7 37.0-45.0 1680 2810
    1(400/26) 1 x 50 1.6 2.4 16.5-20.6 480 825
    1(400/26) 4 x 50 1.6 4.8 37.7-47.5 1920 3635
    1(400/26) 5 x 50 1.6 5.1 40.0-50.8 2400 4050
    2/0(356/24) 1 x 70 1.6 2.6 18.6-23.3 672 1090
    2/0(356/24) 4 x 70 1.6 5.2 42.7-54.0 2688 4830
    3/0(485/24) 1 x 95 1.8 2.8 20.8-26.0 912 1405
    3/0(485/24) 4 x 95 1.8 5.9 48.4-61.0 3648 6320
    4/0(614/24) 1x 120 1.8 3 22.8-28.6 1152 1746
    4/0(614/24) 4 x 120 1.8 6 53.0-66.0 4608 6830
    300 MCM (765/24) 1 x 150 2 3.2 25.2-31.4 1440 1887
    300 MCM (765/24) 4 x 150 2 6.4 58.0-73.0 5760 8320
    350 MCM (944/24) 1 x 185 2.2 3.4 27.6-34.4 1776 2274
    350 MCM (944/24) 4 x 185 2.2 6.8 64.0-80.0 7104 9800
    500 MCM (1221/24) 1x 240 2.4 3.5 30.6-38.3 23.4 2956
    500 MCM (1221/24) 4x 240 2.4 7.2 72.0-90.0 9216 12100
    - 1 x 300 2.6 3.6 33.5-41.9 2880 3479
