    H07BN4-F WIND90

    Application and Description

    These cables are made with synthetic rubbers having an excellent temperature resistance and can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under medium mechanical stress, for example power supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such as drilling machines, disk saws, portable engines and machines, building and farming equipments etc.

    These cables are also suitable for stationary equipments, for example designed for wind-tower application, the particular conductor Cable Construction and the used materials have improved the cable torsion resistance (max 150°/m), key requirement for drop cables in windgenerators, on plaster in temporary buildings and builders huts, and wiring in machinery elevators or similar.

    Suitable for caravans and camping equipment. Especially recommended for service temperature up to 90oC together with good resistance to hot grease and oil. Therefore these cables are ideal for use in plants and industries dealing with grease, oil or oil emulsion treatments, transformation or handling.

    Standard and Approval

    CEI 20-19 p.12

    CEI 20-35 (EN 60332-1)

    IEMMEQU HAR IEC 60245-4

    IEC 60754-1/2

    ROHS compliant

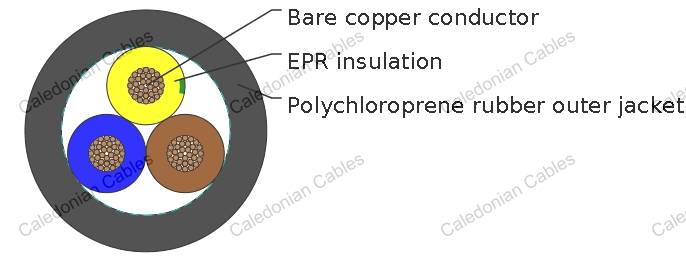

    Cable Construction

    Fine bare copper strands

    Strands to VDE-0295 Class-5, IEC 60228 Class-5

    EPR(Ethylene Propylene Rubber) rubber EI7 insulation

    Color code VDE-0293-308

    Special polychloroprene rubber outer jacket EM7

    Technical Characteristics

    Working voltage 450/750 volts
    Test voltage 2500 volts
    Flexing bending radius 6.0 × Ø
    Fixed bending radius 4.0 × Ø
    Temperature Range -40°C to +90°C
    Wind energy -15°C to +90°C
    Maximum Short Circuit Temperature +250°C
    Flame retardant IEC 60332.1C2/NF C 32-070
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
    # × mm² mm mm mm kg/km
    17(32/32) 2 x 1 0.8 1.3 8.2 93
    17(32/32) 3 x 1 0.8 1.4 8.9 114
    17(32/32) 4 x 1 0.8 1.5 9.8 139
    16(30/30) 1 x 1.5 0.8 1.4 5.9 50
    16(30/30) 2 x 1.5 0.8 1.5 9.3 118
    16(30/30) 3 x 1.5 0.8 1.6 10.0 144
    16(30/30) 4 x 1.5 0.8 1.7 11.0 177
    16(30/30) 5 x 1.5 0.8 1.8 12.1 226
    16(30/30) 7 x 1.5 0.8 2.6 14.7 385
    16(30/30) 12 x 1.5 0.8 2.9 18.8 516
    16(30/30) 19 x 1.5 0.8 3.2 22.0 800
    16(30/30) 24 x 1.5 0.8 3.5 25.7 882
    14(50/30) 1 x 2.5 0.9 1.4 6.5 65
    14(50/30) 2 x 2.5 0.9 1.7 10.9 172
    14(50/30) 3 x 2.5 0.9 1.8 11.7 210
    14(50/30) 4 x 2.5 0.9 1.9 12.8 257
    14(50/30) 5 x 2.5 0.9 2 14.1 329
    14(50/30) 7 x 2.5 0.9 2.8 17.1 445
    14(50/30) 12 x 2.5 0.9 3.1 22.1 702
    14(50/30) 19 x 2.5 0.9 3.5 26.0 1030
    14(50/30) 24 x 2.5 0.9 3.9 30.4 1312
    12(56/28) 1 x 4 1 1.5 7.4 89
    12(56/28) 2 x 4 1 1.8 12.6 238
    12(56/28) 3 x 4 1 1.9 13.5 292
    12(56/28) 4 x 4 1 2 14.8 359
    12(56/28) 5 x 4 1 2.2 16.3 422
    12(56/28) 7 x 4 1 3.1 19.6 618
    10(84/28) 1 x 6 1 1.6 8.1 115
    10(84/28) 2 x 6 1 1.8 13.8 282
    10(84/28) 3 x 6 1 2.1 14.8 355
    10(84/28) 4 x 6 1 2.3 16.4 449
    10(84/28) 5 x 6 1.2 3.6 18.1 567
    8(80/26) 1 x 10 1.2 1.8 10.4 190
    8(80/26) 2 x 10 1.2 2.3 19.4 539
    8(80/26) 3 x 10 1.2 3.3 20.7 674
    8(80/26) 4 x 10 1.2 3.4 22.6 833
    8(80/26) 5 x 10 1.2 3.6 24.8 1010
    6(128/26) 1 x 16 1.2 1.9 11.6 259
    6(128/26) 2 x 16 1.2 2.8 21.8 722
    6(128/26) 3 x 16 1.2 3.5 23.3 913
    6(128/26) 4 x 16 1.2 3.6 25.4 1138
    6(128/26) 5 x 16 1.2 3.9 28.1 1400
    4(200/26) 1 x25 1.4 2 13.7 375
    4(200/26) 2 x 25 1.4 3.3 25.9 1043
    4(200/26) 4 x 25 1.4 4.1 30.8 1714
    4(200/26) 5 x 25 1.4 4.4 33.9 2096
    2(280/26) 1 x 35 1.4 2.2 15.4 492
    2(280/26) 3 x 35 1.4 4.1 31.0 1745
    2(280/26) 4 x 35 1.4 4.4 34.3 2204
    2(280/26) 5 x 35 1.4 4.7 39.6 2810
    1(400/26) 1 x 50 1.6 2.4 17.7 675
    1(400/26) 3 x 50 1.6 3.6 35.8 2409
    1(400/26) 4 x 50 1.6 4.8 39.6 3029
    1(400/26) 5 x 50 1.6 5.1 44.1 4050
    2/0(356/24) 1 x 70 1.6 2.6 20.0 908
    2/0(356/24) 3 x 70 1.6 4.2 40.5 3211
    2/0(356/24) 4 x 70 1.6 5.2 44.9 4121
    3/0(485/24) 1 x 95 1.8 2.8 22.1 1171
    3/0(485/24) 3 x 95 1.8 4.8 45.1 4210
    3/0(485/24) 4 x 95 1.8 5.9 50.4 5361
    4/0(614/24) 1x 120 1.8 3 24.5 1445
    4/0(614/24) 3 x 120 1.8 4.8 49.9 5205
    4/0(614/24) 4 x 120 1.8 6 55.3 6546
    300 MCM (765/24) 1 x 150 2 3.2 26.9 1783
    300 MCM (765/24) 3 x 150 2  5.2  54.8 6389
    300 MCM (765/24) 4 x 150 2  6.4  60.9 8095
    350 MCM (944/24) 1 x 185 2.2 3.4 28.9 2125
    350 MCM (944/24) 4 x 185 2.2  6.8  65.7 9652
    500 MCM (1221/24) 1x 240 2.4 3.5 32.6 2733
    500 MCM (1221/24) 4x 240 2.4  7.2  75.5 12614
    - 1 x 300 2.6 3.6 36.5 3348
