    H05Z-U/H07Z-U/H07Z-R

    Application and Description

    These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts.

    Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment.

    The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

    Standard and Approval

    CEI 20-19/9

    CEI 20-35 (EN60332-1) / CEI 30-37 (EN50267)

    CENELEC HD 22.9

    EN50265-2-2

    EN50265-2-1

    CE Low Voltage Directive 73/23/EEC and 93/68/EEC

    ROHS compliant

    Cable Construction

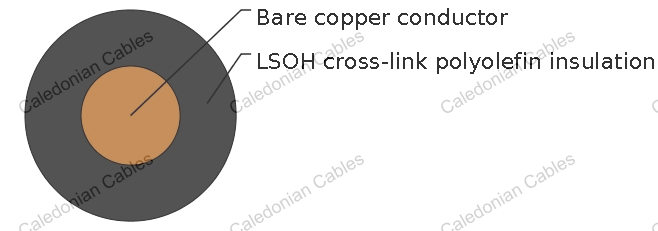

    Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U)

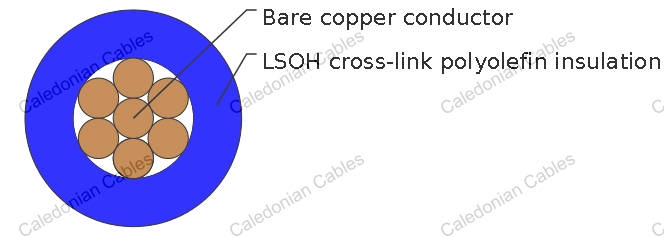

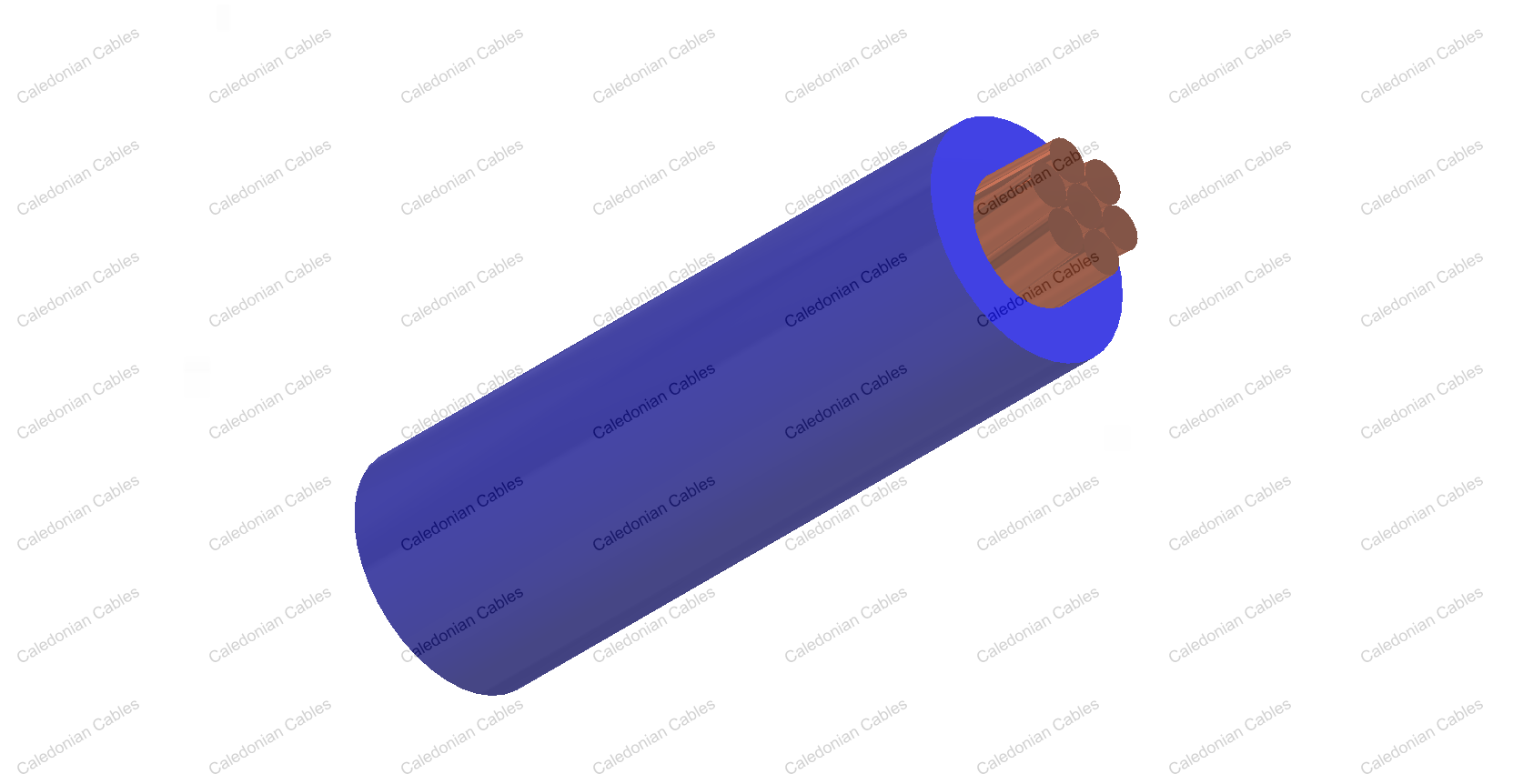

    Bare copper strands to IEC 60228 Cl-2 (H07Z-R)

    Cross-link polyolefin EI5 core insulation

    Cores to VDE-0293 colors

    LSOH - low smoke, zero halogen

    Technical Characteristics

    Working voltage 300/500v (H05Z-U), 450/750v (H07Z-U / H07Z-R)
    Test voltage 2500 volts
    Flexing bending radius 15 x Ø
    Static bending radius 10 x Ø
    Flexing temperature +5°C to +90°C
    Short circuit temperature +250°C
    Flame retardant IEC 60332.1
    Insulation resistance 10 MΩ × km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm kg/km kg/km
    H05Z-U
    20 1 x 0.5 0.6 2.0 4.8 8
    18 1 x 0.75 0.6 2.2 7.2 12
    17 1 x 1 0.6 2.3 9.6 14
    H07Z-U
    16 1 x 1.5 0,7 2.8 14.4 20
    14 1 x 2.5 0,8 3.3 24 30
    12 1 x 4 0,8 3.8 38 45
    10 1 x 6 0,8 4.3 58 65
    8 1 x 10 1,0 5.5 96 105
    H07Z-R
    16(7/24) 1 x 1.5 0.7 3.0 14.4 21
    14(7/22) 1 x 2.5 0.8 3.6 24 33
    12(7/20) 1 x 4 0.8 4.1 39 49
    10(7/18) 1 x 6 0.8 4.7 58 71
    8(7/16) 1 x 10 1 6.0 96 114
    6(7/14) 1 x 16 1 6.8 154 172
    4(7/12) 1 x 25 1.2 8.4 240 265
    2(7/10) 1 x 35 1.2 9.3 336 360
    1(19/13) 1 x 50 1.4 10.9 480 487
    2/0(19/11) 1 x 70 1.4 12.6 672 683
    3/0(19/10) 1 x 95 1.6 14.7 912 946
    4/0(37/12) 1 x 120 1.6 16.0 1152 1174
    300MCM(37/11) 1 x 150 1.8 17.9 1440 1448
    350MCM(37/10) 1 x 185 2.0 20.0 1776 1820
    500MCM(61/11) 1 x 240 2.2 22.7 2304 2371
