    H05VVH6-F/H07VVH6-F

    Application and Description

    The cables are used for applications with medium mechanical stresses and sharp bending in one place. They are suitable for use in dry, damp and wet rooms as power and control cable, especially on hoisting equipment, handling systems, machine tools, etc.

    Standard and Approval

    HD 359 S3

    CEI 20-25

    CEI 20-35

    CEI 20-52

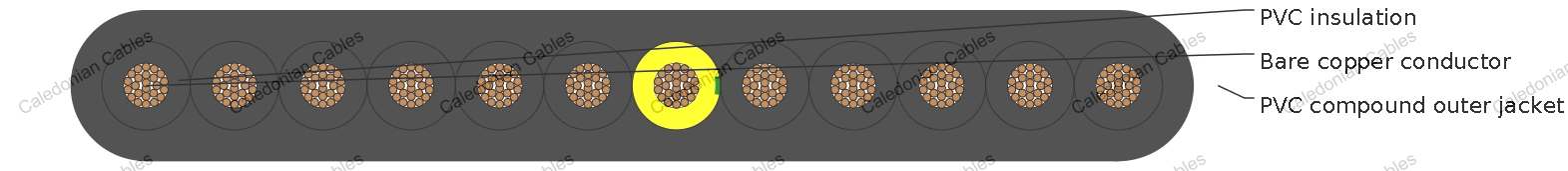

    Cable Construction

    Fine bare or tinned copper strands

    Strands to VDE-0295 Class-5, IEC 60228 Class-5

    PVC compound insulation TI2 to VDE 0207 part 4

    Color coded to VDE-0293-308

    PVC compound outer jacket TM2 to VDE 0207 part 5

    Technical Characteristics

    Working voltage H05VVH6-F 300/500 V
    H07VVH6-F 450/700 V
    Test voltage H05VVH6-F 2 KV
    H07VVH6-F 2.5 KV
    Bending radius 10 × cable Ø
    Flexing temperature - 5°C to + 70°C
    Static temperature -40°C to +70°C
    Flame retardant Test class B according to VDE 0472 part 804, IEC 60332-1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Conductor Diameter Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm mm kg/km kg/km
    H05VVH6-F
    18(24/32) 4 x 0.75 1.2 0.6 4.2 x 12.6 29 90
    18(24/32) 8x 0.75 1.2 0.6 4.2 x 23.2 58 175
    18(24/32) 12x 0.75 1.2 0.6 4.2 x 33.8 86 260
    18(24/32) 18x 0.75 1.2 0.6 4.2 x 50.2 130 380
    18(24/32) 24x 0.75 1.2 0.6 4.2 x 65.6 172 490
    17(32/32) 4 x 1.00 1.4 0.7 4.4 x 13.4 38 105
    17(32/32) 5×1.00 1.4 0.7 4.4 x 15.5 48 120
    17(32/32) 8 x 1.00 1.4 0.7 4.4 x 24.8 77 205
    17(32/32) 12x 1.00 1.4 0.7 4.4 x 36.2 115 300
    17(32/32) 18x 1.00 1.4 0.7 4.4 x 53.8 208 450
    17(32/32) 24x 1.00 1.4 0.7 4.4 x 70.4 230 590
    H07VVH6-F
    16(30/30) 4 x1.5 1.5 0.8 5.1 x 14.8 130 58
    16(30/30) 5 x1.5 1.5 0.8 5.1 x 17.7 158 72
    16(30/30) 7 x1.5 1.5 0.8 5.1 x 25.2 223 101
    16(30/30) 8 x1.5 1.5 0.8 5.1 x 27.3 245 115
    16(30/30) 10 x1.5 1.5 0.8 5.1 x 33.9 304 144
    16(30/30) 12 x1.5 1.5 0.8 5.1 x 40.5 365 173
    16(30/30) 18 x1.5 1.5 0.8 6.1 x 61.4 628 259
    16(30/30) 24 x1.5 1.5 0.8 5.1 x 83.0 820 346
    14(50/30) 4 x2.5 1.9 0.8 5.8 x 18.1 192 96
    14(50/30) 5 x2.5 1.9 0.8 5.8 x 21.6 248 120
    14(50/30) 7 x2.5 1.9 0.8 5.8 x 31.7 336 168
    14(50/30) 8 x2.5 1.9 0.8 5.8 x 33.7 368 192
    14(50/30) 10 x2.5 1.9 0.8 5.8 x 42.6 515 240
    14(50/30) 12 x2.5 1.9 0.8 5.8 x 49.5 545 288
    14(50/30) 24 x2.5 1.9 0.8 5.8 x 102.0 1220 480
    12(56/28) 4 x4 2.5 0.8 6.7 x 20.1 154 271
    12(56/28) 5 x4 2.5 0.8 6.9 x 26.0 192 280
    12(56/28) 7 x4 2.5 0.8 6.7 x 35.5 269 475
    10(84/28) 4 x6 3.0 0.8 7.2 x 22.4 230 359
    10(84/28) 5 x6 3.0 0.8 7.4 x 31.0 288 530
    10(84/28) 7 x6 3.0 0.8 7.4 x 43.0 403 750
    8(80/26) 4 x10 4.0 1.0 9.2 x 28.7 384 707
    8(80/26) 5 x10 4.0 1.0 11.0 x 37.5 480 1120
    6(128/26) 4 x16 5.6 1.0 11.1 x 35.1 614 838
    6(128/26) 5 x16 5.6 1.0 11.2 x 43.5 768 1180
