    H05BQ-F/H07BQ-F(NGMH11YÖ)

    Application and Description

    These cables are used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due to its contact with hot surfaces.

    The cable can also be used in electrical appliances such as drills, hand-held circular saws as well as in building sites and refrigeration plants.

    H07BQ-F can commonly be found in other machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion, notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation, hydrolysis and microbes. Common European designation is NGMH11YÖ.

    Standard and Approval

    CEI 20-19 p.10, HD22.10 S1, IEC 60245-4

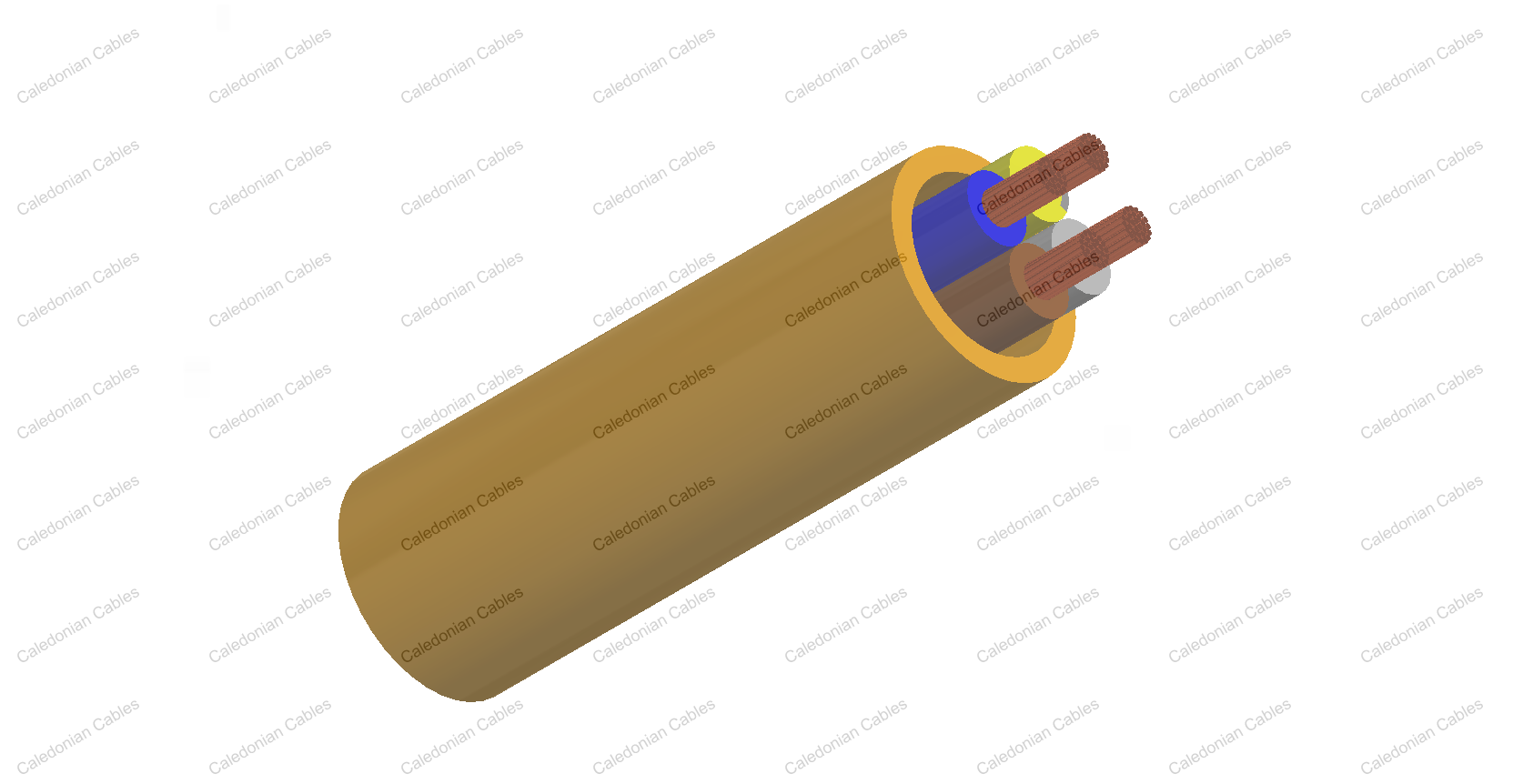

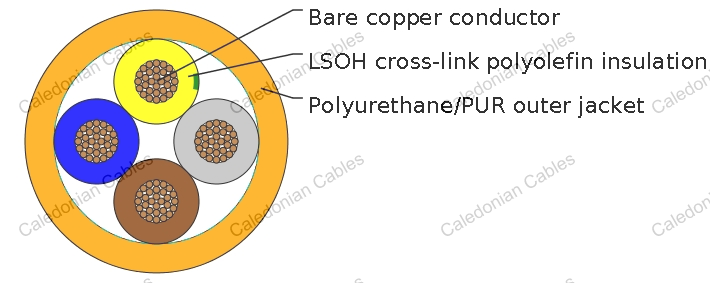

    Cable Construction

    Fine bare or tinned copper strands

    Strands to VDE-0295 Class-5, IEC 60228 and HD383 Class-5

    Rubber compound insulation EI6 to VDE-0282 Part-1

    Color coded to VDE-0293-308

    Conductors stranded in layers with optimal lay-length

    Green-yellow earth core in the outer layer

    Polyurethane/PUR outer jacket TMPU- orange (RAL 2003)

    Technical Characteristics

    Working voltage : 300/500 volts(H05BQ-F), 450/750 volts(H07BQ-F)

    Test voltage : 2000 volts(H05BQ-F), 2500 volts(H07BQ-F)

    Flexing bending radius : 5 x Ø

    Fixed bending radius : 3 x Ø

    Flexing Temperature : -40º C to +80º C

    Fixed Temperature : -50º C to +90º C

    Short circuit Temperature : +250º C

    Flame retardant : IEC 60332.1

    Insulation resistance : 20 MΩ x km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm mm kg/km kg/km
    H05BQ-F
    18(24/32) 2 x 0.75 0.6 0.8 5.7 - 7.4 14.4 52
    18(24/32) 3 x 0.75 0.6 0.9 6.2 - 8.1 21.6 63
    18(24/32) 4 x 0.75 0.6 0.9 6.8 - 8.8 29 80
    18(24/32) 5 x 0.75 0.6 1.0 7.6 - 9.9 36 96
    17(32/32) 2 x 1 0.6 0.9 6.1 - 8.0 19.2 59
    17(32/32) 3 x 1 0.6 0.9 6.5 - 8.5 29 71
    17(32/32) 4 x 1 0.6 0.9 7.1 - 9.3 38.4 89
    17(32/32) 5 x 1 0.6 1.0 8.0 - 10.3 48 112
    H07BQ-F
    16(30/30) 2 x 1.5 0.8 1.0 7.6 - 9.8 29 92
    16(30/30) 3 x 1.5 0.8 1.0 8.0 - 10.4 43 109
    16(30/30) 4 x 1.5 0.8 1.1 9.0 - 11.6 58 145
    16(30/30) 5 x 1.5 0.8 1.1 9.8 - 12.7 72 169
    14(50/30) 2 x 2.5 0.9 1.1 9.0 - 11.6 101 121
    14(50/30) 3 x 2.5 0.9 1.1 9.6 - 12.4 173 164
    14(50/30) 4 x 2.5 0.9 1.2 10.7 - 13.8 48 207
    14(50/30) 5 x 2.5 0.9 1.3 11.9 - 15.3 72 262
    12(56/28) 2 x 4 1.0 1.2 10.6 - 13.7 96 194
    12(56/28) 3 x 4 1.0 1.2 11.3 - 14.5 120 224
    12(56/28) 4 x 4 1.0 1.3 12.7 - 16.2 77 327
    12(56/28) 5 x 4 1.0 1.4 14.1 - 17.9 115 415
    10(84/28 2 x 6 1.0 1.3 11.8 - 15.1 154 311
    10(84/28 3 x 6 1.0 1.4 12.8 - 16.3 192 310
    10(84/28 4 x 6 1.0 1.5 14.2 - 18.1 115 310
    10(84/28 5 x 6 1.0 1.6 15.7 - 20.0 173 496
