    FROH2R

    Application and Description

    These cables are suitable for connections and movable equipments where performances and entertainments take place. Can be laid inside, even in dry or wet environments or outside but only for a temperatureorary use. The main feature of these cables is its protection against electromagnetic interference thanks to the copper braid. Can be lay under plaster or directly buried, even if protected, is not allowed.

    Standard and Approval

    CEI 20-11

    CEI 20-22/2

    CEI 20-29

    CEI 20-34

    CEI 20-35 (EN60332-1)

    CEI 20-37 pt.2 (EN50267)

    CEI20-52

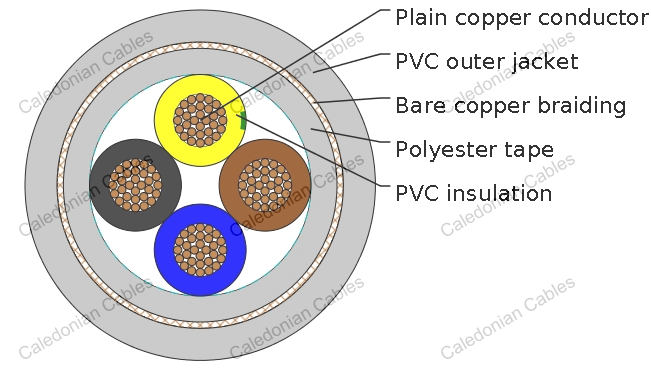

    Cable Construction

    Flexible bare copper strands

    Strands to VDE-0295 Class-5, IEC 60228 Class-5, CEI 20-29 Class-5

    PVC Insulation compound type TI2 according to CEI 20-11

    Color code according to Unel 0722

    Polyester Tape

    Bare copper wires braiding with coverage 75%±5%

    PVC outer sheath compound type TM2 / Rz according to CEI 20-11

    Technical Characteristics

    Working voltage 300/500V; 450/750V
    Test voltage 2000V (300/500V); 2500V (450/750V)
    Flexing bending radius 10 x Ø
    Static bending radius 6 x Ø
    Flexing temperature 0°C to + 70°C
    Static temperature -15°C to +70°C
    Flame retardant VDE 0472 part 804, test method B, and IEC 60332.1
    Insulation resistance 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
    # × mm² mm mm mm kg/km
    FROH2R 300/500V
    Seven cores(including ground core )
    17(32/32) 7 x 1 0.6 1.0 10.5 147.1
    16(30/30) 7 x 1.5 0.7 1.2 12.1 186.9
    14(50/30) 7 x 2.5 0.8 1.4 14.0 242.4
    10 cores(including ground core )
    17(32/32) 10 x 1 0.6 1.2 12.8 215.9
    16(30/30) 10 x 1.5 0.7 1.3 14.5 263.9
    14(50/30) 10 x 2.5 0.8 1.5 16.7 345.5
    12 cores(including ground core )
    17(32/32) 12 x 1 0.6 1.2 14.0 252.0
    16(30/30) 12 x 1.5 0.7 1.4 16.1 315.1
    14(50/30) 12 x 2.5 0.8 1.6 18.7 412.7
    14 cores(including ground core )
    17(32/32) 14 x 1 0.6 1.3 14.9 287.9
    16(30/30) 14 x 1.5 0.7 1.4 16.9 350.9
    14(50/30) 14 x 2.5 0.8 1.6 19.6 460.5
    16 cores(including ground core )
    17(32/32) 16 x 1 0.6 1.3 15.6 317.3
    16(30/30) 16 x 1.5 0.7 1.5 17.9 397.5
    14(50/30) 16x 2.5 0.8 1.7 20.9 520.9
    19 cores(including ground core )
    17(32/32) 19 x 1 0.6 1.4 16.6 368.3
    16(30/30) 19 x 1.5 0.7 1.5 18.8 449.2
    14(50/30) 19 x 2.5 0.8 1.7 22.0 593.7
    24 cores(including ground core )
    17(32/32) 24 x 1 0.6 1.5 19.4 459.8
    16(30/30) 24 x 1.5 0.7 1.7 22.2 573.0
    14(50/30) 24 x 2.5 0.8 1.9 26.4 793.9
    FROH2R 450/750V
    Two cores
    17(32/32) 2 x 1 0.7 1.0 8.6 106.7
    16(30/30) 2 x 1.5 0.7 1.0 9.0 118.4
    14(50/30) 2 x 2.5 0.8 1.2 10.7 169.6
    12(56/28) 2 x 4.0 0.8 1.2 12.1 218.9
    10(84/28) 2 x 6.0 0.9 1.3 13.5 287.1
    Three cores(including ground core )
    17(32/32) 3x 1 0.7 1.0 9.1 123.5
    16(30/30) 3 x 1.5 0.7 1.0 9.5 142.2
    14(50/30) 3 x 2.5 0.8 1.2 11.3 203.8
    12(56/28) 3 x 4.0 0.8 1.3 13.0 277.0
    10(84/28) 3 x 6.0 0.9 1.4 14.4 364.8
    Four cores(including ground core )
    17(32/32) 4 x 1 0.7 1.0 9.8 144.8
    16(30/30) 4 x 1.5 0.7 1.1 10.5 173.5
    14(50/30) 4 x 2.5 0.8 1.2 12.2 242.5
    12(56/28) 4 x 4.0 0.8 1.3 14.4 345.6
    10(84/28) 4 x 6.0 0.9 1.4 15.6 441.3
    Five cores(including ground core )
    17 5 x 1 0.7 1.1 10.7 175.4
    16(30/30) 5 x 1.5 0.7 1.2 11.5 209.0
    14(50/30) 5 x 2.5 0.8 1.3 13.6 308.4
    12(56/28) 5 x 4.0 0.8 1.5 15.9 430.7
    10(84/28) 5 x 6.0 0.9 1.5 17.1 536.7
