    FG7OHH2R

    Application and Description

    These cables are especially suitable for photovoltaic installations in the link connection between inverter and counter. For energy transport and signals transmission both in internal and external application and wet environments. Ideal for fixed lay on walling and metallic frames. Also appropriate for direct or indirect grounded lay.

    Standard and Approval

    CEI 20-13

    CEI 20-22 II

    CEI 20-35 (EN60332-1)

    CEI 20-37 pt.2 (EN50267)

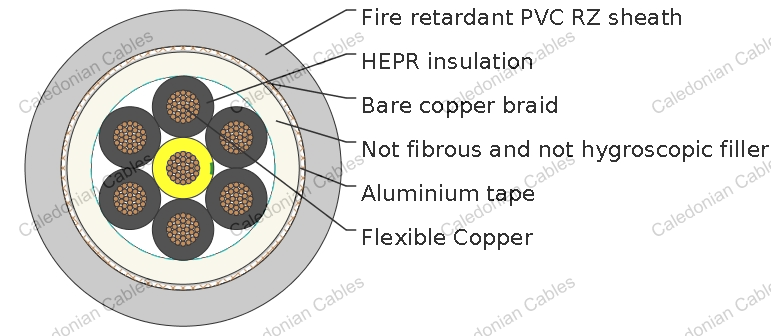

    Cable Construction

    Flexible bare copper conductor to CEI 20-29 cl.5

    Rubber HEPR, G7 quality,acc. to CEI 20-11

    Not fibrous and not hygroscopic filler

    Silver tape

    Bare copper wire braid

    Grey PVC RZ quality outer jacket

    Technical Characteristics

    Working voltage 600/1000V
    Test voltage 4000V
    Minimum bending radius 8 x Ø
    Flexing temperature 0°C to +90°C
    Static temperature -25°C to +90°C
    Maximum short circuit temperature +250°C
    Flame retardant CEI 20-22 II
    Insulation resistance 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
    # × mm² mm mm mm kg/km
    16(30/30) 3 x 1.5 0.7 1.8 13.0 262
    14(50/30) 3 x 2.5 0.7 1.8 14.1 316
    12(56/28) 3 x 4 0.7 1.8 15.0 380
    10(84/28) 3 x 6 0.7 1.8 16.1 456
    8(80/26) 3 x 10 0.7 1.8 19.3 675
    6(128/26) 3 x 16 0.7 1.8 22.3 939
    4(200/26) 3 x 25 0.9 1.8 26.6 1346
    2(280/26) 3 x 35 0.9 1.8 29.2 1744
    1(400/26) 3 x 50 1 1.8 32.3 2262
    2/0(356/24) 3 x 70 1.1 1.9 38.5 3188
    3/0(485/24) 3 x 95 1.1 2 44.2 4309
    4/0(614/24) 3 x 120 1.2 2.1 51.6 5635
    250MCM 3 x 150 1.4 2.3 56.6 6921
    350MCM 3 x 185 1.6 2.4 64.2 8079
    450MCM 3 x 240 1.7 2.6 72.7 10639

    * Galvinized steel armouring version (FG7OHHH2RAR) is available
