    FG7OH1M1/FG7OH2M1

    Application and Description

    These cables are suitable for environments with high fire hazards risk, where it’s essential to guarantee the safety of people and preserve systems and equipments from the corrosive gases (e.g. schools, hospitals, public premises, hotels, supermarkets, tubes, cinemas, theatres, discotheques, public offices). For fixed installation, both indoor and outdoor, on walls and metallic frames.

    Standard and Approval

    CEI 20-13

    CEI 20-11

    CEI 20-22 III

    CEI 20-35 (EN60332-1)

    CEI 20-37 pt.2 (EN50267)

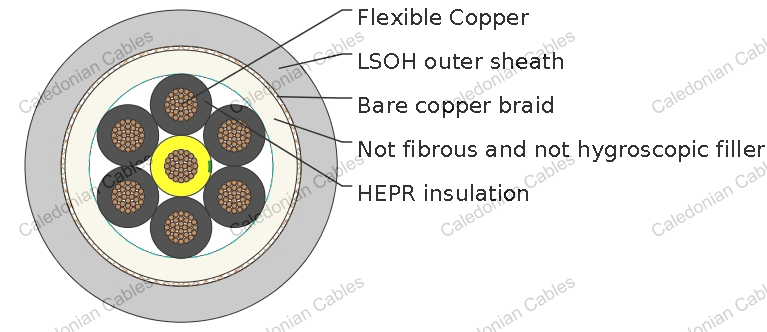

    Cable Construction

    Flexible bare copper conductor to CEI 20-29 cl.5

    Rubber HEPR, G7 quality,acc. to CEI 20-11

    Not fibrous and not hygroscopic filler

    Bare copper tape screen(for FG7OH1M1)

    Bare copper wire braid(for FG7OH2M1)

    Grey LSOH,type M1 outer jacket

    Technical Characteristics

    Working voltage 600/1000 V
    Test voltage 4000 V
    Minimum bending radius 8 x Ø
    Flexing temperature 0°C to +90°C
    Static temperature -25°C to +90°C
    Maximum short circuit temperature +250°C
    Flame retardant CEI 20-22 III - IEC 60332-3-24
    Insulation resistance 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
    # × mm² mm mm mm kg/km
    power
    16(30/30) 2 x 1.5 0.7 1.8 12.6 241
    14(50/30) 2 x 2.5 0.7 1.8 13.5 280
    12(56/28) 2 x 4 0.7 1.8 14.5 336
    10(84/28) 2 x 6 0.7 1.8 15.5 395
    8(80/26) 2 x 10 0.7 1.8 18.4 567
    6(128/26) 2 x 16 0.7 1.8 20.5 738
    4(200/26) 2 x 25 0.9 1.8 25.3 1107
    2(280/26) 2 x 35 0.9 1.8 27.7 1403
    1(400/26) 2 x 50 1 1.8 30.6 1830
    2/0(356/24) 2 x 70 1.1 1.8 36.4 2571
    3/0(485/24) 2 x 95 1.1 1.8 39.0 3143
    4/0(614/24) 2 x 120 1.2 1.8 46.3 4316
    250MCM 2 x 150 1.4 1.8 52.8 5547
    16(30/30) 3 x 1.5 0.7 1.8 13.0 262
    14(50/30) 3 x 2.5 0.7 1.8 14.1 316
    12(56/28) 3 x 4 0.7 1.8 15.0 380
    10(84/28) 3 x 6 0.7 1.8 16.1 456
    8(80/26) 3 x 10 0.7 1.8 19.3 675
    6(128/26) 3 x 16 0.7 1.8 22.3 939
    4(200/26) 3 x 25 0.9 1.8 26.6 1346
    2(280/26) 3 x 35 0.9 1.8 29.2 1744
    1(400/26) 3 x 50 1 1.8 32.3 2262
    2/0(356/24) 3 x 70 1.1 1.9 38.5 3188
    3/0(485/24) 3 x 95 1.1 2 44.2 4309
    4/0(614/24) 3 x 120 1.2 2.1 51.6 5635
    250MCM 3 x 150 1.4 2.3 56.6 6921
    350MCM 3 x 185 1.6 2.4 60.2 8079
    450MCM 3 x 240 1.7 2.6 69.7 10639
    - 3 x 35 + 25 0.9 1.8 31.1 2038
    - 3 x 50 + 25 1 1.8 34.7 2606
    - 3 x 70+ 35 1.1 1.9 39.8 3540
    - 3 x 95 + 50 1.1 2.1 45.9 4818
    - 3 x 120 + 70 1.2 2.2 53.9 6358
    - 3 x 150 + 95 1.4 2.4 59.0 7852
    - 3 x 185 + 95 1.6 2.6 62.8 9066
    - 3 x 240 + 150 1.7 2.8 73.0 12078
    16(30/30) 4 x 1.5 0.7 1.8 13.8 298
    14(50/30) 4 x 2.5 0.7 1.8 14.9 357
    12(56/28) 4 x 4 0.7 1.8 16.1 438
    10(84/28) 4 x 6 0.7 1.8 17.3 535
    8(80/26) 4 x 10 0.7 1.8 20.8 802
    6(128/26) 4 x 16 0.7 1.8 24.6 1164
    4(200/26) 4 x 25 0.9 1.8 28.8 1664
    16(30/30) 5 x 1.5 0.7 1.8 14.9 351
    14(50/30) 5 x 2.5 0.7 1.8 16.2 424
    12(56/28) 5 x 4 0.7 1.8 17.5 527
    10(84/28) 5 x 6 0.7 1.8 18.9 635
    8(80/26) 5 x 10 0.7 1.8 23.7 1027
    6(128/26) 5 x 16 0.7 1.8 26.9 1415
    4(200/26) 5 x 25 0.9 1.8 31.6 2022
    control
    16(30/30) 7 x 1.5 0.7 1.8 15.7 399
    16(30/30) 10 x 1.5 0.7 1.8 17.8 503
    16(30/30) 12 x 1.5 0.7 1.8 19.2 574
    16(30/30) 16 x 1.5 0.7 1.8 21.0 690
    16(30/30) 19 x 1.5 0.7 1.8 22.6 813
    16(30/30) 24 x 1.5 0.7 1.8 24.6 927
    14(50/30) 7 x2.5 0.7 1.8 17.1 496
    14(50/30) 10 x 2.5 0.7 1.8 19.5 644
    14(50/30) 12 x 2.5 0.7 1.8 21.2 732
    14(50/30) 16 x 2.5 0.7 1.8 24.0 950
    14(50/30) 19 x 2.5 0.7 1.8 25.0 1056
    14(50/30) 24 x 2.5 0.7 1.8 38.3 1281
