These cables are especially used in power circuits or signals and commands transfer. In environments with high fire hazards risk when it's essential to guarantee the safety of people and goods. Typically hospitals, schools, commercial areas, public premises, hotels, undergrounds, residential buildings and industries ambits with high concentration of persons or instrumental goods. For fixed installation indoor or outdoor, clipped on metallic frames or walls.
CEI 20-11
CEI 20-13
CEI 20-22 III
CEI 20-29
CEI 20-35
CEI 20-37
CEI-UNEL 00722
CEI-UNEL 35382
CEI-UMEL 35384

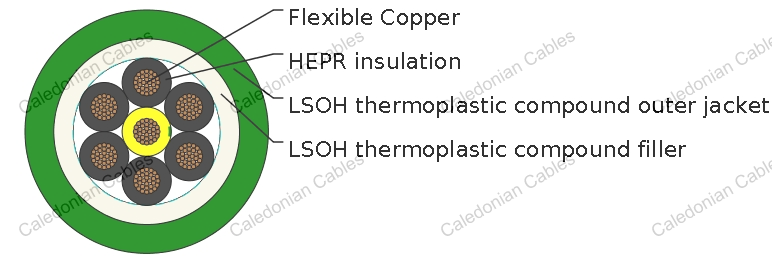

Flexible bare copper conductor to CEI 20-29 cl.5
Rubber HEPR, G7 quality to CEI 20-11
LSOH thermoplastic compound filler
Type M1 LSOH thermoplastic compound outer jacket
| Working voltage | 600/1000 V |
| Test voltage | 4000 V |
| Minimum bending radius | UNEL 35382: 4 x outer diameter; UNEL 35384: 6 x outer diameter |
| Flexing temperature | 0°C to +90°C |
| Static temperature | -25°C to +90°C |
| Maximum short circuit temperature | +250°C |
| Flame retardant | CEI 20-22 III, IEC 60332-3-24 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # × mm² | mm | mm | mm | kg/km | |
| FG7M1(power) | |||||
| 16(30/30) | 1 x 1.5 | 0.7 | 1.4 | 5.8 | 55 |
| 14(50/30) | 1 x 2.5 | 0.7 | 1.4 | 6.3 | 65 |
| 12(56/28) | 1 x 4 | 0.7 | 1.4 | 6.7 | 85 |
| 10(84/28) | 1 x 6 | 0.7 | 1.4 | 7.4 | 105 |
| 8(80/26) | 1 x 10 | 0.7 | 1.4 | 8.3 | 155 |
| 6(128/26) | 1 x 16 | 0.7 | 1.4 | 9.4 | 210 |
| 4(200/26) | 1 x 25 | 0.9 | 1.4 | 11.1 | 310 |
| 2(280/26) | 1 x 35 | 0.9 | 1.4 | 12.1 | 410 |
| 1(400/26) | 1 x 50 | 1 | 1.4 | 13.9 | 560 |
| 2/0(356/24) | 1 x 70 | 1.1 | 1.4 | 16.1 | 770 |
| 3/0(485/24) | 1 x 95 | 1.1 | 1.5 | 18.0 | 990 |
| 4/0(614/24) | 1 x 120 | 1.2 | 1.5 | 19.0 | 1250 |
| 250 MCM | 1 x 150 | 1.4 | 1.6 | 22.3 | 1550 |
| 350 MCM | 1 x 185 | 1.6 | 1.6 | 23.6 | 1900 |
| 450 MCM | 1 x 240 | 1.7 | 1.7 | 26.4 | 2450 |
| 550 MCM | 1 x 300 | 1.8 | 1.8 | 31.0 | 3000 |
| FG7OM1(power) | |||||
| 16(30/30) | 2 x 1.5 | 0.7 | 1.8 | 9.6 | 155 |
| 14(50/30) | 2 x 2.5 | 0.7 | 1.8 | 10.6 | 190 |
| 12(56/28) | 2 x 4 | 0.7 | 1.8 | 11.4 | 240 |
| 10(84/28) | 2 x 6 | 0.7 | 1.8 | 12.9 | 310 |
| 8(80/26) | 2 x 10 | 0.7 | 1.8 | 14.6 | 460 |
| 6(128/26) | 2 x 16 | 0.7 | 1.8 | 16.8 | 620 |
| 4(200/26) | 2 x 25 | 0.9 | 1.8 | 20.3 | 900 |
| 2(280/26) | 2 x 35 | 0.9 | 1.8 | 22.3 | 1200 |
| 1(400/26) | 2 x 50 | 1.0 | 1.8 | 27.5 | 1650 |
| 2/0(356/24) | 2 x 70 | 1.1 | 1.8 | 31.5 | 2050 |
| 3/0(485/24) | 2 x 95 | 1.1 | 2.0 | 35.4 | 2670 |
| 4/0(614/24) | 2 x 120 | 1.2 | 2.1 | 39.8 | 3330 |
| 250 MCM | 2 x 150 | 1.4 | 2.2 | 44.1 | 4100 |
| 16(30/30) | 3 x 1.5 | 0.7 | 1.8 | 10.6 | 175 |
| 14(50/30) | 3 x 2.5 | 0.7 | 1.8 | 11.4 | 220 |
| 12(56/28) | 3 x 4 | 0.7 | 1.8 | 12.5 | 280 |
| 10(84/28) | 3 x 6 | 0.7 | 1.8 | 13.8 | 365 |
| 8(80/26) | 3 x 10 | 0.7 | 1.8 | 16.2 | 550 |
| 6(128/26) | 3 x 16 | 0.7 | 1.8 | 18.3 | 760 |
| 4(200/26) | 3 x 25 | 0.9 | 1.8 | 21.8 | 1100 |
| 2(280/26) | 3 x 35 | 0.9 | 1.8 | 24.3 | 1500 |
| 1(400/26) | 3 x 50 | 1 | 1.8 | 27.8 | 2050 |
| 2/0(356/24) | 3 x 70 | 1.1 | 1.9 | 32.4 | 2850 |
| 3/0(485/24) | 3 x 95 | 1.1 | 2.0 | 35.6 | 3600 |
| 4/0(614/24) | 3 x 120 | 1.2 | 2.1 | 40.0 | 4600 |
| 250 MCM | 3 x 150 | 1.4 | 2.3 | 46.5 | 5600 |
| 350 MCM | 3 x 185 | 1.6 | 2.4 | 51.2 | 6900 |
| 450 MCM | 3 x 240 | 1.7 | 2.6 | 58.4 | 9150 |
| 550 MCM | 3x300 | 1.8 | 2.8 | 64.0 | 11000 |
| 16(30/30) | 4 x 1.5 | 0.7 | 1.8 | 11.3 | 200 |
| 14(50/30) | 4 x 2.5 | 0.7 | 1.8 | 12.3 | 260 |
| 12(56/28) | 4 x 4 | 0.7 | 1.8 | 13.5 | 340 |
| 10(84/28) | 4 x 6 | 0.7 | 1.8 | 15.1 | 440 |
| 8(80/26) | 4 x 10 | 0.7 | 1.8 | 17.6 | 670 |
| 6(128/26) | 4 x 16 | 0.7 | 1.8 | 20.0 | 950 |
| 4(200/26) | 4 x 25 | 0.9 | 1.8 | 23.9 | 1400 |
| 2(280/26) | 3 x 35 + 25 | 0.9 | 1.8 | 29.2 | 1700 |
| 1(400/26) | 3 x 50 + 25 | 1 | 1.8 | 32.4 | 2300 |
| 2/0(356/24) | 3 x 70+ 35 | 1.1 | 1.9 | 37.0 | 3100 |
| 3/0(485/24) | 3 x 95 + 50 | 1.1 | 2.1 | 42.0 | 4050 |
| 4/0(614/24) | 3 x 120 + 70 | 1.2 | 2.2 | 46.9 | 5250 |
| 300MCM | 3 x 150 + 95 | 1.4 | 2.4 | 52.5 | 6500 |
| 350MCM | 3 x 185 + 95 | 1.6 | 2.5 | 57.3 | 7800 |
| 500MCM | 3 x 240 + 150 | 1.7 | 2.7 | 65.5 | 10500 |
| 16(30/30) | 5 x 1.5 | 0.7 | 1.8 | 11.7 | 250 |
| 14(50/30) | 5 x 2.5 | 0.7 | 1.8 | 13.3 | 320 |
| 12(56/28) | 5 x 4 | 0.7 | 1.8 | 14.6 | 410 |
| 10(84/28) | 5 x 6 | 0.7 | 1.8 | 16.3 | 540 |
| 8(80/26) | 5 x 10 | 0.7 | 1.8 | 19.2 | 800 |
| 6(128/26) | 5 x 16 | 0.7 | 1.8 | 21.9 | 1150 |
| 4(200/26) | 5 x 25 | 0.9 | 1.8 | 26.5 | 1700 |
| 2(280/26) | 5x35 | 0.9 | 1.8 | 29.8 | 2250 |
| 1(400/26) | 5x50 | 1.0 | 2.0 | 34.5 | 3200 |
| FG7OM1(control) | |||||
| 16(30/30) | 7 x 1.5 | 0.7 | 1.8 | 12.6 | 275 |
| 16(30/30) | 10 x 1.5 | 0.7 | 1.8 | 15.0 | 365 |
| 16(30/30) | 12 x 1.5 | 0.7 | 1.8 | 16.2 | 410 |
| 16(30/30) | 16 x 1.5 | 0.7 | 1.8 | 17.6 | 510 |
| 16(30/30) | 19 x 1.5 | 0.7 | 1.8 | 18.6 | 580 |
| 16(30/30) | 24 x 1.5 | 0.7 | 1.8 | 21.6 | 732 |
| 14(50/30) | 7 x2.5 | 0.7 | 1.8 | 14.1 | 340 |
| 14(50/30) | 10 x 2.5 | 0.7 | 1.8 | 17.6 | 528 |
| 14(50/30) | 12 x 2.5 | 0.7 | 1.8 | 18.0 | 569 |
| 14(50/30) | 16 x 2.5 | 0.7 | 1.8 | 20.0 | 701 |
| 14(50/30) | 19 x 2.5 | 0.7 | 1.8 | 20.7 | 793 |
| 14(50/30) | 24 x 2.5 | 0.7 | 1.8 | 24.0 | 1100 |
* Galvinized steel armouring version (FG7OM1AM1) is available
