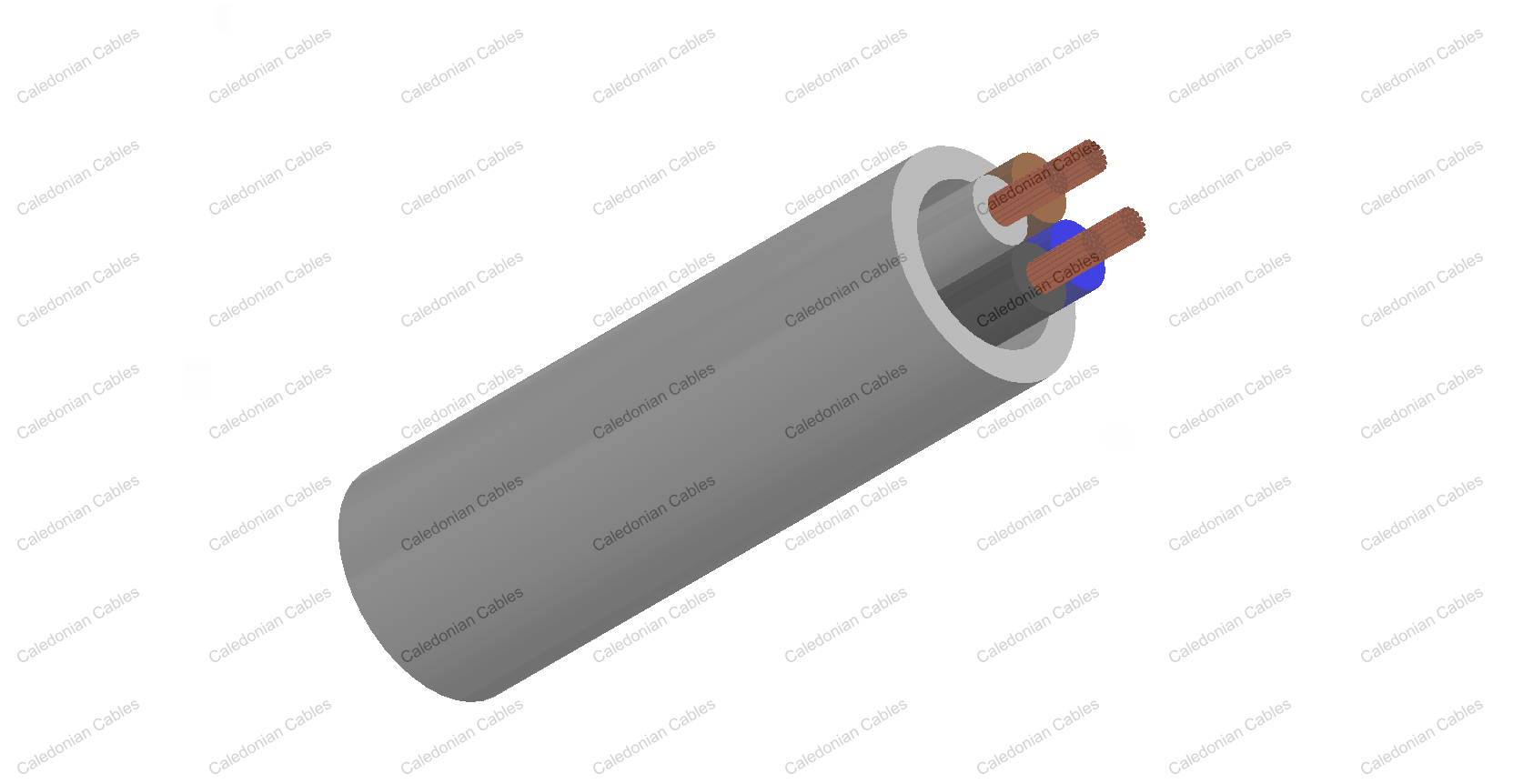

    A07RN-F

    Application and Description

    These cables are designed to provide high flexibility and have the capacity to withstand ozone,weather and oils/greases, mainly used for connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and agricultural plants and on Cable Construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, for directly laying on modules of hoisting devices, machinery etc. Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts.

    Standard and Approval

    CEI 20-19

    HD 22.4

    IEC 60245-4

    CE low voltage directive 73/23/EEC & 93/68/EEC

    ROHS compliant

    Cable Construction

    Fine bare copper strands

    Strands to VDE-0295 Class-5, IEC 60228 Class-5

    Rubber core insulation EI4 to VDE-0282 Part-1

    3,4,& 5 cores cables - NO green/yellow ground

    Color code VDE-0293-308

    Green-yellow grounding, 3 conductors and above

    Polychloroprene rubber (neoprene) jacket EM2

    Technical Characteristics

    Working voltage 450/750 volts
    Test voltage 2500 volts
    Flexing bending radius 7.5 x Ø
    Fixed bending radius 4.0 x Ø
    Flexing Temperature -25ºC to +60ºC
    Fixed Temperature -40ºC to +60ºC
    Flame retardant IEC 60332 -1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm mm (min-max) kg/km kg/km
    16(30/30) 3 x 1.5 0.8 1.6 9.2-11.9 43 165
    16(30/30) 4 x 1.5 0.8 1.7 10.2-13.1 58 200
    16(30/30) 5 x 1.5 0.8 1.8 11.2-14.4 72 240
    16(30/30) 7 x 1.5 0.8 2.6 14.5-17.5 101 385
    16(30/30) 12 x 1.5 0.8 2.9 17.6-22.4 173 516
    16(30/30) 19 x 1.5 0.8 3.2 20.7-26.3 274 800
    16(30/30) 24 x 1.5 0.8 3.5 24.3-30.7 346 882
    16(30/30) 27 x 1.5 0.8  3.6  25.5-31.5 389 1077
    14(50/30) 3 x 2.5 0.9 1.8 10.9-14.0 72 235
    14(50/30) 4 x 2.5 0.9 1.9 12.1-15.5 96 290
    14(50/30) 7 x 2.5 0.9 2.8 16.5-20.0 168 520
    14(50/30) 12 x 2.5 0.9 3.1 20.6-26.2 288 810
    14(50/30) 19 x 2.5 0.9 3.5 25.5-31.0 456 1200
    14(50/30) 24 x 2.5 0.9 3.9 28.8-36.4 576 1650
    14(50/30) 27 x 2.5 0.9  4.2  30.0-37.0 648 1521
    14(50/30) 37x 2.5 0.9  4.5  34.0-37.5 725 1952
    12(56/28) 3 x 4 1 1.9 12.7-16.2 115 320
    12(56/28) 4 x 4 1 2 14.0-17.9 154 395
    10(84/28) 3 x 6 1 2.1 14.1-18.0 173 495
    10(84/28) 4 x 6 1 2.3 15.7-20.0 230 610
    8(80/26) 3 x 10 1.2 3.3 19.1-24.2 288 880
    8(80/26) 4 x 10 1.2 3.4 20.9-26.5 384 1060
    6(128/26) 3 x 16 1.2 3.5 21.8-27.6 461 1090
    6(128/26) 4 x 16 1.2 3.6 23.8-30.1 614 1345
