These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.

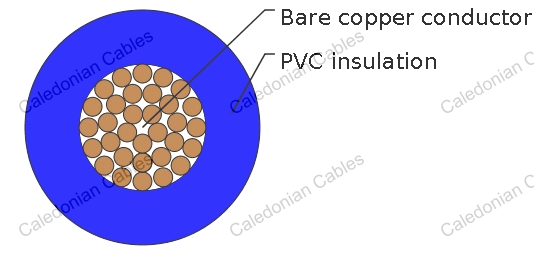

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5 and HD 383 |
| Special heat resistant PVC TI3 core insulation to DIN VDE 0281 part 7 |
| Cores to VDE-0293 colors |
| H05V2-K (20, 18 & 17 AWG) |
| H07V2-K (16 AWG and Larger) |
| WORKING VOLTAGE | 300/500v (H05V2-K)/ 450/750v (H07V2-K) |
|---|---|
| TEST VOLTAGE | 2000 volts |
| FLEXING BENDING RADIUS | 10-15 x Ø |
| STATIC BENDING RADIUS | 10-15 x Ø |
| FLEXING TEMPERATURE | +5 ºC to +90 ºC |
| STATIC TEMPERATURE | -10 ºC to +105 ºC |
| FLAME RETARDANT | IEC 60332.1 |
| INSULATION RESISTANCE | 20 MΩ x km |
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
|---|---|---|---|---|---|
| # X MM² | MM | MM | KG/KM | KG/KM | |
| H05V2-K | |||||
| 20(16/32) | 1 x 0.5 | 0.6 | 2.5 | 4.8 | 8.7 |
| 18(24/32) | 1 x 0.75 | 0.6 | 2.7 | 7.2 | 11.9 |
| 17(32/32) | 1 x 1 | 0.6 | 2.8 | 9.6 | 14.0 |
| H07V2-K | |||||
| 16(30/30) | 1 x 1.5 | 0,7 | 3.4 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 0,8 | 4.1 | 24 | 33.3 |
| 12(56/28) | 1 x 4 | 0,8 | 4.8 | 38 | 48.3 |
| 10(84/28) | 1 x 6 | 0,8 | 5.3 | 58 | 68.5 |
| 8(80/26) | 1 x 10 | 1,0 | 6.8 | 96 | 115 |
| 6(128/26) | 1 x 16 | 1,0 | 8.1 | 154 | 170 |
| 4(200/26) | 1 x 25 | 1,2 | 10.2 | 240 | 270 |
| 2(280/26) | 1 x 35 | 1,2 | 11.7 | 336 | 367 |
| 1(400/26) | 1 x 50 | 1,4 | 13.9 | 480 | 520 |
| 2/0(356/24) | 1 x 70 | 1,4 | 16 | 672 | 729 |
| 3/0(485/24) | 1 x 95 | 1,6 | 18.2 | 912 | 962 |
| 4/0(614/24) | 1 x 120 | 1,6 | 20.2 | 1115 | 1235 |
| 300 MCM (765/24) | 1 x 150 | 1,8 | 22.5 | 1440 | 1523 |
| 350 MCM (944/24) | 1 x 185 | 2,0 | 24.9 | 1776 | 1850 |
| 500MCM(1225/24) | 1 x 240 | 2,2 | 28.4 | 2304 | 2430 |
