    H03RT-H

    Application and Description

    These cables are suitable for power connecting wire and complete lines between indoor household appliances, generally used for electric iron or electric saucepan. Not suitable for outdoor use nor power supply to electrical tools.Ozone, oxygen, UV rays and heat resistant.

    Standard and Approval

    • HD22.14
    • ROHS compliant

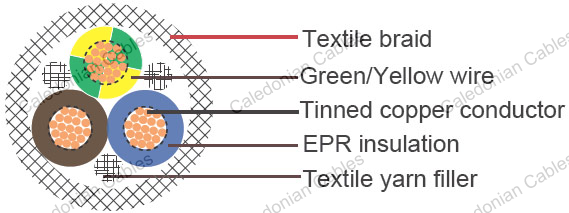

    Cable Construction

    Flexible bare or tinned copper strand conductor acc. to DIN VDE 0295 class 5. IEC 60228 class 5
    EPR insulation type E14 of HD22.1
    Color coded to VDE 0293-308/HD 308 / UNE 21089-1(3 conductors and above with yellow/green wire)
    Textile yarn filler
    Textile braid of HD22.1

    Technical Characteristics

    WORKING VOLTAGE 300/300 V
    TEST VOLTAGE 2000V
    MINIMUM BENDING RADIUS - 25ºC to + 60ºC
    TEMPERATURE RANGE 3 x Ø
    SHORT CIRCUIT TEMPERATURE 200ºC

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    # X MM² MM KG/KM KG/KM
    18(24/32) 2×0.75 0.80 6.30±0.20 36
    17(32/32) 2×1.0 0.80 6.80±0.20 52
    16(30/30) 2×1.5 0.80 7.20±0.20 42
    18(24/32) 3×0.75 0.80 6.80±0.20 60
    17(32/32) 3×1.0 0.80 7.20±0.20 54
    16(30/30) 3×1.5 0.80 7.80±0.20 74
