    (H)03Z1Z1-F/(H)05Z1Z1-F

    Application and Description

    These cables may be used when halogen-free, low smoke and corrosive gas properties are required in case of fire. For moderate demands in the house, kitchen and office, for house equipment in damp rooms (for example: washing machines, dryers and refrigerators). Suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation. Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial or
    agricultural buildings, connection of electrical power tools.

    Standard and Approval

    <HAR> HD21.14 S1, VDE-0281 Part-14, VDE 0482-332-1-2, CEI 20-20/14, CEI 20-35 (EN60332-1), CEI 20-
    37 (EN50267), EN50363, CE low voltage directive 73/23/EEC & 93/68/EEC, ROHS compliant

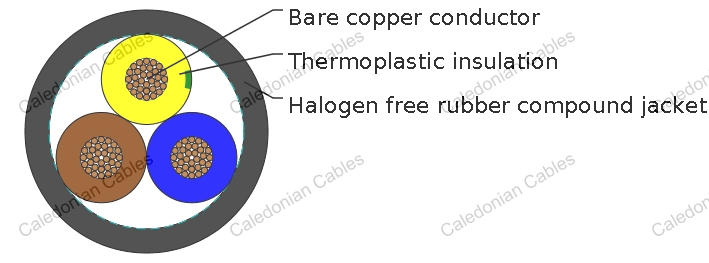

    Cable Construction

    - Fine bare copper strands
    - Strands to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383
    - Thermoplastic TI6 core insulation
    - Color code VDE-0293-308
    - Green-yellow grounding (3 conductors and above)
    - Halogen-fee thermoplastic TM7 outer jacket
    - Black (RAL 9005) or White (RAL 9003)

    Technical Characteristics

    - Working voltage: 300/300 volts(H03Z1Z1-F), 300/500 volts(H05Z1Z1-F)
    - Test voltage: 2000 volts(H03Z1Z1-F), 2500 volts(H05Z1Z1-F)
    - Flexing bending radius: 7.5 x Ø
    - Fixed bending radius: 4.0 x Ø
    - Flexing Temperature: -5º C to +70º C
    - Fixed Temperature: -40º C to +70º C
    - Short circuit temperature: +160º C
    - Insulation resistance: 20 MΩ x km
    - Smoke density acc. to EN 50268 / IEC 61034
    - Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
    - Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
    (H)03 Z1Z1-F
    20(16/32) 2 x 0. 5 0.5 0.6 5.0 9.6 39
    20(16/32) 3 x 0. 5 0.5 0.6 5.3 14.4 46
    20(16/32) 4 x 0. 5 0.5 0.6 5.8 19.2 56
    18(24/32) 2 x 0.75 0.5 0.6 5.4 14.4 47
    18(24/32) 3 x 0.75 0.5 0.6 5.7 21.6 55
    18(24/32) 4 x 0.75 0.5 0.6 6.3 29.0 69
    (H)05 Z1Z1-F
    18(24/32) 2 x 0.75 0.6 0.8 6.2 14.4 58
    18(24/32) 3 x 0.75 0..7 0.8 6.6 21.6 68
    18(24/32) 4 x 0.75 0.8 0.8 7.1 29 81
    18(24/32) 5 x 0.75 0.8 0.9 8 36 102
    17(32/32) 2 x 1 0.6 0.8 6.6 19 67
    17(32/32) 3 x 1 0.8 0.8 6.9 29 81
    17(32/32) 4 x 1 0.8 0.9 7.7 38 101
    17(32/32) 5 x 1 0.8 0.9 8.4 48 107
    16(30/30) 2 x 1.5 0..7 0.8 7.4 29 87
    16(30/30) 3 x 1.5 0.8 0.9 8.1 43 109
    16(30/30) 4 x 1.5 0.8 1.0 9 58 117
    16(30/30) 5 x 1.5 0.8 1.1 10 72 169
    14(50/30) 2 x 2.5 0.8 1.0 9.3 48 138
    14(50/30) 3 x 2.5 1.0 1.1 10.1 72 172
    14(50/30) 4 x 2.5 1.0 1.1 11 96 210
    14(50/30) 5 x 2.5 1.0 1.2 12.3 120 260
    12(56/28) 2 x 4 0.8 1.1 10.6 76.8 190
    12(56/28) 3 x 4 1.0 1.2 11.5 115.2 242
    12(56/28) 4 x 4 1.0 1.4 12.5 153.6 298
    12(56/28) 5 x 4 1.0 1.4 14.1 192 371
