    NYY-J / NYY-O

    Application and Description

    NYY power cable is designed for energy supply in cable ducts, power stations, industry and distribution boards and in subscriber networks. May also be used in brickwork and in concrete with the exception of cabling in shaken, vibrated or compressed concrete. NYY cables can be installed in open air, underground, in water and indoors where mechanical damages are not to be expected. The UV-resistance allows for outdoor use.

    Standard and Approval

    • VDE-0276 Part-603 & Part-627, HD 603.1 & 627 S1, IEC 60502, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

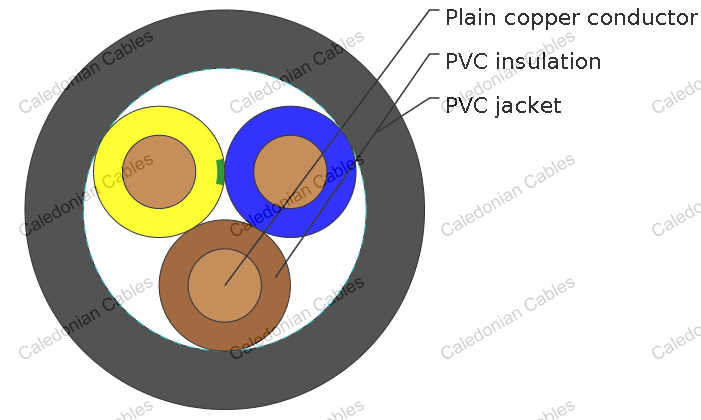

    Cable Construction

    Solid or stranded, plain copper conductor
    Strands to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2
    PVC insulation DIV4 to HD 603.1
    Color coded to DIN VDE 0293-308, 0276 part 603 or HD 186
    Conductor color for 3+1/2 conductor
    J-type: green-yellow (1/2), brown, black, gray
    O-type: blue (1/2), brown, black, gray
    PVC outer jacket DMV5 to HD 603.1

    Technical Characteristics

    Working voltage 600/1000 V
    Test voltage 4000 V
    Flexing bending radius 15 x Ø
    Static bending radius 12 x Ø
    Flexing Temperature -5º C to +50º C
    Fixed installation temperature - 40º C to +70º C
    Flame retardant IEC 60332.1
    Insulation resistance >100 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Overall Diameter Nominal Copper Weight Nominal Cable Weight
      # x mm² mm kg/km kg/km
    12 1x4re 9.0 38.0 130.0
    10 1x6re 10.0 58.0 136.0
    8 1x10re 11.0 96.0 182.0
    6 1x16re 12.0 154.0 252.0
    4 1x25rm 13.0 240.0 365.0
    2 1x35rm 14.0 336.0 480.0
    1 1x50rm 16.0 480.0 620.0
    2/0 1x70rm 17.0 672.0 840.0
    3/0 1x95rm 19.0 912.0 1100.0
    4/0 1x120rm 21.0 1152.0 1320.0
    300mcm 1x150rm 23.0 1440.0 1610.0
    350mcm 1x185rm 25.0 1776.0 1.980.0
    500mcm 1x240rm 28.0 2304.0 2550.0
    750mcm 1x300rm 30.0 2880.0 3200.0
    - 1x400rm 34.0 3840.0 4000.0
    - 1x500rm 38.0 4800.0 5100.0
    16 3x1.5re 12.0 43.0 225.0
    14 3x2.5re 13.0 72.0 275.0
    12 3x4re 14.0 115.0 375.0
    10 3x6re 15.0 173.0 480.0
    8 3x10re 18.0 288.0 675.0
    6 3x16re 19.0 461.0 880.0
    4 3x25rm 24.0 720.0 1390.0
    2 3x35sm 25.0 1008.0 1600.0
    1 3x50sm 28.0 1440.0 2000.0
    2/0 3x70sm 31.0 2016.0 2700.0
    3/0 3x95sm 35.0 2736.0 3600.0
    4/0 3x120sm 39.0 3456.0 4400.0
    300mcm 3x150sm 44.0 4320.0 4910.0
    350mcm 3x185sm 49.0 5328.0 6520.0
    500mcm 3x240sm 53.0 6912.0 8290.0
    4 3x25rm/16re 25.0 874.0 1575.0
    2 3x35sm/16re 26.0 1162.0 1700.0
    1 3x50sm/25rm 30.0 1680.0 2325.0
    2/0 3x70sm/35sm 35.0 2352.0 2900.0
    3/0 3x95sm/50sm 37.0 3216.0 3900.0
    4/0 3x120sm/70sm 42.0 4128.0 4900.0
    300mcm 3x150sm/70sm 47.0 4992.0 5800.0
    350mcm 3x185sm/95sm 51.0 6240.0 7400.0
    500mcm 3x240sm/120sm 59.0 8064.0 9700.0
    - 3x300sm/150sm 66.0 10080.0 12000.0
    16 4x1.5re 13.0 58.0 220.0
    14 4x2.5re 14.0 96.0 300.0
    12 4x4re 16.0 154.0 410.0
    10 4x6re 17.0 230.0 520.0
    8 4x10re 19.0 384.0 720.0
    6 4x16re 22.0 614.0 1050.0
    4 4x25rm 26.0 960.0 1650.0
    2 4x35sm 28.0 1344.0 1860.0
    1 4x50sm 31.0 1920.0 2500.0
    2/0 4x70sm 35.0 2688.0 3300.0
    3/0 4x95sm 38.0 3648.0 4500.0
    4/0 4x120sm 42.0 4608.0 5500.0
    300mcm 4x150sm 47.0 5760.0 6880.0
    350mcm 4x185sm 52.0 7104.0 8460.0
    500mcm 4x240sm 59.0 9216.0 11000.0
    16 5x1.5re 13.0 72.0 280.0
    14 5x2.5re 15.0 120.0 360.0
    12 5x4re 16.0 192.0 490.0
    10 5x6re 18.0 288.0 650.0
    8 5x10re 20.0 480.0 870.0
    6 5x16re 23.0 768.0 1255.0
    4 5x25rm 30.0 1200.0 1980.0
    2 5x35rm 34.0 1680.0 2650.0
    16 7x1.5re 14.0 101.0 370.0
    16 10x1.5re 17.0 144.0 530.0
    16 12x1.5re 18.0 173.0 580.0
    16 14x1.5re 19.0 202.0 620.0
    16 16x1.5re 20.0 230.0 690.0
    16 19x1.5re 21.0 274.0 770.0
    16 21x1.5re 22.0 302.0 850.0
    16 24x1.5re 23.0 346.0 900.0
    16 30x1.5re 24.0 432.0 1030.0
    16 40x1.5re 28.0 576.0 1260.0
    16 61x1.5re 32.0 878.0 1760.0
    14 7x2.5re 16.0 168.0 460.0
    14 10x2.5re 19.0 240.0 650.0
    14 12x2.5re 20.0 288.0 730.0
    14 14x2.5re 21.0 336.0 820.0
    14 16x2.5re 22.0 384.0 930.0
    14 19x2.5re 23.0 456.0 1000.0
    14 21x2.5re 24.0 504.0 1050.0
    14 24x2.5re 26.0 576.0 1120.0
    14 30x2.5re 28.0 720.0 1300.0
    14 40x2.5re 30.0 960.0 1700.0
    14 52x2.5re 36.0 1248.0 2300.0
    14 61x2.5re 38.0 1464.0 2600.0
    14 7x4re 19.0 269.0 620.0
    14 7x6re 21.0 403.0 860.0
