NYM is suitable for industrial and home applications. It is designed for dry, moist and wet open areas as well as under plaster, walling and concrete. However, it is not recommended to lay the cable into the compacted concrete. Outer application is permitted only in the case that cable is not exposed to direct sunlights.
DIN VDE 0250, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

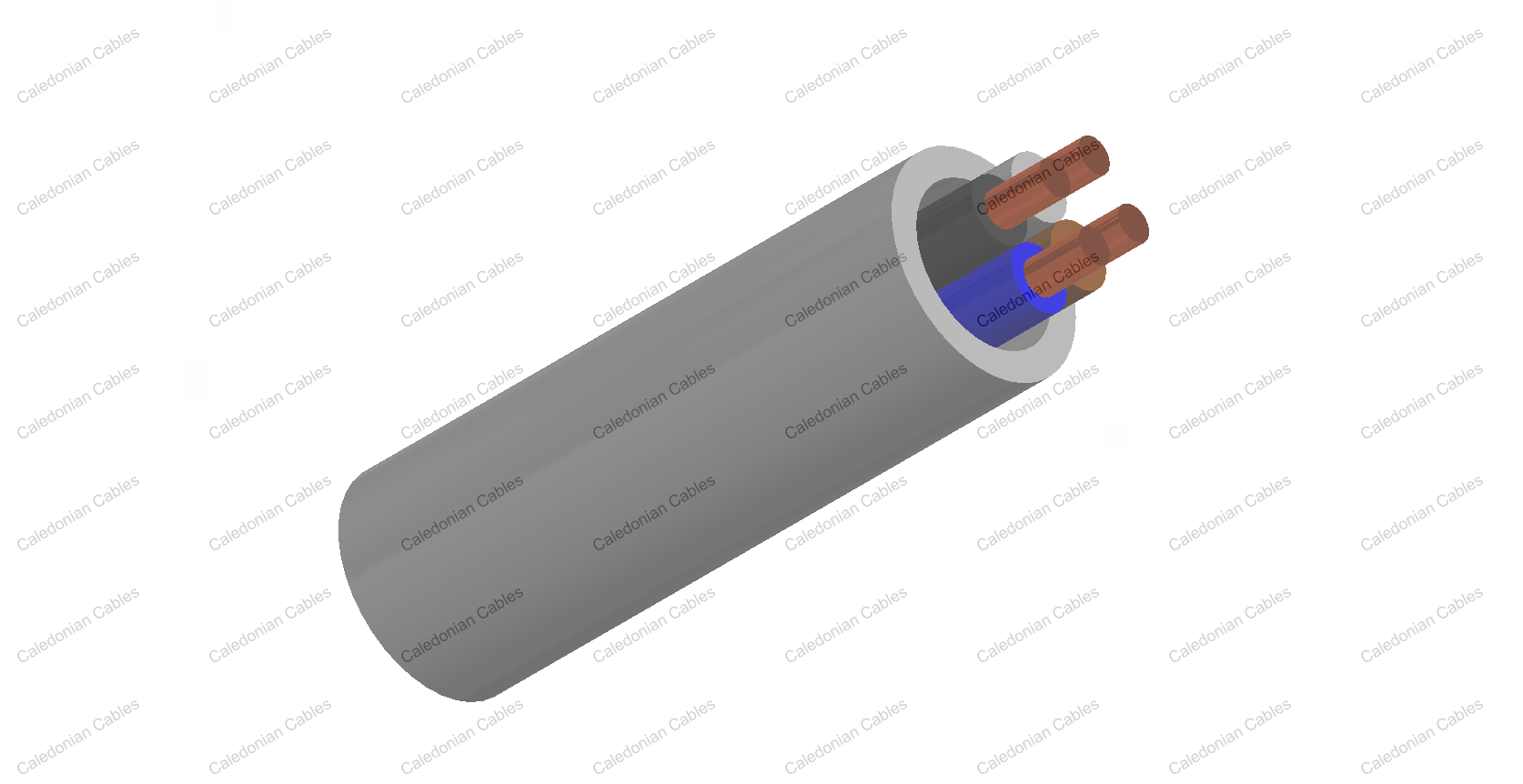

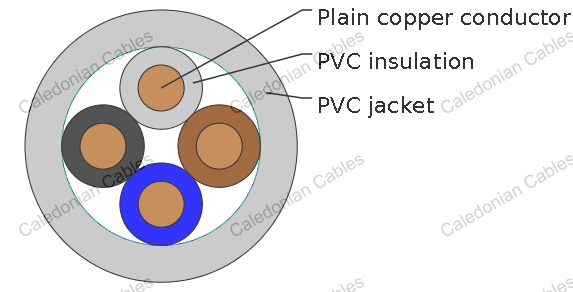

| Solid or stranded, plain copper conductor |
| Strands to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2 |
| PVC insulation TI1 to DIN VDE 0281 part 1 |
| Color coded to DIN VDE 0293-308 |
| Conductors stranded in layer |
| High flexible PVC outer jacket type TM1, according to DIN VDE 0281 part 1 |
| Working voltage | 300/500 V |
| Test voltage | 2000 V |
| Minimum bending radius | 4 x Ø |
| Flexing Temperature | +5º C to +70º C |
| Fixed installation temperature | - 40º C to +70º C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | >20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Cable Weight kg/km |
|---|---|---|---|---|---|---|
| # x mm² | mm | mm | mm | kg/km | kg/km | |
| 16(solid) | 1X1.5 | 0.6 | 1.4 | 5.4 | 14.4 | 40 |
| 16(solid) | 2 X1.5 | 0.6 | 1.4 | 8.7 | 29 | 170 |
| 16(solid) | 3 X1.5 | 0.6 | 1.4 | 9.1 | 43 | 135 |
| 16(solid) | 4 X1.5 | 0.6 | 1.4 | 9.8 | 58 | 160 |
| 16(solid) | 5 X1.5 | 0.6 | 1.4 | 10.3 | 72 | 190 |
| 16(solid) | 7 X1.5 | 0.6 | 1.4 | 11.5 | 101 | 235 |
| 16(solid) | 10 X1.5 | 0.6 | 1.4 | 13.8 | 144 | 330 |
| 16(solid) | 12 X1.5 | 0.6 | 1.4 | 14.4 | 173 | 405 |
| 14(solid) | 1 X2.5 | 0.7 | 1.4 | 6 | 24 | 70 |
| 14(solid) | 3 X2.5 | 0.7 | 1.4 | 10.4 | 72 | 190 |
| 14(solid) | 4 X2.5 | 0.7 | 1.4 | 11.3 | 96 | 230 |
| 14(solid) | 5 X2.5 | 0.7 | 1.4 | 12 | 120 | 270 |
| 14(solid) | 7 X2.5 | 0.7 | 1.6 | 13.2 | 168 | 342 |
| 12(solid) | 1X4 | 0.8 | 1.6 | 6.6 | 38 | 80 |
| 12(solid) | 3 X4 | 0.8 | 1.6 | 12 | 115 | 258 |
| 12(solid) | 4 X4 | 0.8 | 1.6 | 13 | 154 | 330 |
| 12(solid) | 5 X4 | 0.8 | 1.6 | 14.5 | 192 | 410 |
| 10(solid) | 1X6 | 0.8 | 1.6 | 7.2 | 58 | 105 |
| 10(solid) | 3 X6 | 0.8 | 1.6 | 13 | 173 | 320 |
| 10(solid) | 4 X6 | 0.8 | 1.6 | 15.1 | 230 | 460 |
| 10(solid) | 5 X6 | 0.8 | 1.6 | 16.1 | 288 | 540 |
| 8(solid) | 1X10 | 1.0 | 1.6 | 8.4 | 96 | 155 |
| 8(solid) | 4 X10 | 1.0 | 1.6 | 17.6 | 384 | 680 |
| 8(solid) | 5 X10 | 1.0 | 1.6 | 19.2 | 480 | 850 |
| 6(7/14) | 1X16 | 1.2 | 1.8 | 9.9 | 154 | 230 |
| 6(7/14) | 4 X16 | 1.2 | 1.8 | 21.3 | 614 | 1048 |
| 6(7/14) | 5 X16 | 1.2 | 1.8 | 23.4 | 768 | 1280 |
| 4(7/12) | 1x25 | 1.4 | 2.0 | 12 | 240 | 325 |
| 4(7/12) | 4X25 | 1.4 | 2.0 | 25.8 | 960 | 1649 |
| 4(7/12) | 5 X25 | 1.4 | 2.0 | 28.7 | 1200 | 1970 |
| 2(7/10) | 4X35 | 1.4 | 2.0 | 28.5 | 1344 | 2000 |
