N2XRY is used for indoor, ourdoor and underground installation in ducts and in the open where better mechanical protection is required, or for higher tensile stress during installation and operation. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.

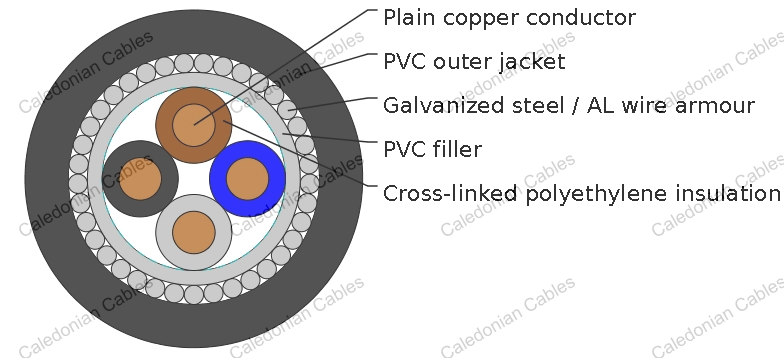

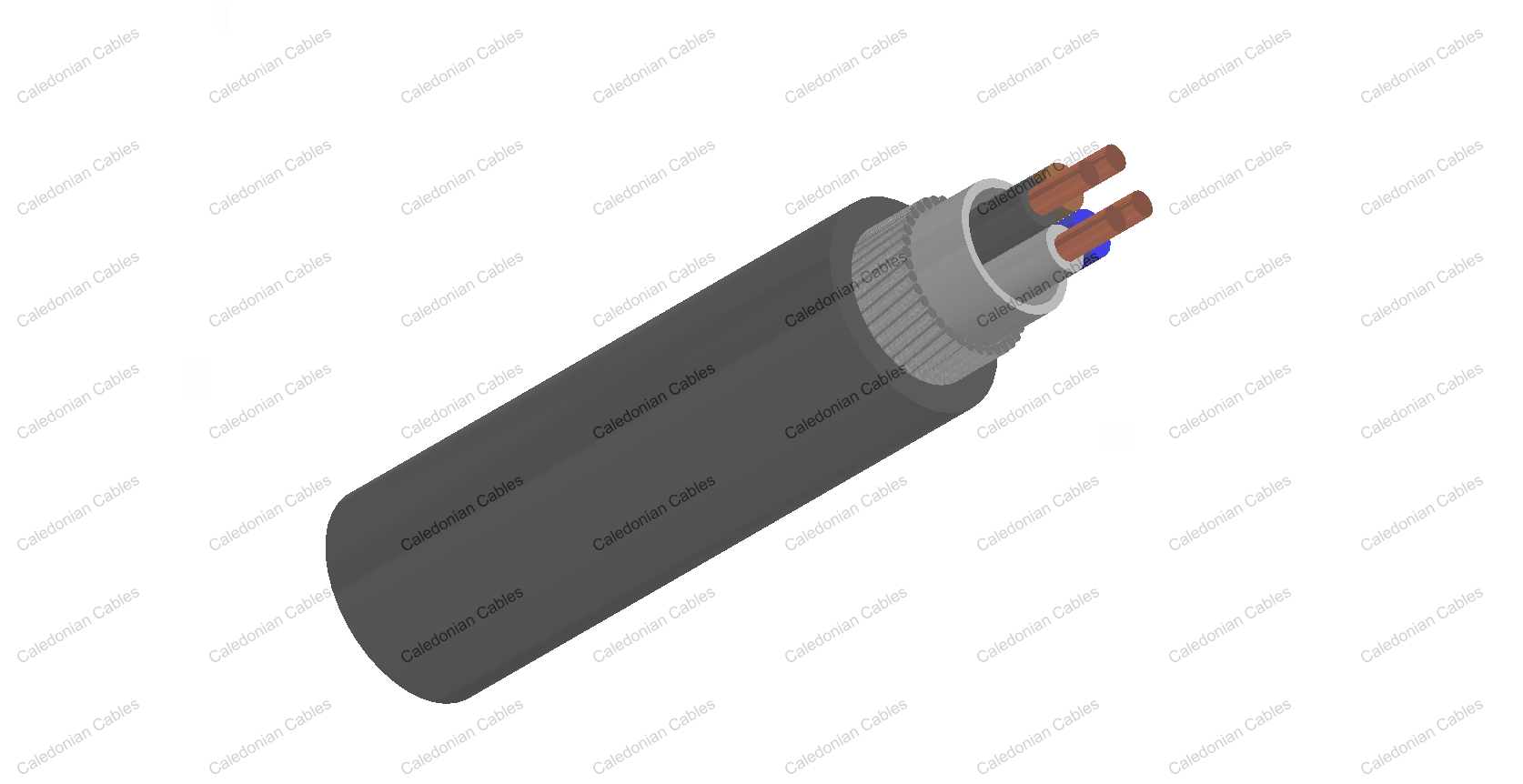

| Solid or stranded, plain copper conductor |
| to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2 |
| Cross-linked polyethylene 2XI1 acc. to VDE 0276-604 |
| Color coded to DIN VDE 0293(HD 308) |
| PVC filler |
| Galvanized round steel / aluminum wire armour |
| PVC outer jacket DMV5 to HD 603.1 |
| Working voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 15 x Ø |
| Flexing Temperature | -5º C to +70º C |
| Fixed installation temperature | - 30º C to +70º C |
| Short circuit temperature | +250º C |
| Flame-retardant | IEC 60332.1 |
| Insulation resistance | >20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Conductor Type | Thickness of Insulation | Thickness of Sheath | Nominal Overall Diameter | Nominal Cable Weight |
|---|---|---|---|---|---|---|
| # x mm² | mm | mm | mm | kg/km | ||
| 4 | 1x25 | rm | 0.9 | 1.8 | 16.6 | 503 |
| 2 | 1x35 | rm | 0.9 | 1.8 | 17.7 | 612 |
| 1 | 1x50 | rm | 1 | 1.8 | 19.5 | 783 |
| 2/0 | 1x70 | rm | 1.1 | 1.8 | 21.5 | 1014 |
| 3/0 | 1x95 | rm | 1.1 | 1.8 | 23.5 | 1280 |
| 4/0 | 1x120 | rm | 1.2 | 1.8 | 26.0 | 1575 |
| 300mcm | 1x150 | rm | 1.4 | 1.8 | 27.5 | 1872 |
| 350mcm | 1x185 | rm | 1.6 | 1.8 | 30.0 | 2294 |
| 500mcm | 1x240 | rm | 1.7 | 1.9 | 33.0 | 2923 |
| 750mcm | 1x300 | rm | 1.8 | 2.1 | 36.0 | 3509 |
| - | 1x400 | rm | 2 | 2 | 40.5 | 4534 |
| - | 1x500 | rm | 2.2 | 2.3 | 45.0 | 5691 |
| - | 1x630 | rm | 2.4 | 2.5 | 49.5 | 7267 |
| - | 1x800 | rm | 0.7 | 1.8 | 56.5 | 9271 |
| 16 | 2x1.5 | re/rm | 0.7 | 1.8 | 13.6 | 325 |
| 14 | 2x2.5 | re/rm | 0.7 | 1.8 | 14.5 | 379 |
| 12 | 2x4 | re/rm | 0.7 | 1.8 | 15.7 | 448 |
| 10 | 2x6 | re/rm | 0.7 | 1.8 | 16.8 | 530 |
| 8 | 2x10 | rm | 0.7 | 1.8 | 19.4 | 783 |
| 6 | 2x16 | rm | 0.7 | 1.8 | 22.0 | 982 |
| 4 | 2x25 | rm | 0.9 | 1.8 | 25.5 | 1447 |
| 2 | 2x35 | rm | 0.9 | 1.8 | 28.0 | 1765 |
| 1 | 2x50 | rm | 1 | 1.9 | 30.5 | 2106 |
| 2/0 | 2x70 | rm | 1.1 | 2 | 35.0 | 2765 |
| 3/0 | 2x95 | rm | 1.1 | 2..2 | 39.5 | 3746 |
| 4/0 | 2x120 | rm | 1.2 | 2.3 | 43.5 | 4465 |
| 300mcm | 2x150 | rm | 1.4 | 2.5 | 47.5 | 5303 |
| 350mcm | 2x185 | rm | 1.6 | 2.6 | 54.0 | 6890 |
| 500mcm | 2x240 | rm | 1.7 | 2.8 | 59.5 | 8463 |
| 750mcm | 2x300 | rm | 1.8 | 3.1 | 65.0 | 10151 |
| 16 | 3x1.5 | re/rm | 0.7 | 1.8 | 14.1 | 351 |
| 14 | 3x2.5 | re/rm | 0.7 | 1.8 | 15.1 | 415 |
| 12 | 3x4 | re/rm | 0.7 | 1.8 | 16.3 | 503 |
| 10 | 3x6 | re/rm | 0.7 | 1.8 | 17.5 | 603 |
| 8 | 3x10 | rm | 0.7 | 1.8 | 20.5 | 903 |
| 6 | 3x16 | rm | 0.7 | 1.8 | 23.0 | 1161 |
| 4 | 3x25 | rm | 0.9 | 1.8 | 27.0 | 1709 |
| 2 | 3x35 | rm | 0.9 | 1.8 | 29.5 | 2127 |
| 1 | 3x50 | sm | 1 | 1.9 | 31.5 | 2424 |
| 2/0 | 3x70 | sm | 1.1 | 1.9 | 36.5 | 3438 |
| 3/0 | 3x95 | sm | 1.1 | 2 | 40.0 | 4343 |
| 4/0 | 3x120 | sm | 1.2 | 2.2 | 43.5 | 5172 |
| 300mcm | 3x150 | sm | 1.4 | 2.3 | 49.5 | 6675 |
| 350mcm | 3x185 | sm | 1.6 | 2.5 | 54.0 | 7977 |
| 500mcm | 3x240 | sm | 1.7 | 2.6 | 60.0 | 9995 |
| 750mcm | 3x300 | sm | 1.8 | 2.8 | 65.0 | 11990 |
| 16 | 4x1.5 | re/rm | 0.7 | 1.8 | 14.9 | 395 |
| 14 | 4x2.5 | re/rm | 0.7 | 1.8 | 16.0 | 470 |
| 12 | 4x4 | re/rm | 0.7 | 1.8 | 17.4 | 575 |
| 10 | 4x6 | re/rm | 0.7 | 1.8 | 19.5 | 798 |
| 8 | 4x10 | rm | 0.7 | 1.8 | 22.0 | 1058 |
| 6 | 4x16 | rm | 0.7 | 1.8 | 25.5 | 1518 |
| 4 | 4x25 | rm | 0.9 | 1.8 | 29.0 | 2055 |
| 2 | 4x35 | rm | 0.9 | 1.9 | 32.0 | 2585 |
| 1 | 4x50 | sm | 1 | 2 | 35.5 | 3040 |
| 2/0 | 4x70 | sm | 1.1 | 2.1 | 41.0 | 4305 |
| 3/0 | 4x95 | sm | 1.1 | 2.2 | 45.0 | 5476 |
| 4/0 | 4x120 | sm | 1.2 | 2.4 | 51.5 | 7064 |
| 300mcm | 4x150 | sm | 1.4 | 2.5 | 57.5 | 8536 |
| 350mcm | 4x185 | sm | 1.6 | 2.7 | 61.5 | 10189 |
| 500mcm | 4x240 | sm | 1.7 | 2.8 | 68.0 | 12772 |
| 750mcm | 4x300 | sm | 1.8 | 3 | 73.5 | 15380 |
| 16 | 5x1.5 | re/rm | 0.7 | 1.8 | 15.8 | 441 |
| 14 | 5x2.5 | re/rm | 0.7 | 1.8 | 17.0 | 535 |
| 12 | 5x4 | re/rm | 0.7 | 1.8 | 19.3 | 768 |
| 10 | 5x6 | re/rm | 0.7 | 1.8 | 21.0 | 921 |
| 8 | 5x10 | rm | 0.7 | 1.8 | 23.5 | 1235 |
| 6 | 5x16 | rm | 0.7 | 1.8 | 27.0 | 1765 |
| 4 | 5x25 | rm | 0.9 | 1.8 | 31.5 | 2423 |
| 2 | 5x35 | rm | 0.9 | 1.9 | 34.5 | 3057 |
| 1 | 5x50 | rm | 1.1 | 2.2 | 40.0 | 4099 |
