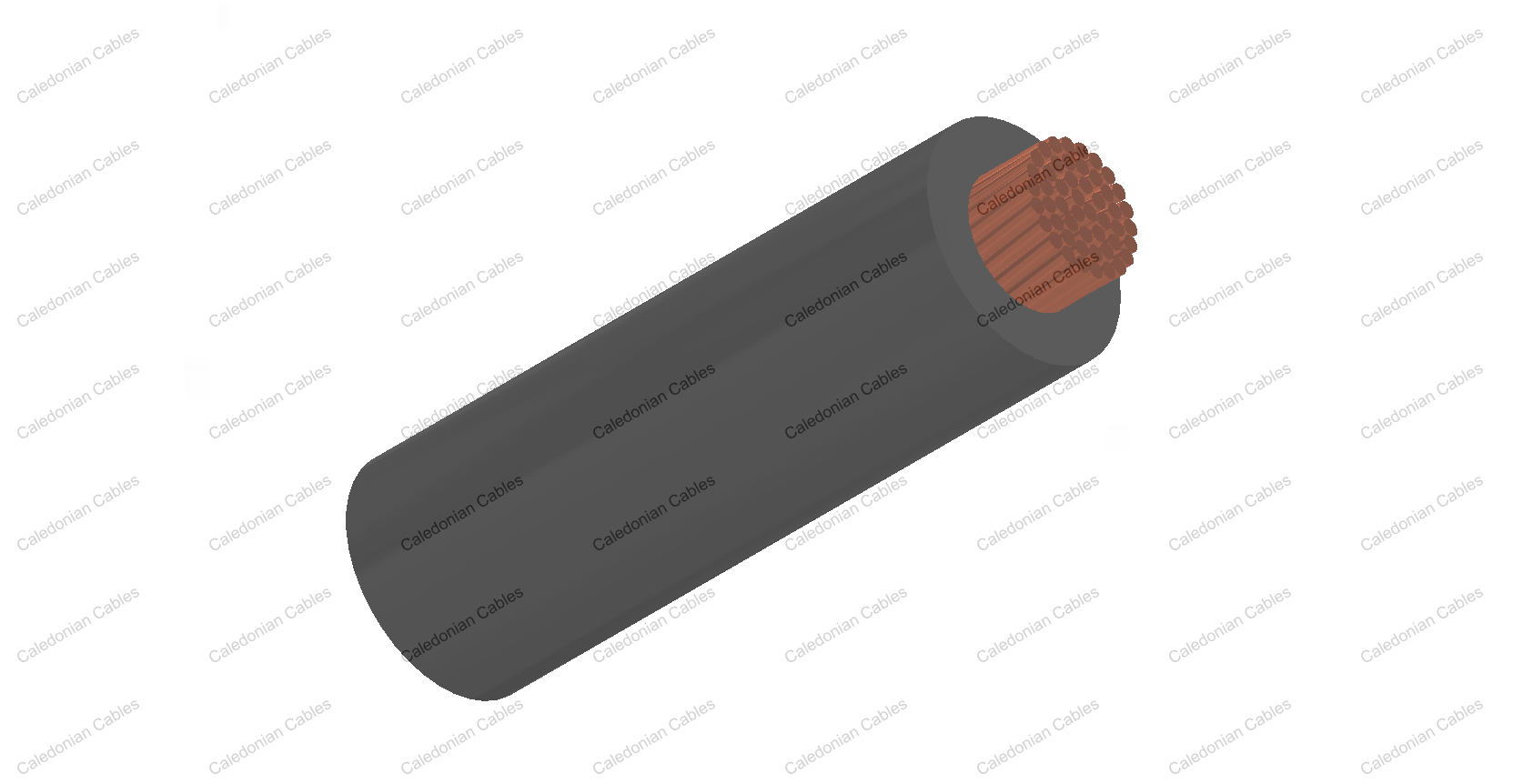

These PVC insulated stranded hook-up wires are employed in telecommunication systems, toys, sports equipment and general wiring equipment used in electrical engineering to meet stringent demands in terms of high and ultra-high flexibility. They are not permitted to be installed in heavy current applications outside of the equipment.
| Tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Cl-5 and HD383 |
| Special PVC core insulation, compound YI3 to DIN VDE 0812 |
| Cores identification to VDE-0293 |
| Working voltage | 0.14 mm² 500 V/0.25-1.50 mm² 900 V |
| Test voltage | 0.14 mm² 1200 V/0.25-1.50 mm² 2500 V |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing Temperature | -5º C to +70º C |
| Static temperature | -30º C to +80º C(temporary 105 º C for LiYv-t) |
| Flame retardant | VDE 0472 part 804, test method B, and IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Copper Weight | Nominal Cable Weight kg/km |
|---|---|---|---|---|
| # x mm² | mm | kg/km | kg/km | |
| 26(18/38) | 1 x 0.14 | 1.1 | 1.4 | 3.0 |
| 24(14/34) | 1 x 0.25 | 1.3 | 2.4 | 4.0 |
| 22(19/34) | 1 x 0.34 | 1.4 | 3.6 | 5.0 |
| 20(16/32) | 1 x 0.50 | 1.8 | 4.8 | 8.0 |
| 18(24/32) | 1 x 0.75 | 2.0 | 7.2 | 10.0 |
| 17(32/32) | 1 x 1.00 | 2.1 | 9.6 | 13.0 |
| 16(30/30) | 1 x 1.50 | 2.6 | 14.4 | 19.0 |
| 14(30/50) | 1 x 2.50 | 3.4 | 24.0 | 31.0 |
