    U-1000 AR2V

    Application and Description

    These cables for energy distribution are suitable for all types of low voltage industrial-type connection, in urban grids, building installations, etc.

    Particularly suited in cases of high operating temperature and when high resistance to solar radiation and atmospheric agents is required. Good resistance to low temperature and chemical agents.

    Can be used without additional mechanical protection in the open air, fixed to walls or in raceways, inside walkways, and in empty in Cable Constructions in general. Can be laid underground with mechanical protection constructed from slabs, tiles, or bricks.

    They are not recommend to lay this cable in ground flooded for more than two months per year. With appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the permitted current load is reduced by 15%. It can be used in ambient temperature down to -25°C.

    Standard and Approval

    • XP C 32-321 (formerly NF C 32-321)
    • EN 60332-1/NF C 32-070

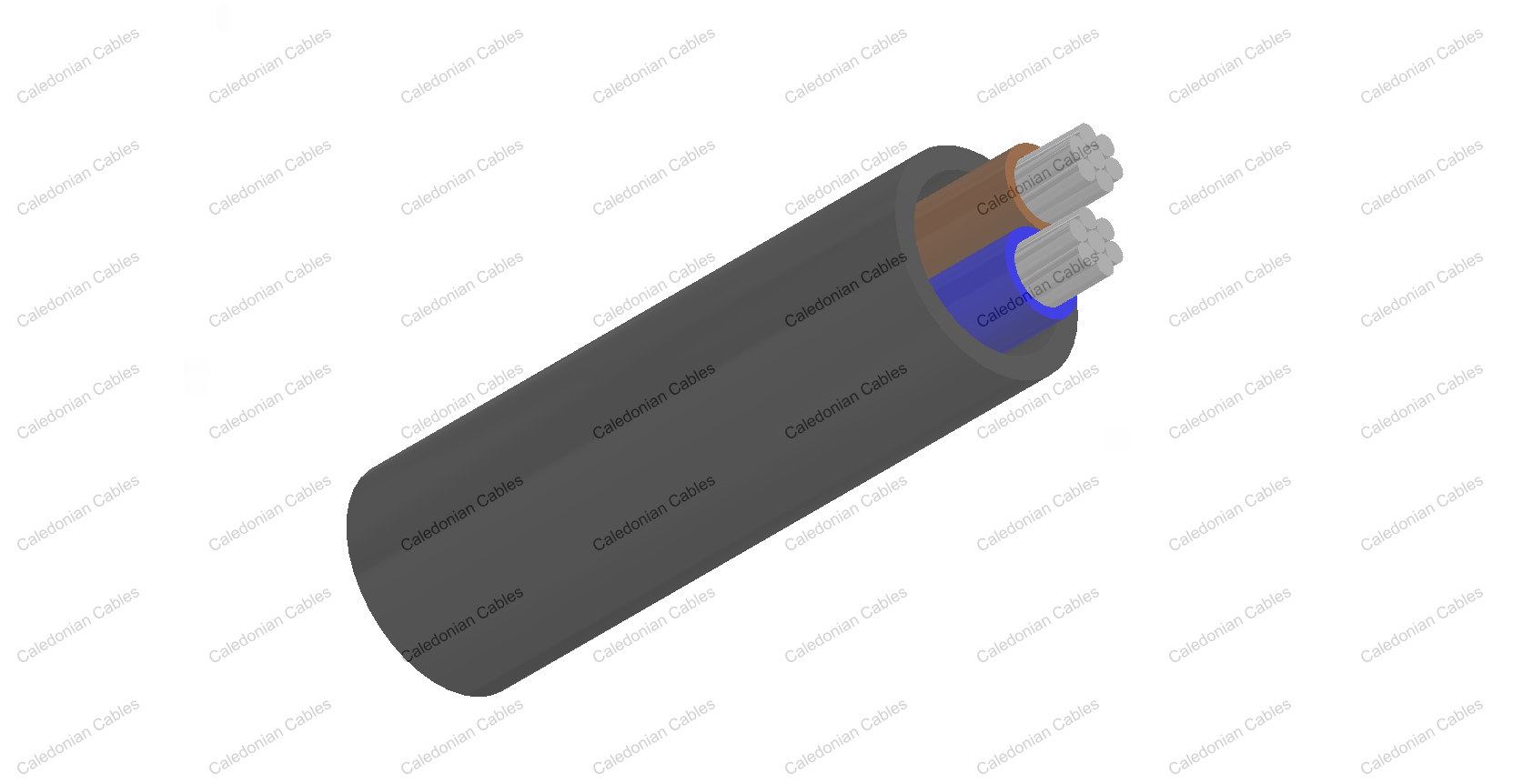

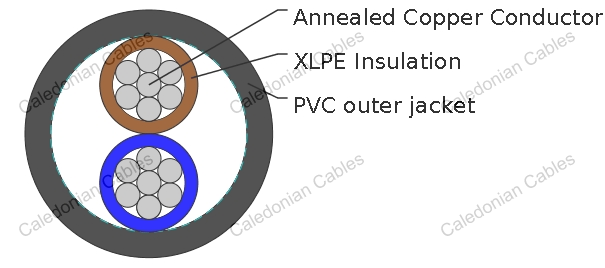

    Cable Construction

    Technical Characteristics

    Flexible aluminum strands
    Strands to IEC 60228 class 2
    XLPE insulation according to XP C 32-321
    Color codes to XP C 32-321
    Not fibrous and not hygroscopic filler
    Flexible black PVC outer jacket



    Working Voltage 600/1000 volts
    Test voltage 1200 volts
    Minimum bending radius 6 x O
    Operation temperature range -10 °C to 60 °C
    Short-circuit temperature 250 °C
    Flame retardant NF C 32-070 C2
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG Cross Section Insulation thickness Minimum Sheath thickness Maximum Overall diameter Approx Cable weight
      mm^2 mm mm mm kg/km
    2 1x35 0.9 1.09 13.5 190
    1 1x50 1 1.09 15 245
    2/0 1x70 1.1 1.09 17 325
    3/0 1x95 1.1 1.18 19 425
    4/0 1x120 1.2 1.18 21 520
    300MCM 1x150 1.4 1.26 23 630
    500MCM 1x185 1.6 1.26 25.5 780
    750MCM 1x240 1.7 1.35 28.5 990
    - 1x300 1.8 1.43 31 1210
    - 1x400 2 1.52 34.2 1510
    - 1x500 2.2 1.6 38 1860
    - 1x630 2.4 1.77 44 2400
    8 2x10 0.7 1.43 16,0 275
    6 2x16 0.7 1.43 18,5 360
    4 2x25 0.9 1.43 22,0 530
    2 2x35 0.9 1.43 24,5 640
    8 3x10 0.7 1.43 17,0 300
    6 3x16 0.7 1.43 19,5 400
    4 3x25 0.9 1.43 23,5 600
    2 3x35 0.9 1.43 26,0 750
    1 3x50 1 1.43 29,0 970
    2/0 3x70 1.1 1.52 34,0 1310
    3/0 3x95 1.1 1.6 38,5 1730
    4/0 3x120 1.2 1.69 42,5 2120
    300MCM 3x150 1.4 1.86 47,5 2640
    500MCM 3x185 1.6 1.94 53,0 3290
    750MCM 3x240 1.7 2.11 59,5 4210
      3x300 1.8 2.28 66,0 5210
    4 4x25 0.9 1.43 25,5 720
    2 4x35 0.9 1.43 28,5 910
    1 3x50+35 1 1.52 31,1 1130
    2/0 3x70+50 1.1 1.6 36,2 1540
    3/0 3x95+50 1.1 1.69 40,6 1940
    4/0 3x120+70 1.2 1.86 45,4 2430
    300MCM 3x150+70 1.4 1.94 49,5 2890
    500MCM 3x185+70 1.6 2.11 54,4 3660
    750MCM 3x240+95 1.7 2.28 61,5 4680
