These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90º C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.
NF C 32-102-9

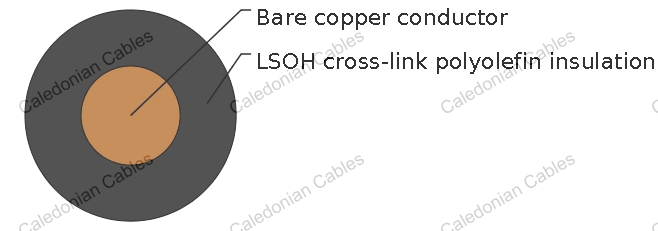

Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U)

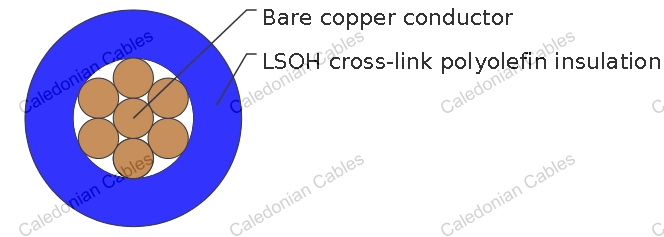

Bare copper strands to IEC 60228 Cl-2 (H07Z-R)

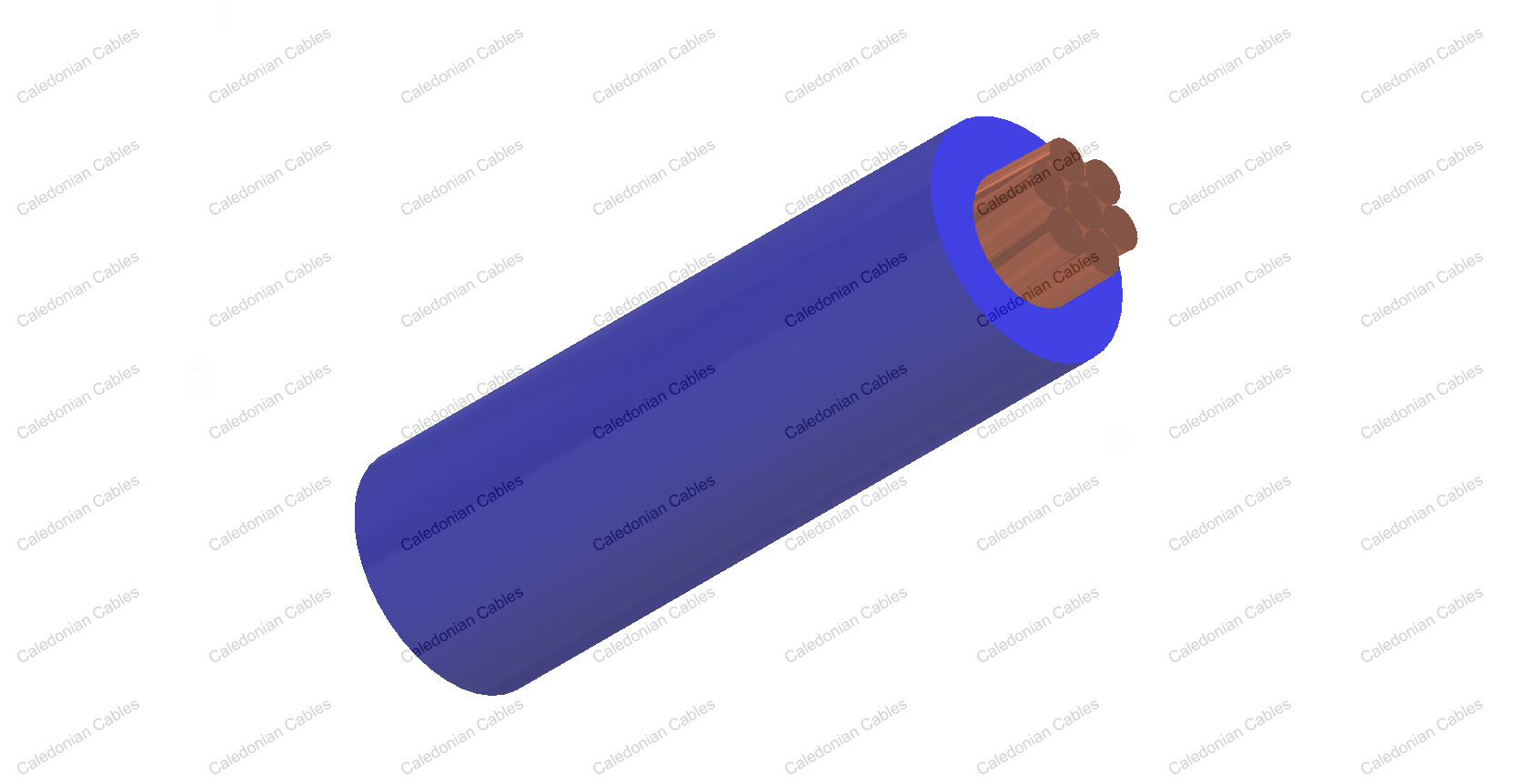

Cross-link polyolefin EI5 core insulation
Cores to VDE-0293 colors
LSOH - low smoke, zero halogen
Working voltage : 300/500v (H05Z-U), 450/750v (H07Z-U / H07Z-R)
Test voltage : 2500 volts
Flexing bending radius : 15 x Ø
Static bending radius : 10 x Ø
Flexing temperature : +5ºC to +90ºC
Short circuit temperature : +250ºC
Flame retardant : NF C 32-070
Insulation resistance : 10 MΩ x km
AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
---|---|---|---|---|---|
# × mm² | mm | mm | kg/km | kg/km | |
05Z-U | |||||
20 | 1 x 0.5 | 0.6 | 2.0 | 4.8 | 8 |
18 | 1 x 0.75 | 0.6 | 2.2 | 7.2 | 12 |
17 | 1 x 1 | 0.6 | 2.3 | 9.6 | 14 |
H07Z-U | |||||
16 | 1 x 1.5 | 0,7 | 2.8 | 14.4 | 20 |
14 | 1 x 2.5 | 0,8 | 3.3 | 24 | 30 |
12 | 1 x 4 | 0,8 | 3.8 | 38 | 45 |
10 | 1 x 6 | 0,8 | 4.3 | 58 | 65 |
8 | 1 x 10 | 1,0 | 5.5 | 96 | 105 |
H07Z-R | |||||
16(7/24) | 1 x 1.5 | 0.7 | 3.0 | 14.4 | 21 |
14(7/22) | 1 x 2.5 | 0.8 | 3.6 | 24 | 33 |
12(7/20) | 1 x 4 | 0.8 | 4.1 | 39 | 49 |
10(7/18) | 1 x 6 | 0.8 | 4.7 | 58 | 71 |
8(7/16) | 1 x 10 | 1 | 6.0 | 96 | 114 |
6(7/14) | 1 x 16 | 1 | 6.8 | 154 | 172 |
4(7/12) | 1 x 25 | 1.2 | 8.4 | 240 | 265 |
2(7/10) | 1 x 35 | 1.2 | 9.3 | 336 | 360 |
1(19/13) | 1 x 50 | 1.4 | 10.9 | 480 | 487 |
2/0(19/11) | 1 x 70 | 1,4 | 12.6 | 672 | 683 |
3/0(19/10) | 1 x 95 | 1,6 | 14.7 | 912 | 946 |
4/0(37/12) | 1 x 120 | 1,6 | 16.0 | 1152 | 1174 |
300MCM(37/11) | 1 x 150 | 1,8 | 17.9 | 1440 | 1448 |
350MCM(37/10) | 1 x 185 | 2,0 | 20.0 | 1776 | 1820 |
500MCM(61/11) | 1 x 240 | 2,2 | 22.7 | 2304 | 2371 |
