    H05VV-F / H05VVH2-F

    Application and Description

    These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications.

    These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts.

    They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.

    Standard and Approval

    • CEI 20-20/5 / 20-35 (EN60332-1) /20-52,
    • 0.5 - 2.5mm^2 to BS6500, 4.0mm^2 to BS7919, 6.0mm^2 generally to BS7919,
    • CENELEC HD21.5, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

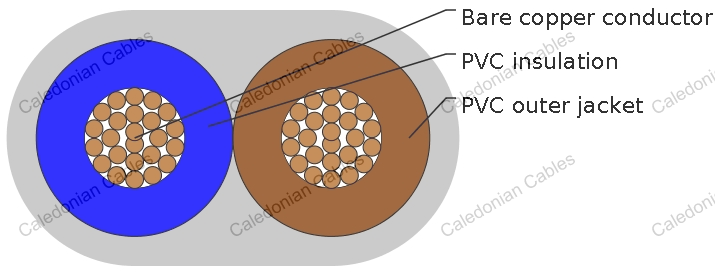

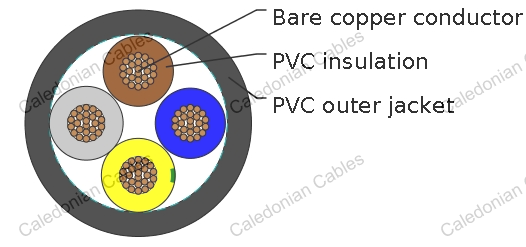

    Cable Construction

    Technical Characteristics

    Bare copper fine wire conductor
    Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
    PVC core insulation TI2 to VDE-0281 Part 1
    Color coded to VDE-0293-308
    Green-yellow grounding (3 conductors and above)
    PVC outer jacket TM2



    Working voltage 300/500 volts
    Test voltage 2000 volts
    Flexing bending radius 7.5 x O
    Static bending radius 4 x O
    Flexing temperature -5oC to +70oC
    Static temperature -40oC to +70oC
    Short circuit temperature +160oC
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm kg/km kg/km
    H05VV-F
    18(24/32) 2 x 0.75 0.6 0.8 6.4 14.4 57
    18(24/32) 3 x 0.75 0.6 0.8 6.8 21.6 68
    18(24/32) 4 x 0.75 0.6 0.8 7.4 29 84
    18(24/32) 5 x 0.75 0.6 0.9 8.5 36 106
    17(32/32) 2 x 1.00 0.6 0.8 6.8 19 65
    17(32/32) 3 x 1.00 0.6 0.8 7.2 29 79
    17(32/32) 4 x 1.00 0.6 0.9 8.0 38 101
    17(32/32) 5 x 1.00 0.6 0.9 8.8 48 123
    16(30/30) 2 x 1.50 0.7 0.8 7.6 29 87
    16(30/30) 3 x 1.50 0.7 0.9 8.2 43 111
    16(30/30) 4 x 1.50 0.7 1.0 9.2 58 142
    16(30/30) 5 x 1.50 0.7 1.1 10.5 72 176
    14(50/30) 2 x 2.50 0.8 1.0 9.2 48 134
    14(50/30) 3 x 2.50 0.8 1.1 10.1 72 169
    14(50/30) 4 x 2.50 0.8 1.1 11.2 96 211
    14(50/30) 5 x 2.50 0.8 1.2 12.4 120 262
    12(56/28) 3 x 4.00 0.8 1.2 11.3 115 233
    12(56/28) 4 x 4.00 0.8 1.2 12.5 154 292
    12(56/28) 5 x 4.00 0.8 1.4 13.7 192 369
    10(84/28) 3 x 6.00 0.8 1.1 13.1 181 328
    10(84/28) 4 x 6.00 0.8 1.3 13.9 230 490
    H05VVH2-F
    18(24/32) 2 x 0.75 0.6 0.8 4.2 x 6.8 14.4 48
    17(32/32) 2 x 1.00 0.6 0.8 4.4 x 7.2 19.2 57
