    H05V2-K / H07V2-K

    Application and Description

    These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.

    Standard and Approval

    • CEI 20-20, CEI20-52, HD 21.7, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

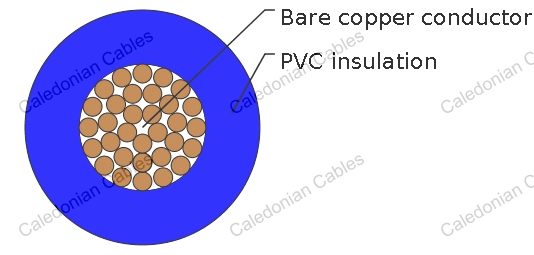

    Cable Construction

    Technical Characteristics

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5 and HD 383
    Special heat resistant PVC TI3 core insulation to DIN VDE 0281 part 7
    Cores to VDE-0293 colors
    H05V2-K (20, 18 & 17 AWG)
    H07V2-K (16 AWG and Larger)



    Working voltage 300/500v (H05V2-K)/ 450/750v (H07V2-K)
    Working voltage Test voltage: 2000 volts
    Flexing bending radius 10-15 x O
    Static bending radius 10-15 x O
    Flexing temperature +5oC to +90oC
    Static temperature -10oC to +105oC
    Short circuit temperature +160oC
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm kg/Km kg/Km
    H05V2-K
    20(16/32) 1 x 0.5 0.6 2.5 4.8 8.7
    18(24/32) 1 x 0.75 0.6 2.7 7.2 11.9
    17(32/32) 1 x 1 0.6 2.8 9.6 14.0
    H07V2-K
    16(30/30) 1 x 1.5 0,7 3.4 14.4 20
    14(50/30) 1 x 2.5 0,8 4.1 24 33.3
    12(56/28) 1 x 4 0,8 4.8 38 48.3
    10(84/28) 1 x 6 0,8 5.3 58 68.5
    8(80/26) 1 x 10 1,0 6.8 96 115
    6(128/26) 1 x 16 1,0 8.1 154 170
    4(200/26) 1 x 25 1,2 10.2 240 270
    2(280/26) 1 x 35 1,2 11.7 336 367
    1(400/26) 1 x 50 1,4 13.9 480 520
    2/0(356/24) 1 x 70 1,4 16 672 729
    3/0(485/24) 1 x 95 1,6 18.2 912 962
    4/0(614/24) 1 x 120 1,6 20.2 1115 1235
    300 MCM (765/24) 1 x 150 1,8 22.5 1440 1523
    350 MCM (944/24) 1 x 185 2,0 24.9 1776 1850
    500MCM(1225/24) 1 x 240 2,2 28.4 2304 2430
