    H05V-K

    Application and Description

    These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

    Standard and Approval

    • CEI 20-20/3, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.3 S3
    • CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

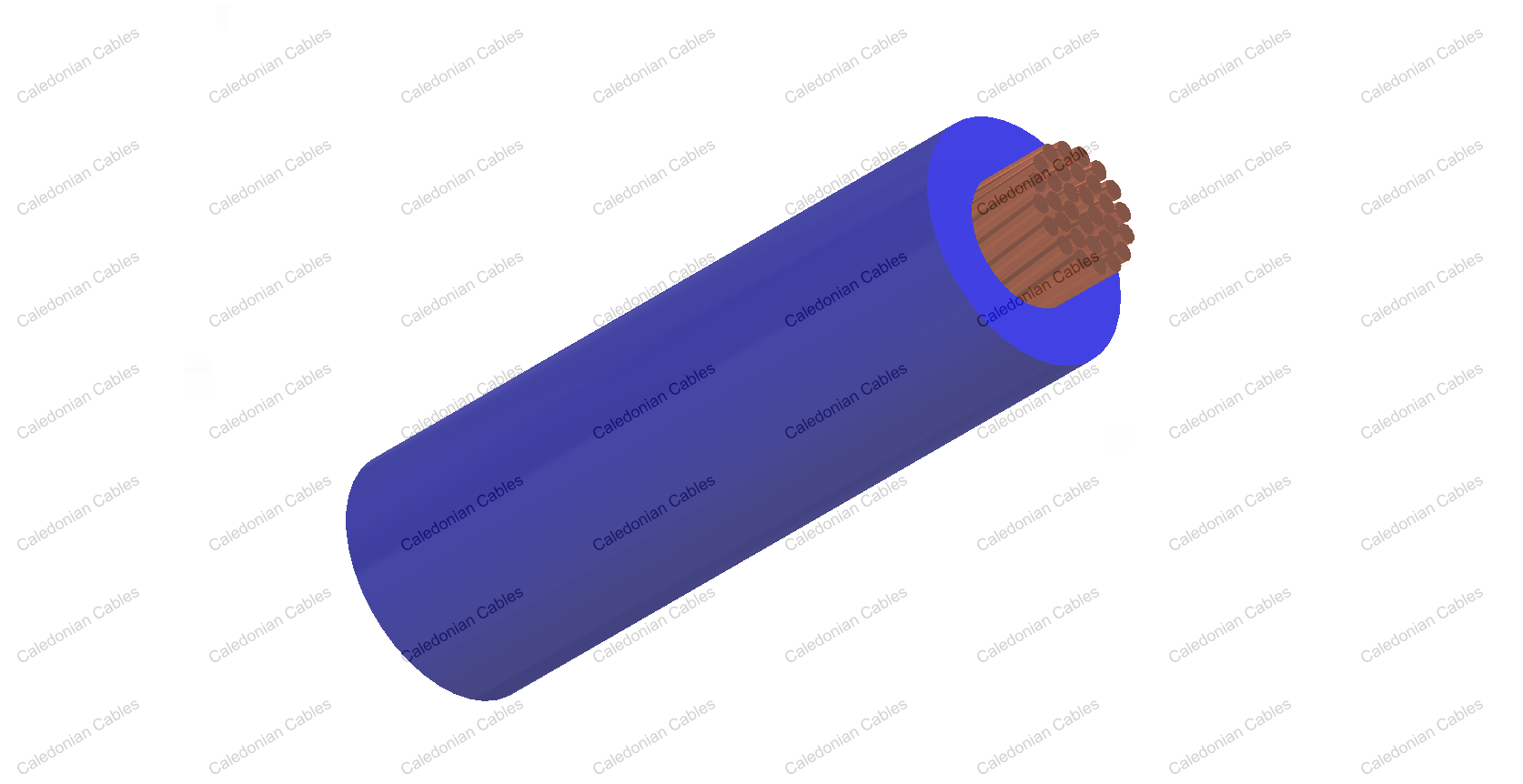

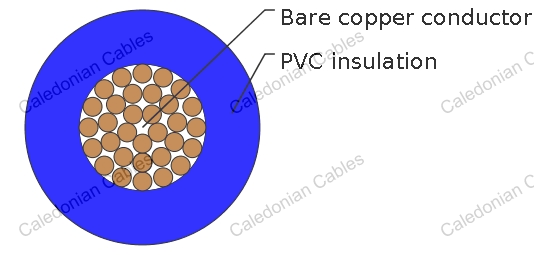

    Cable Construction

    Technical Characteristics

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Special PVC TI1 core insulation
    Cores to VDE-0293 colors on chart



    Working voltage 300/500v
    Test voltage 2000 volts
    Flexing bending radius 12.5 x O
    Static bending radius 12.5 x O
    Flexing temperature -5oC to +70oC
    Static temperature -30oC to +80oC
    Flame retardant IEC 60332.1
    Insulation resistance 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm kg/km kg/km
    20(16/32) 1 x 0.5 0.6 2.1 4.9 10
    18(24/32) 1 x 0.75 0.6 2.4 7.2 13
    17(32/32) 1 x 1 0.6 2.6 9.6 15
