    H05RN-F / H05RNH2-F

    Application and Description

    These cables are flexible, mainly recommended for use in electrical equipment under low stress in dry, damp and wet areas in indoor or outdoor environments.

    Commonly used for connection of electrical appliances when exposed to low mechanical strain in household, offices and for light utilities. Anywhere where there is minimal physical damage. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts.

    Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. They are ozone resistant, oil &fat resistant.

    Standard and Approval

    • CEI 20-19 p.4, CEI 20-35(EN 60332-1), CE low voltage directive 73/23/EEC & 93/68/EEC.,
      IEC 60245-4, ROHS compliant

    Cable Construction

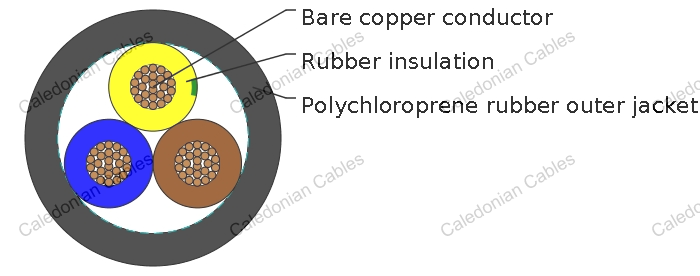

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Rubber core insulation EI4 to VDE-0282 Part-1
    Color code VDE-0293-308
    Green-yellow grounding, 3 conductors and above
    Polychloroprene rubber (neoprene) jacket EM2





    Working voltage 300/500 volts
    Test voltage 2000 volts
    Flexing bending radius 7.5 x O
    Fixed bending radius 4.0 x O
    Temperature Range -30oC to +60oC
    Short circuit temperature +200 oC
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Technical Characteristics

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm (min-max) kg/km kg/km
    H05RN-F
    18(24/32) 2 x 0.75 0.6 0.8 5.7 - 7.4 14.4 80
    18(24/32) 3 x 0.75 0.6 0.9 6.2 - 8.1 21.6 95
    18(24/32) 4 x 0.75 0.6 0.9 6.8 - 8.8 30 105
    17(32/32) 2 x 1 0.6 0.9 6.1 - 8.0 19 95
    17(32/32) 3 x 1 0.6 0.9 6.5 - 8.5 29 115
    17(32/32) 4 x 1 0.6 0.9 7.1 – 9.2 38 142
    16(30/30) 3 x 1.5 0.8 1.0 8.6 - 11.0 29 105
    16(30/30) 4 x 1.5 0.8 1.1 9.5 - 12.2 39 129
    16(30/30) 5 x 1.5 0.8 1.1 10.5 - 13.5 48 153

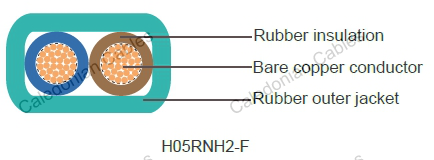

    H05RNH2-F
    16(30/30) 2 x 1.5 0.6 0.8 5.25±0.15x13.50±0.30 14.4 80
    14(50/30) 2 x 2.5 0.6 0.9 5.25±0.15x13.50±0.30 21.6 95
