These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.
NF C 32-102-7

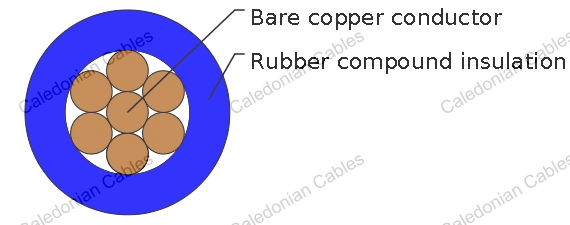

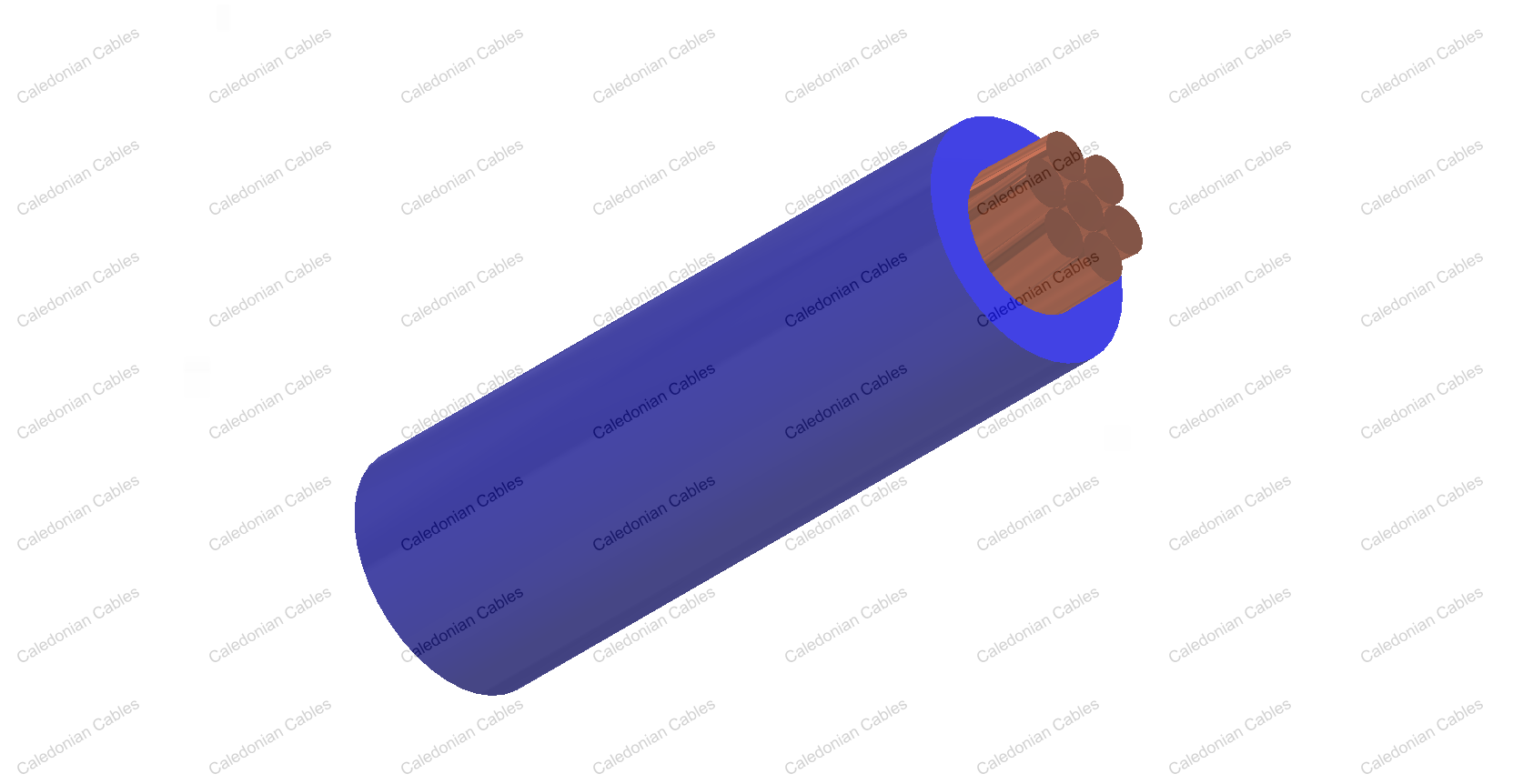

Solid bare copper / strands
Strands to VDE-0295 Class-1/2, IEC 60228 Class-1/2
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors
Working voltage : 300/500v (H05G-U), 450/750v (H07G-U/R)
Test voltage : 2000volts (H05G-U), 2500 volts (H07G-U/R)
Flexing bending radius : 7 x Ø
Static bending radius : 7 x Ø
Flexing temperature : -25ºC to +110ºC
Static temperature : -40ºC to +110ºC
Short circuit Temperature : +160ºC
Flame retardant : NF C 32-070
Insulation resistance : 10 MΩ x km
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|---|
| # × mm² | mm | mm | kg/km | kg/km | |
| H05G-U | |||||
| 20 | 1 x 0.5 | 0.6 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 0.6 | 2.3 | 7.2 | 12 |
| 17 | 1 x 1 | 0.6 | 2.5 | 9.6 | 15 |
| H07G-U | |||||
| 16 | 1 x 1.5 | 0.8 | 3.1 | 14.4 | 21 |
| 14 | 1 x 2.5 | 0.9 | 3.6 | 24 | 32 |
| 12 | 1 x 4 | 1.0 | 4.3 | 38 | 49 |
| H07G-R | |||||
| 10(7/18) | 1 x 6 | 1.0 | 5.2 | 58 | 70 |
| 8(7/16) | 1 x 10 | 1.2 | 6.5 | 96 | 116 |
| 6(7/14) | 1 x 16 | 1.2 | 7.5 | 154 | 173 |
| 4(7/12) | 1 x 25 | 1.4 | 9.2 | 240 | 268 |
| 2(7/10) | 1 x 35 | 1.4 | 10.3 | 336 | 360 |
| 1(19/13) | 1 x 50 | 1.6 | 12.0 | 480 | 487 |
