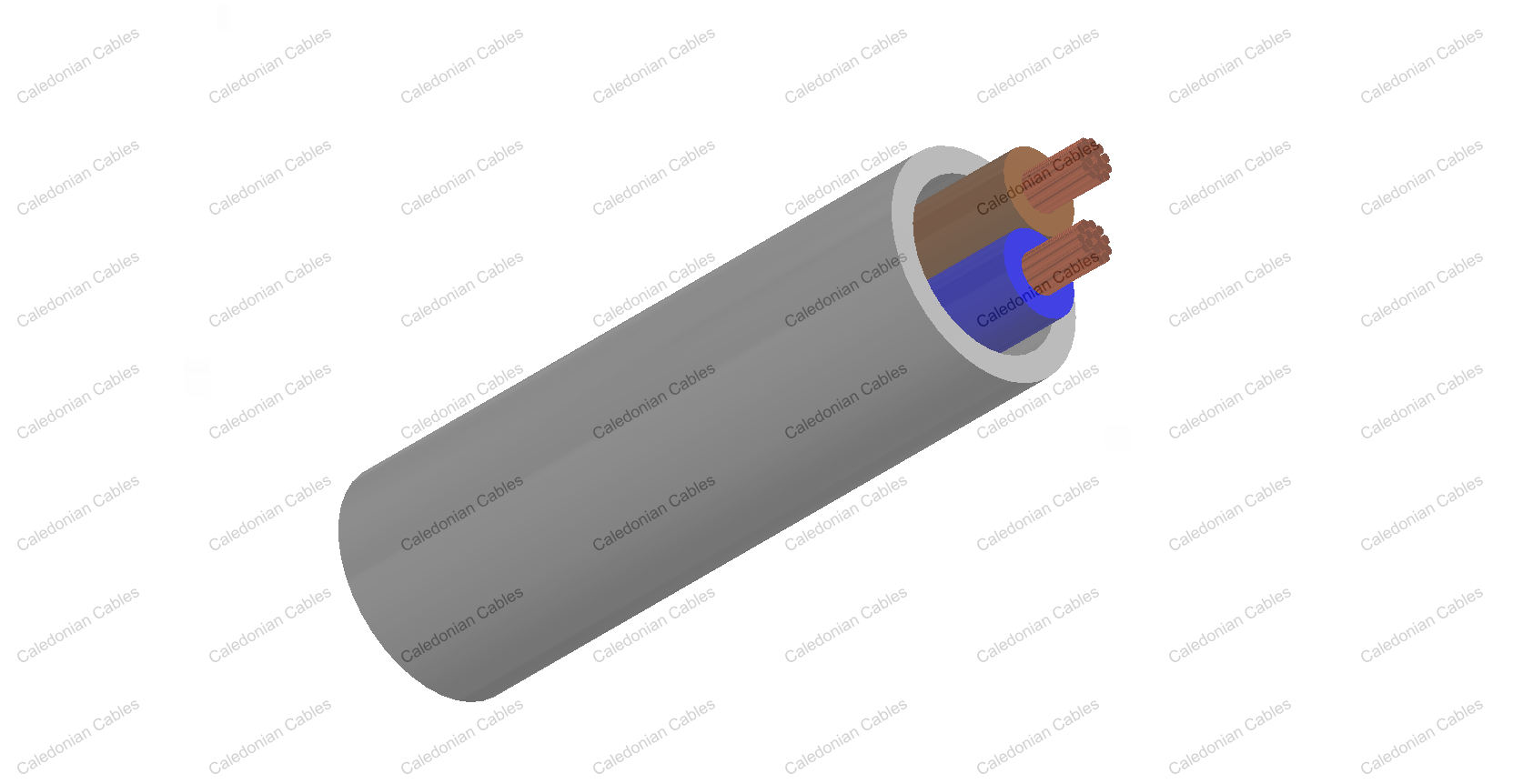

    H03VV-F / H03VVH2-F

    Application and Description

    These cable types are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.

    Standard and Approval

    NF C 32-201-5

    CE low voltage directive 73/23/EEC & 93/68/EEC.ROHS compliant

    Cable Construction

    Bare copper fine wire conductor

    Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

    PVC core insulation T12 to VDE-0281 Part 1

    Color coded to VDE-0293-308

    Green-yellow grounding (3 conductors and above)

    PVC outer jacket TM2

    Technical Characteristics

    Working voltage : 300/300 volts

    Test voltage : 2000 volts

    Flexing bending radius : 7.5 x Ø

    Static bending radius : 4 x Ø

    Flexing temperature : -5ºC to +70ºC

    Static temperature : -40ºC to +70ºC

    Short circuit temperature : +160ºC

    Flame retardant : NF C 32-070

    Insulation resistance : 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # × mm² mm mm mm kg/km kg/km
    H03VV-F
    20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
    20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
    20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
    18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
    18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
    18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72
    18(24/32) 5 x 0.75 0.5 0.6 7.1 36.0 87

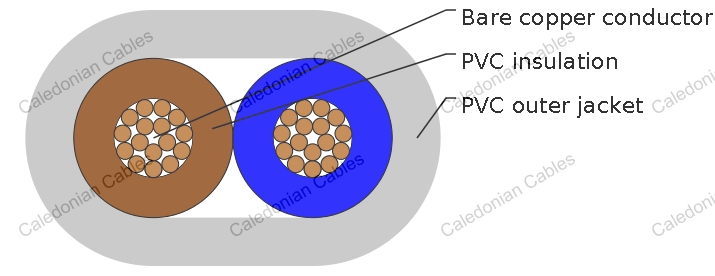

    H03VVH2-F
    20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
    18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35
