    H03V2V2-F / H03V2V2H2-F

    Application and Description

    These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools.

    The maximum conductor temperature in normal use:90°C.While high temperature use, skin contact must be avoided.

    Standard and Approval

    • CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

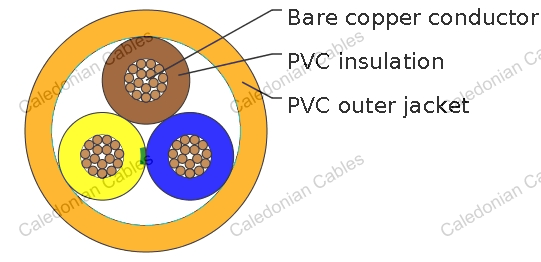

    Cable Construction



    Bare copper fine wire conductor
    Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
    PVC core insulation TI3 to VDE-0281 Part 1
    Color coded to VDE-0293-308
    PVC outer jacket TM3


    Technical Characteristics

    Working voltage 300/300 volts
    Test voltage 3000 volts
    Flexing bending radius 15 x O
    Static bending radius 4 x O
    Flexing temperature +5oC to +90oC
    Static temperature -40oC to +90oC
    Short circuit temperature +160oC
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm kg/km kg/km

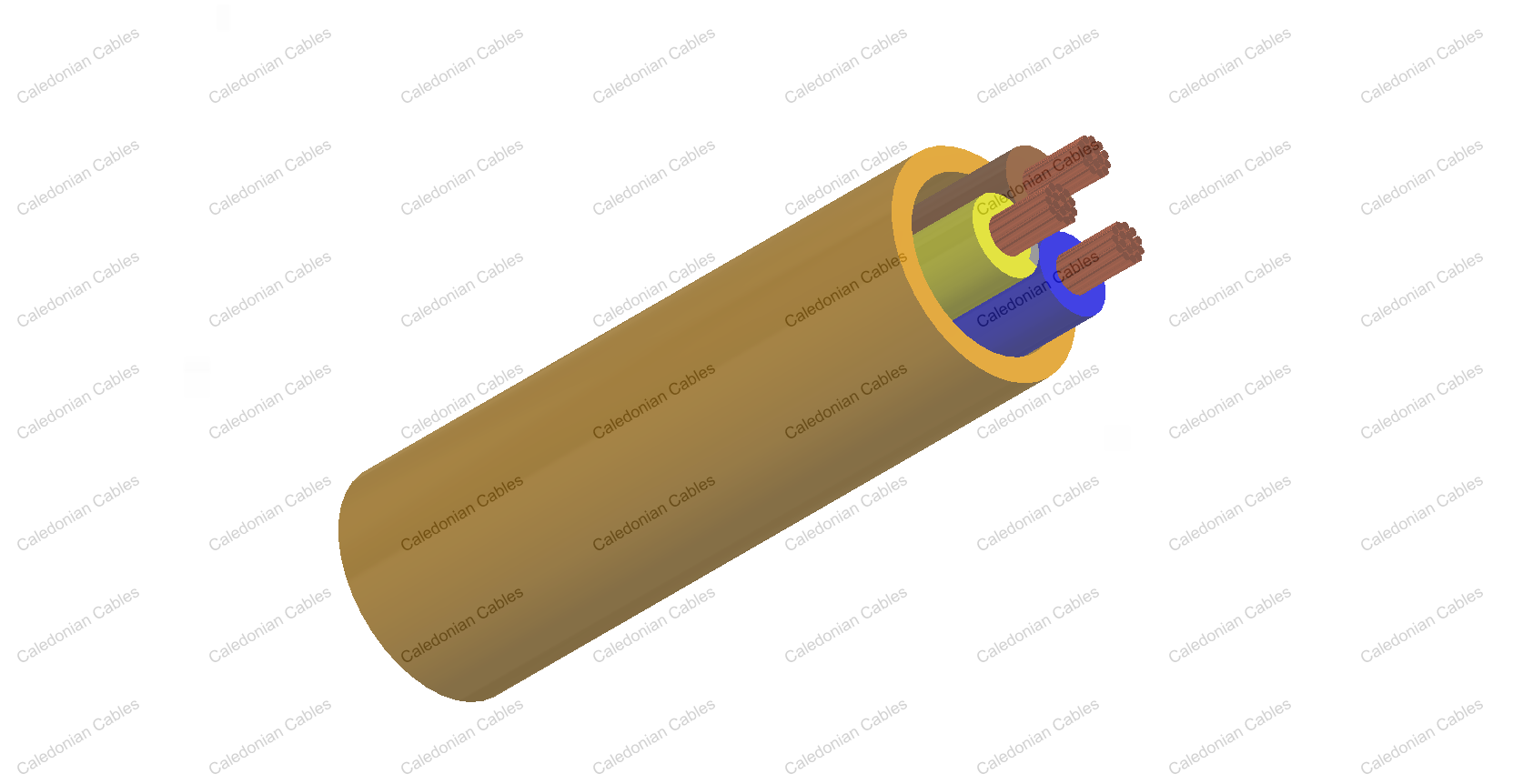

    H03V2V2-F
    20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
    20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
    20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
    18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
    18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
    18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72

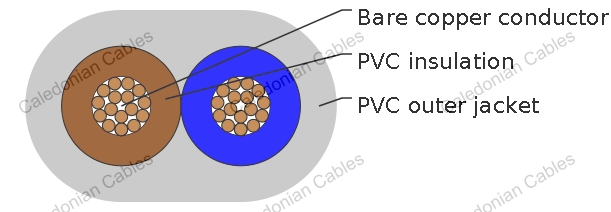

    H03V2V2H2-F
    20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
    18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35
