    6591TQ to BS 6883

    Application and Description

    These cables are designed for use in offshore applications where mechanical protection is not required. Examples of application include fixed wiring in ships and fixed offshore drilling rigs and oil platforms.

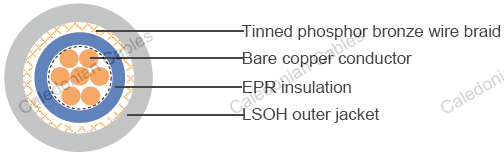

    Cable Construction

    • - Fine bare copper strands
    • - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
    • - EPR(Ethylene Propylene Rubber) rubber insulation to BS 7655
    • - TPBWB (Tinned phosphor bronze wire braid) non-magnetic armour
    • - LSOH (Low Smoke Zero Halogen), type SW4 to BS 7655

    Core Identification

    1 core: Black or red

    Technical Characteristics

    • - Working voltage: 600/1000 volts
    • - Test voltage: 3500 volts
    • - Minimum bending radius: up to 10mm^2 - 3xOverall diameter
      10mm^2-25mm^2 - 4xOverall diameter
      Above 25mm^2 - 6xOverall diameter
    • - Temperature Range: -25o C to +85o C
    • - Oxygen Index32%, HCL 5%
    • - Flame retardant: IEC 60332.3

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Thickness
    of
    Bedding
    mm
    Diameter
    of Braid
    Wire
    mm
    Nominal
    Thickness of
    Sheath
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    17(7/26) 1x1.0 0.8 1 0.3 1 8.8 135
    16(7/24) 1x1.5 0.8 1 0.3 1.1 9.3 145
    14(7/22) 1x2.5 0.8 1 0.3 1.1 9.8 165
    12(7/20) 1x4 1 1 0.3 1.1 10.8 190
    10(7/18) 1x6 1 1 0.3 1.1 11.4 225
    8(7/16) 1x10 1 1 0.3 1.2 13.1 315
    6(7/14) 1x16 1 1 0.3 1.2 14.2 395
    4(7/12) 1x25 1.2 1.2 0.3 1.3 16.7 565
    2(7/10) 1x35 1.2 1.2 0.3 1.4 17.8 670
    1(19/13) 1x50 1.4 1.4 0.3 1.4 19.7 865
    2/0(19/11) 1x70 1.4 1.4 0.3 1.5 22.1 1120
    3/0(19/10) 1x95 1.6 1.6 0.3 1.6 24.4 1440
    4/0(37/12) 1x120 1.6 1.6 0.3 1.7 26.6 1780
    300MCM
    (37/11)
    1x150 1.8 1.8 0.3 1.8 28.9 2120
    350MCM
    (37/10)
    1x185 2 2 0.45 1.9 32.5 2700
    500MCM
    (61/11)
    1x240 2.2 2.2 0.45 2 36 3410
    -(61/10) 1x300 2.4 2.4 0.45 2.2 39.4 4180
    -(61/9) 1x400 2.6 2.6 0.45 2.3 43.9 5280
    -(61/8) 1x500 2.8 2.8 0.45 2.5 48.1 6480
    -(127/10) 1x630 2.8 2.8 0.45 2.6 52.3 7820
