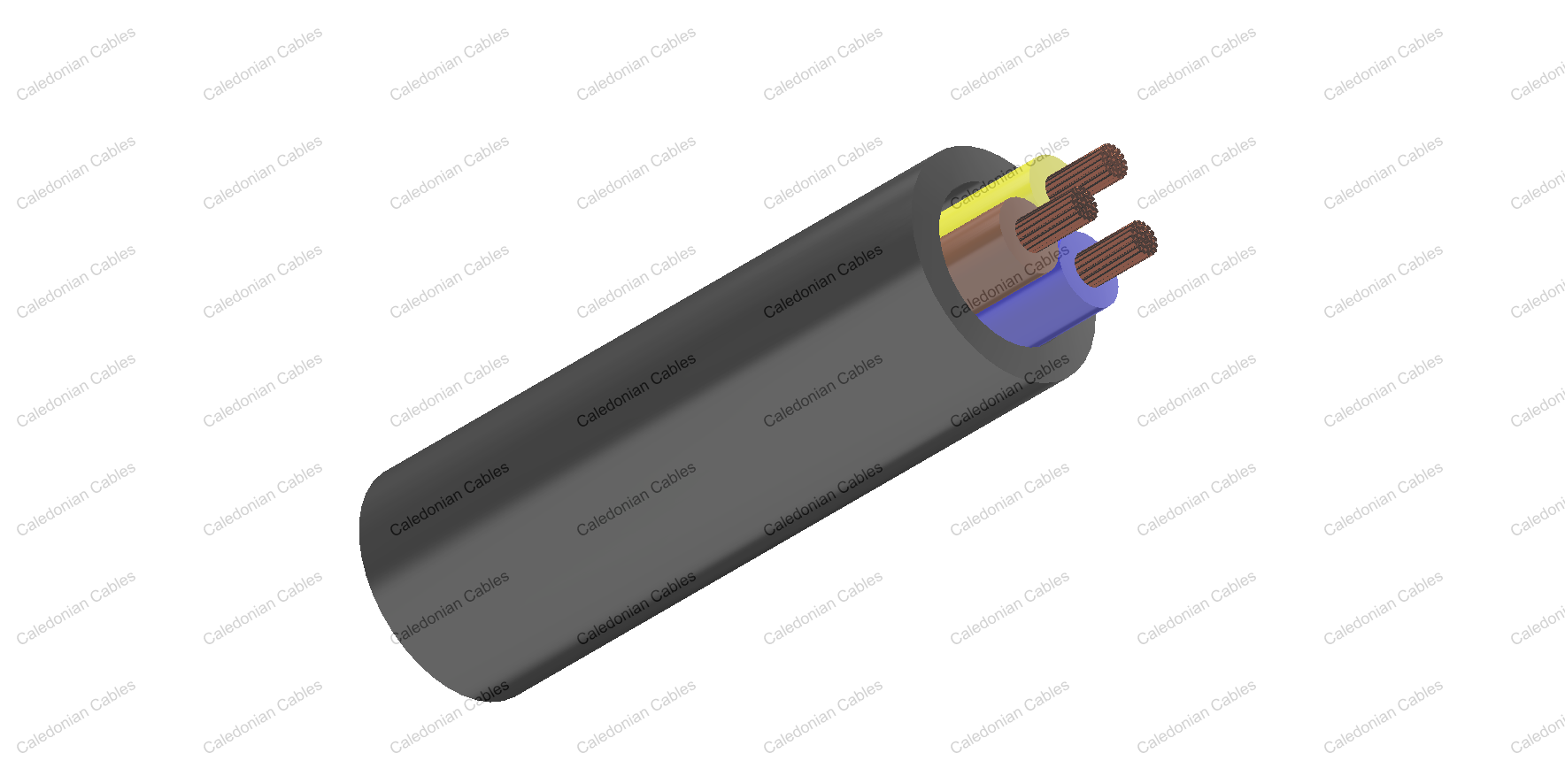

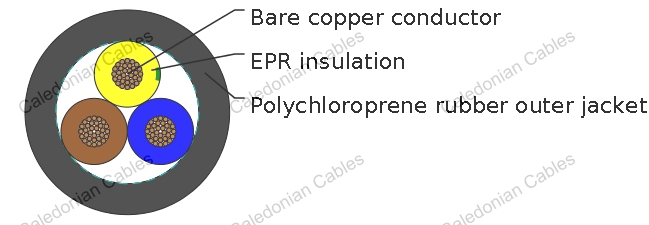

These cables are can be used either in dry, humid or wet places, in contact with oil or grease, in weather conditions and under medium mechanical stress. They are suitable for power supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such as drilling machines, disk saws, portable engines and machines, building and farming equipments etc. These cables are also suitable for stationary equipments designed for wind-tower application. The particular cable construction and the special sheath materials have improved the cable torsion resistance (max150°/m), which is a key requirement for drop cables in wind-generators. The cables are also suitable on plaster in temporary buildings and builders huts, and wiring in machinery elevators. 638TQ is equivalent to harmonized code H07BN4-F.
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 6381TQ | |||||
| 16(30/30) | 1x1.5 | 0.8 | 1.4 | 5.9 | 50 |
| 14(50/30) | 1x2.5 | 0.9 | 1.4 | 6.5 | 65 |
| 12(56/28) | 1x4 | 1 | 1.5 | 7.8 | 105 |
| 10(84/28) | 1x6 | 1 | 1.6 | 9 | 130 |
| 8(80/26) | 1x10 | 1.2 | 1.8 | 10.8 | 200 |
| 6(128/26) | 1x16 | 1.2 | 1.9 | 12.1 | 275 |
| 4(200/26) | 1x25 | 1.4 | 2 | 14.1 | 400 |
| 2(280/26) | 1x35 | 1.4 | 2.2 | 15.9 | 520 |
| 1(400/26) | 1x50 | 1.6 | 2.4 | 18.5 | 730 |
| 2/0(356/24) | 1x70 | 1.6 | 2.6 | 21 | 980 |
| 3/0(485/24) | 1x95 | 1.8 | 2.8 | 23.9 | 1270 |
| 4/0(614/24) | 1x120 | 1.8 | 3 | 25.8 | 1570 |
| 300 MCM (765/24) | 1x150 | 2 | 3.2 | 28.6 | 1960 |
| 350 MCM (944/24) | 1x185 | 2.2 | 3.4 | 31.5 | 2380 |
| 500MCM(1225/24) | 1x240 | 2.4 | 3.5 | 35.1 | 3100 |
| -(1525/24) | 1x300 | 2.6 | 3.6 | 38.7 | 3790 |
| -(2013/24) | 1x400 | 2.8 | 3.8 | 43.5 | 4880 |
| -(1769/23) | 1x500 | 3 | 4 | 47.8 | 6070 |
| -(2257/23) | 1x630 | 3 | 4.1 | 51.5 | 7460 |
| 6382TQ | |||||
| 17(32/32) | 2x1 | 0.8 | 1.3 | 8.2 | 93 |
| 16(30/30) | 2x1.5 | 0.8 | 1.5 | 9.3 | 118 |
| 14(50/30) | 2x2.5 | 0.9 | 1.7 | 10.9 | 172 |
| 12(56/28) | 2x4 | 1 | 1.8 | 13.2 | 275 |
| 10(84/28) | 2x6 | 1 | 2 | 15.6 | 370 |
| 8(80/26) | 2x10 | 1.2 | 3.1 | 20.6 | 690 |
| 6(128/26) | 2x16 | 1.2 | 3.3 | 23.3 | 910 |
| 4(200/26) | 2x25 | 1.4 | 3.6 | 27.4 | 1290 |
| 6383TQ | |||||
| 17(32/32) | 3x1 | 0.8 | 1.4 | 8.9 | 114 |
| 16(30/30) | 3x1.5 | 0.8 | 1.6 | 10 | 144 |
| 14(50/30) | 3x2.5 | 0.9 | 1.8 | 11.7 | 210 |
| 12(56/28) | 3x4 | 1 | 1.9 | 14.1 | 335 |
| 10(84/28) | 3x6 | 1 | 2.1 | 16.6 | 450 |
| 8(80/26) | 3x10 | 1.2 | 3.3 | 22.1 | 835 |
| 6(128/26) | 3x16 | 1.2 | 3.5 | 24.8 | 1120 |
| 4(200/26) | 3x25 | 1.4 | 3.8 | 29.3 | 1600 |
| 2(280/26) | 3x35 | 1.4 | 4.1 | 32.9 | 2080 |
| 1(400/26) | 3x50 | 1.6 | 4.5 | 38.5 | 2890 |
| 2/0(356/24) | 3x70 | 1.6 | 4.8 | 43.6 | 3850 |
| 3/0(485/24) | 3x95 | 1.8 | 5.3 | 50 | 4970 |
| 4/0(614/24) | 3x120 | 1.8 | 5.6 | 53.9 | 6350 |
| 300 MCM (765/24) | 3x150 | 2 | 6 | 59.9 | 7700 |
| 350 MCM (944/24) | 3x185 | 2.2 | 6.4 | 65.9 | 9350 |
| 500MCM(1225/24) | 3x240 | 2.4 | 7.1 | 74.7 | 1200 |
| -(1525/24) | 3x300 | 2.6 | 7.7 | 83.2 | 14910 |
| 6384TQ | |||||
| 17(32/32) | 4x1 | 0.8 | 1.5 | 9.8 | 139 |
| 16(30/30) | 4x1.5 | 0.8 | 1.7 | 11 | 177 |
| 14(50/30) | 4x2.5 | 0.9 | 1.9 | 12.8 | 257 |
| 12(56/28) | 4x4 | 1 | 2 | 15.5 | 420 |
| 10(84/28) | 4x6 | 1 | 2.3 | 18.5 | 565 |
| 8(80/26) | 4x10 | 1.2 | 3.4 | 24.1 | 1020 |
| 6(128/26) | 4x16 | 1.2 | 3.6 | 27.1 | 1380 |
| 4(200/26) | 4x25 | 1.4 | 4.1 | 32.5 | 2140 |
| 2(280/26) | 4x35 | 1.4 | 4.4 | 36.5 | 2610 |
| 1(400/26) | 4x50 | 1.6 | 4.8 | 42.6 | 3650 |
| 2/0(356/24) | 4x70 | 1.6 | 5.2 | 48.6 | 4880 |
| 3/0(485/24) | 4x95 | 1.8 | 5.9 | 56 | 6390 |
| 4/0(614/24) | 4x120 | 1.8 | 6 | 59.9 | 7750 |
| 300 MCM (765/24) | 4x150 | 2 | 6.5 | 66.8 | 9780 |
| 350 MCM (944/24) | 4x185 | 2.2 | 7 | 73.5 | 11900 |
| 500MCM(1225/24) | 4x240 | 2.4 | 7.7 | 83.2 | 15330 |
| -(1525/24) | 4x300 | 2.6 | 8.4 | 92.8 | 19030 |
| 6385TQ | |||||
| 16(30/30) | 5x1.5 | 0.8 | 1.8 | 12.1 | 226 |
| 14(50/30) | 5x2.5 | 0.9 | 2 | 14.1 | 329 |
| 12(56/28) | >5x4 | 1 | 2.2 | 17.2 | 515 |
| 10(84/28) | 5x6 | 1 | 2.5 | 20.5 | 690 |
| 8(80/26) | 5x10 | 1.2 | 3.6 | 26.5 | 1240 |
| 6(128/26) | 5x16 | 1.2 | 3.9 | 30.1 | 1695 |
| 4(200/26) | 5x25 | 1.4 | 4.4 | 36.1 | 2470 |
| 2(280/26) | 5x35 | 1.4 | 4.7 | 40.5 | 3187 |
| 1(400/26) | 5x50 | 1.6 | 5.1 | 47.3 | 4450 |
| 2/0(356/24) | 5x70 | 1.6 | 5.6 | 54 | 5938 |
| 3/0(485/24) | 5x95 | 1.8 | 6.2 | 62 | 7924 |
| 6386TQ | |||||
| 12(56/28) | 6x4 | 1 | 2.6 | 19.6 | 643 |
| 10(84/28) | 6x6 | 1 | 3 | 23.4 | 917 |
| 8(80/26) | 6x10 | 1.2 | 3.6 | 28.8 | 1420 |
| 6(128/26) | 6x16 | 1.2 | 3.9 | 32.7 | 1973 |
| 4(200/26) | 6x25 | 1.4 | 4.4 | 39.2 | 2921 |
| 2(280/26) | 6x35 | 1.4 | 4.7 | 44 | 3822 |
| 1(400/26) | 6x50 | 1.6 | 5.3 | 51.8 | 5337 |
| 6387TQ | |||||
| 16(30/30) | 7x1.5 | 0.8 | 2.6 | 14.7 | 385 |
| 14(50/30) | 7x2.5 | 0.9 | 2.8 | 17.1 | 445 |
| 12(56/28) | 7x4 | 1 | 2.8 | 21.6 | 773 |
| 10(84/28) | 7x6 | 1 | 3.2 | 25.7 | 1089 |
| 8(80/26) | 7x10 | 1.2 | 3.8 | 31.6 | 1706 |
| 6(128/26) | 7x16 | 1.2 | 4 | 35.7 | 2330 |
| 4(200/26) | 7x25 | 1.4 | 4.7 | 43.2 | 3560 |
| 2(280/26) | 7x35 | 1.4 | 5 | 48.5 | 4576 |
| 1(400/26) | 7x50 | 1.6 | 5.7 | 57.4 | 6436 |
| 6388TQ | |||||
| 12(56/28) | 8x4 | 17.3 | 3 | 23.5 | 908 |
| 63810TQ | |||||
| 12(56/28) | 10x4 | 18.9 | 3.1 | 25.3 | 1073 |
| 63812TQ | |||||
| 12(56/28) | 12x4 | 19.6 | 3.2 | 26.2 | 1183 |
| 63816TQ | |||||
| 12(56/28) | 6x4 | 22.1 | 3.5 | 29.3 | 1505 |
| 63818TQ | |||||
| 12(56/28) | 18x4 | 23.6 | 3.6 | 31 | 1687 |
| 63820TQ | |||||
| 12(56/28) | 20x4 | 25.2 | 3.8 | 33 | 1902 |
