These cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit in conduit or trunking where mechanical protection is required.

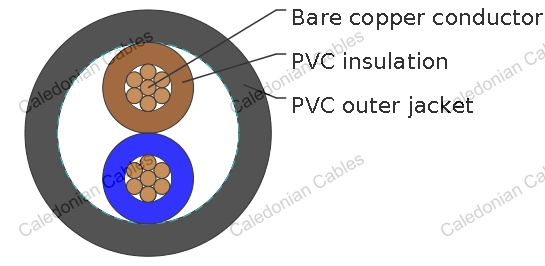

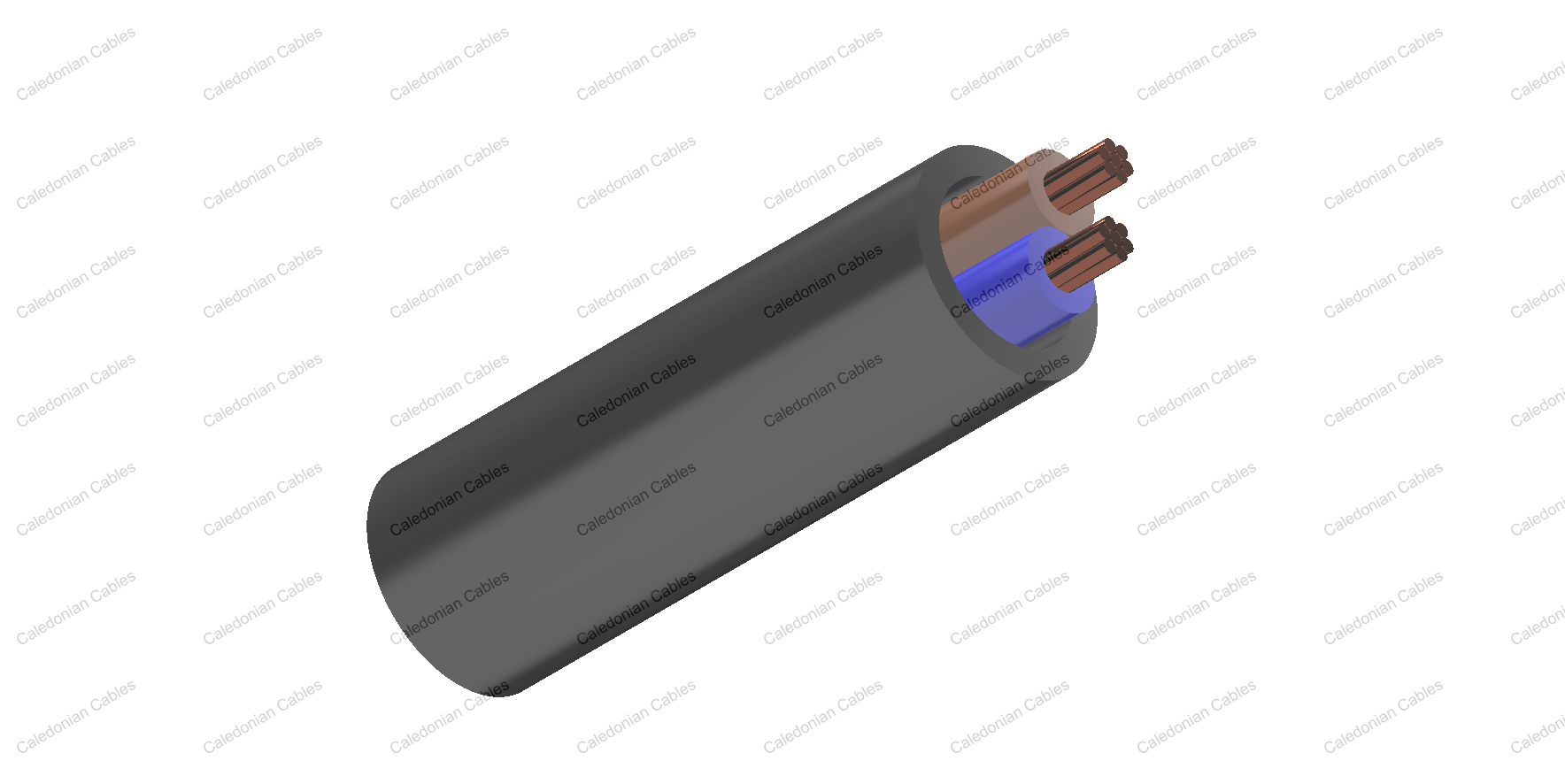

Fine bare copper strands
Stranding to BS 6360, IEC 60228 CL-1 or 2
PVC insulation type TI1 to BS 7655
PVC sheath type T6 to BS 7655
2 cores : brown and blue
3 cores : brown, black and grey
Working voltage : 300/500 volts
Test voltage : 2000 volts
Minimum bending radius : 4×Overall diameter
Operating temperature : -15°C to +70°C
Short circuit temperature : +160°C
Flame retardant : IEC 60332.1
Insulation resistance : 10 MΩ×km
| AWG (No of Strands / Strand Diameter) | No. of Cores × Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal overall dimensions | Nominal Weight | |
|---|---|---|---|---|---|---|
| lower limit | upper limit | |||||
| # × mm² | mm | mm | mm | mm | kg/km | |
| 6192Y | ||||||
| 17 | 2 × 1.0 | 0.6 | 0.9 | 4x6.2 | 4.7x7.4 | 53 |
| 16 | 2 × 1.5 | 0.7 | 0.9 | 4.4x7.0 | 5.4x8.4 | 70 |
| 14 | 2 × 2.5 | 0.8 | 1 | 5.2x8.4 | 6.2x9.8 | 105 |
| 12(7/20) | 2 × 4 | 0.8 | 1 | 6x10.4 | 7.2x11.5 | 150 |
| 10(7/18) | 2 × 6 | 0.8 | 1.1 | 6.8x11.5 | 8.0x13.0 | 205 |
| 8(7/16) | 2 × 10 | 1 | 1.2 | 7.8x15.1 | 9.6x16 | 325 |
| 6(7/14) | 2 × 16 | 1 | 1.3 | 9.8x17.2 | 11.0x18.5 | 465 |
| 6193Y | ||||||
| 17 | 3 × 1.0 | 0.6 | 0.9 | 4x8.4 | 4.7x9.8 | 77 |
| 16 | 3 × 1.5 | 0.7 | 0.9 | 4.4x9.8 | 5.4x11.5 | 100 |
| 14 | 3 × 2.5 | 0.8 | 1 | 5.2x11.5 | 6.2x13.5 | 150 |
| 12(7/20) | 3 × 4 | 0.8 | 1.1 | 6x14.8 | 7.4x16.5 | 230 |
| 10(7/18) | 3 × 6 | 0.8 | 1.1 | 6.8x16.5 | 8.0x18.0 | 300 |
| 8(7/16) | 3 × 10 | 1 | 1.2 | 7.8x21.0 | 9.6x22.5 | 485 |
| 6(7/14) | 3 × 16 | 1 | 1.3 | 9.8x24.8 | 11.0x26.5 | 700 |
