    6181Y to BS 6004

    Application and Description

    These cables are designed for surface wiring where there is little risk of mechanical damage and are suitable for use in electrical installations such as power and lighting.

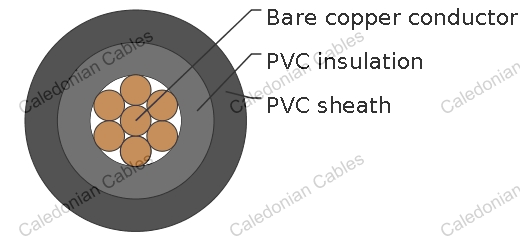

    Cable Construction

    • - Bare copper conductor
    • - Solid to BS 6360 CL-1 or IEC 60228 CL-1; stranding to BS 6360 CL-2 or IEC 60228 CL-2
      1.0mm^2- 2.5mm CL-1 – circular solid
      4mm^2 and above - CL-2 – stranded circular or circular compacted
    • - PVC insulation Type TI1 to BS7655
    • - PVC sheath Type 6 to BS7655

    Core Identification

    • Black, Blue, Brown

    Technical Characteristics

    • - Working voltage: 300/500V
    • - Minimum bending radius: 3xoverall diameter
    • - Operating temperature: -15o C to +70o C
    • - Insulation resistance: 10 MΩxkm
    • - Flame retardant: IEC 60332.1

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Thickness of
    Sheath
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    18 1x1 0.6 0.8 4.5 27
    16 1x1.5 0.7 0.8 4.9 36
    14 1x2.5 0.8 0.8 5.8 52
    12(7/20) 1x4 0.9 0.9 6.8 76
    10(7/18) 1x6 0.8 0.9 7.4 100
    8(7/16) 1x10 1 0.9 8.8 160
    6(7/14) 1x16 1 1 10.5 230
    4(7/12) 1x25 1.2 1.1 12.5 340
    2(7/10) 1x35 1.2 1.1 13.5 440
