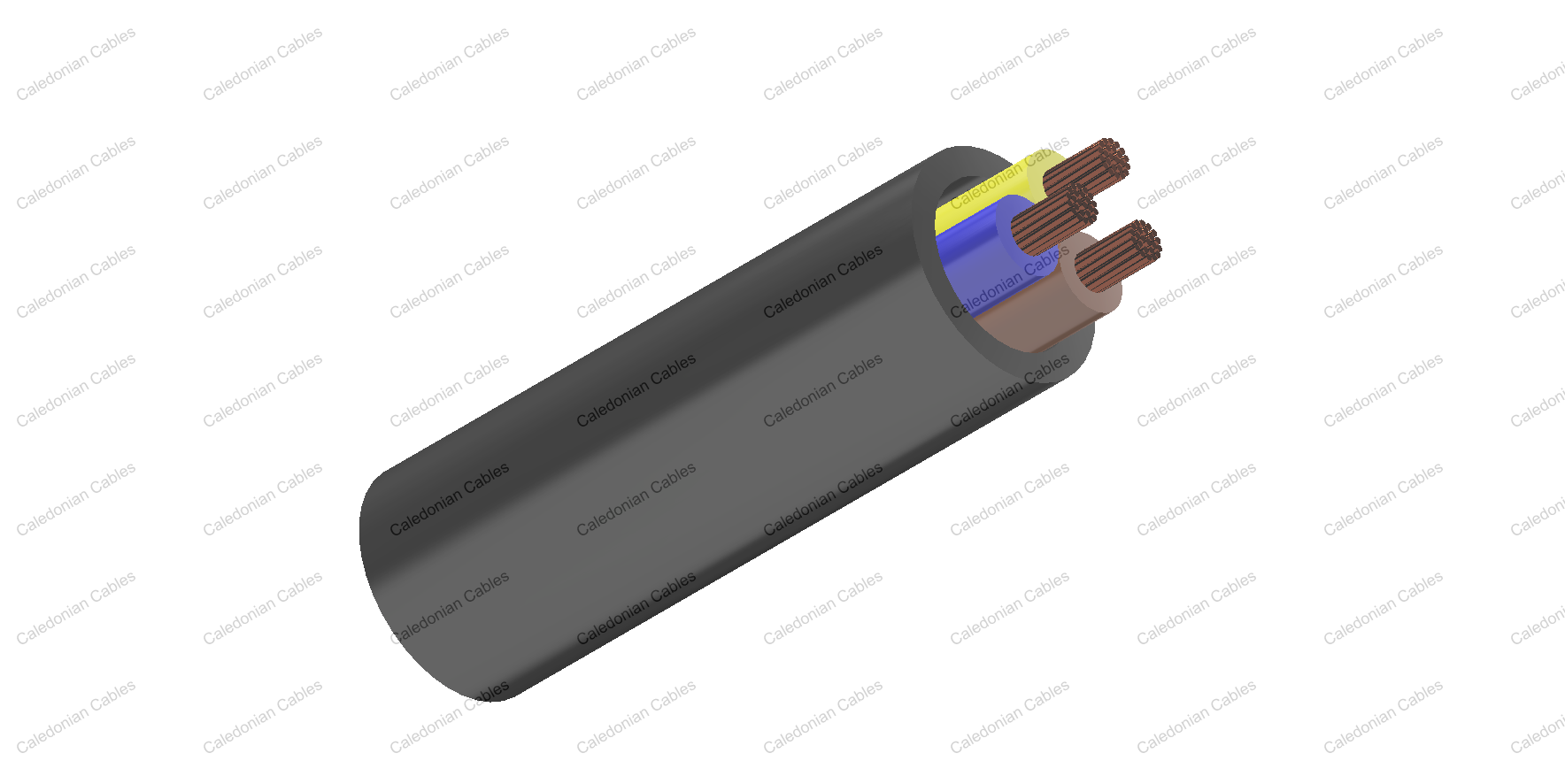

    318TRS to BS 6500

    Application and Description

    These cables are suitable for use with electronics and electrical equipment such as appliances, small hand tools and office equipment, where the cables may be subject to light and medium stresses in both dry and damp environments. They can be used in flat irons, soldering irons, kitchen aids, toasters, stoves in connections with light commercial electric tools. They are also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. 318TRS is equivalent to harmonized code H05RR-F.

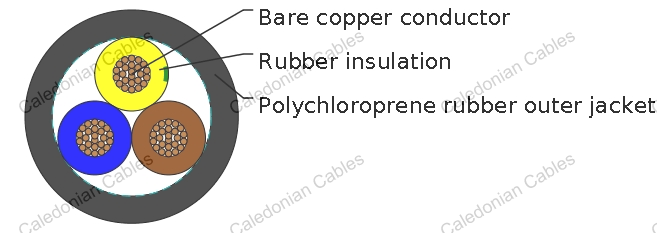

    Cable Construction

    • - Fine bare copper strands
    • - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
    • - Rubber core insulation EI4
    • - Green/Yellow grounding, 3 conductors and above
    • - Polychloroprene rubber (neoprene) jacket EM3

    Core Identification

    • 2 Cores: Brown, Blue
    • 3 Cores: Brown, Blue and Green/Yellow
    • 4 Cores: Brown, Grey, Black and Green/Yellow
    • 5 Cores: Brown, Blue, Grey, Black and Green/Yellow

    Technical Characteristics

    • - Working voltage: 300/500 volts
    • - Test voltage: 2000 volts
    • - Flexing bending radius: 8xOverall diameter
    • - Fixed bending radius: 6xOverall diameter
    • - Temperature range: -30o C to +60o C
    • - Short circuit temperature: +200 o C
    • - Flame retardant: IEC 60332.1
    • - Insulation resistance: 20 MΩxkm

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Thickness of
    Sheath
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Copper
    Weight
    kg/km
    Nominal
    Weight
    kg/km
    3182TRS
    18(24/32) 2x0.75 0.6 0.8 5.7-7.4 14.4 61
    17(32/32) 2x1 0.6 0.9 6.1-8.0 19.0 73
    16(30/30) 2x1.5 0.8 1.0 7.6-9.8 29.0 115
    14(50/30) 2x2.5 0.9 1.1 9.0-11.6 48.0 160
    3183TRS
    18(24/32) 3x0.75 0.6 0.9 6.2-8.1 21.6 75
    17(32/32) 3x1 0.6 0.9 6.5-8.5 29.0 86
    16(30/30) 3x1.5 0.8 1.0 8.0-10.4 43.0 135
    14(50/30) 3x2.5 0.9 1.1 9.6-12.4 72.0 191
    3184TRS
    18(24/32) 4x0.75 0.6 0.9 6.8-8.8 28.8 94
    17(32/32) 4x1 0.6 0.9 7.1-9.3 38.4 105
    16(30/30) 4x1.5 0.8 1.1 9.0-11.6 58.0 165
    14(50/30) 4x2.5 0.9 1.2 10.7-13.8 96 235
    3185TRS
    18(24/32) 5x0.75 0.6 1.0 7.6-9.9 36 110
    17(32/32) 5x1 0.6 1.0 8.0-10.3 48.0 130
    16(30/30) 5x1.5 0.8 1.1 9.8-12.7 72.0 190
    14(50/30) 5x2.5 0.9 1.3 11.9-15.3 120 285
