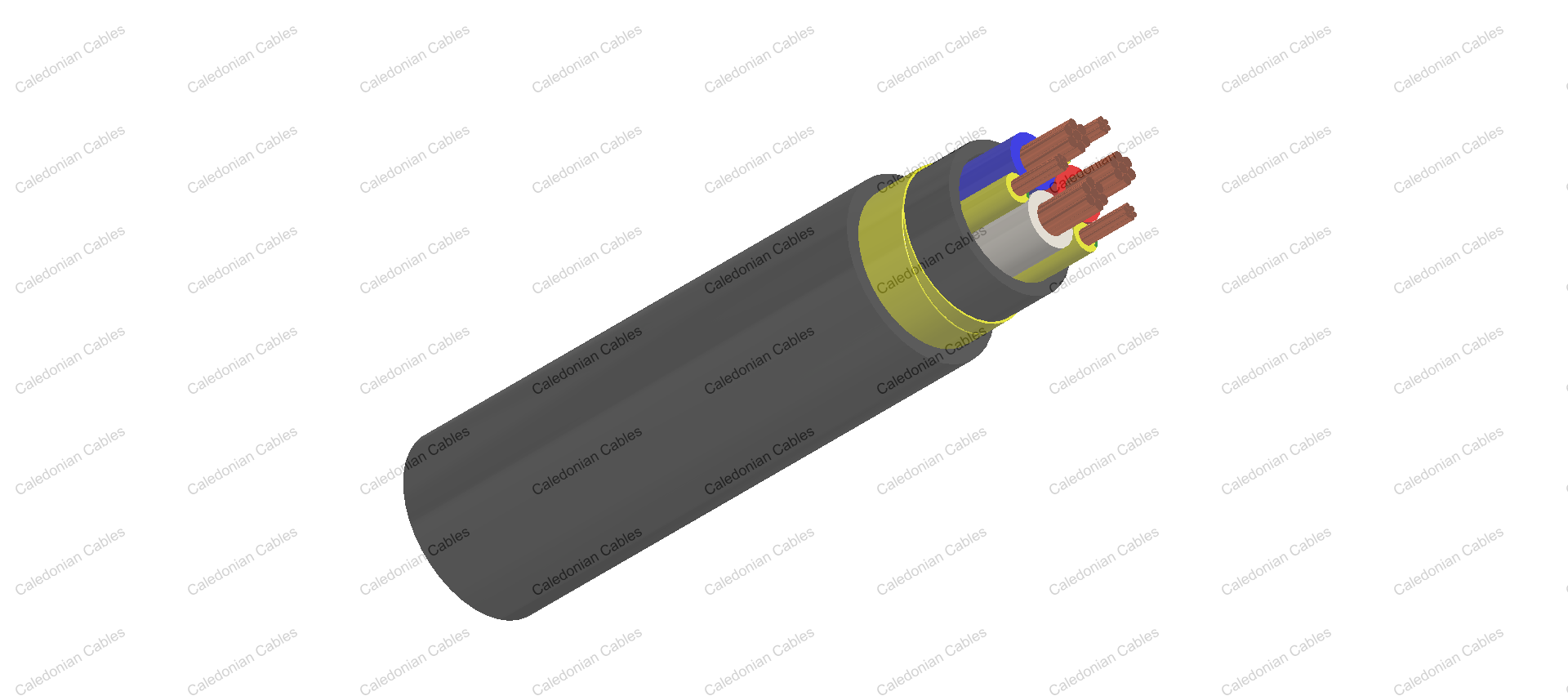

    VSD/EMC Cables (Copper Tape Screened), 0.6/1kV

    • VSD/EMC Cables (Copper Tape Screened), 0.6/1kV
    • VSD/EMC Cables (Copper Tape Screened), 0.6/1kV

    Application

    These cables are used to supply motors from variable speed controls unenclosed, enclosed in conduit, mounted on tray, or in underground ducts for industrial plants, where not subject to mechanical damage. They are designed to significantly reduce radiated interference from electrical noise by using symmetrical, balanced and screened construction.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3808
    • AS/NZS 1125

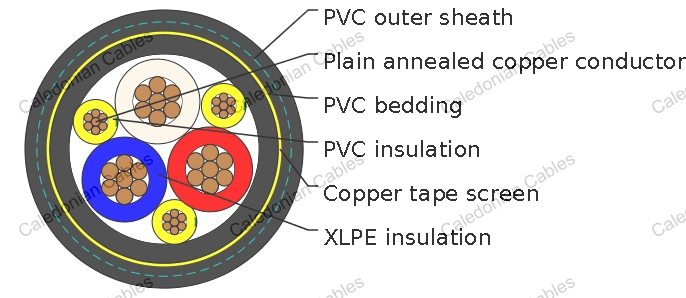

    Construction

    Conductor Plain annealed copper, class 2 strands
    Insulation XLPE, X-90
    Insulation colour: Red, White, Blue & Green/Yellow
    Laying up: Non-hygroscopic material(optional)
    Bedding: Flame retardant polyvinyl chloride PVC V90
    Screen: Plain annealed copper tape with 100% coverage
    Sheath: Flame retardant polyvinyl chloride PVC V90
    Sheath colour: Black

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area mm2 Unenclosed Touching
    A
    Unenclosed In Air
    A
    Buried In Ducts
    A
    Maximum DC Resistance @20°C
    Ohm/km
    Maximum AC Resistance @90°C
    Ohm/km
    Reactance
    Ohm/km
    Three Phase Voltage Drop
    mV/Am
    2.5 29 24 32 7.41 9.45 0.0988 16.4
    4 39 32 41 4.61 5.88 0.0930 10.2
    6 50 42 51 3.08 3.93 0.0887 6.80
    10 68 58 68 1.83 2.33 0.0840 4.05
    16 91 77 89 1.21 1.54 0.0805 2.68
    25 121 108 118 0.780 0.932 0.0808 1.62
    35 149 127 144 0.554 0.684 0.0786 1.19
    50 187 154 171 0.386 0.513 0.0751 0.902
    70 237 193 214 0.272 0.340 0.0741 0.608
    95 292 231 257 0.206 0.266 0.0725 0.485
    120 336 275 294 0.161 0.206 0.0713 0.387
    150 385 308 332 0.129 0.162 0.0718 0.317
    185 446 358 380 0.106 0.134 0.0720 0.275
    240 528 424 449 0.0801 0.105 0.0709 0.233
    300 605 - 508 0.0641 0.0836 0.0704 0.205

    Cable Parameter

    No. of Core Nom. conductor area
    mm^2
    Core diameter
    mm
    Earth conductor area
    mm^2
    Earth core diameter
    mm
    Over
    bedding diameter
    mm
    Cable diameter
    mm
    Approx. mass
    kg/km
    3C+E 2.5 3.7 2.5 3.5 10.9 15.0 330
    3C+E 4 4.7 4 4.7 13 15.3 375
    3C+3E 6 5.3 1.5 3.0 13.8 16.9 415
    3C+3E 10 6.2 1.5 3.0 14.8 17.8 550
    3C+3E 16 7.4 2.5 3.5 17 21.0 760
    3C+3E 25 9.1 4 4.7 19.2 24.4 1130
    3C+3E 35 10.3 6 5.3 21.9 27.2 1480
    3C+3E 50 12.3 10 6.2 25.1 30.8 2110
    3C+3E 70 14.0 10 6.2 28.1 35.7 2740
    3C+3E 95 15.3 16 7.4 33.9 39.9 3590
    3C+3E 120 17.1 16 7.4 38.9 43.8 4400
    3C+3E 150 19.2 25 9.1 42.6 48.4 5450
    3C+3E 185 21.5 25 9.1 47.5 54.1 6760
    3C+3E 240 24.2 35 10.3 53.6 60.2 8600
    3C+3E 300 26.8 50 12.3 59.6 66.3 10640
