Single Core Double Insulated Flexible Power and Welding Cable, 0.6/1kV

Application

These cables are used for fixed power applications, can be used in power applications,such as switchboards, busbars, transformers, welding applications ,like E and electrode leads,and automotive applications for jumper leads, battery chargers.

Standard

AS/NZS 5000.1
AS1995
AS/NZS 1125
AS3808

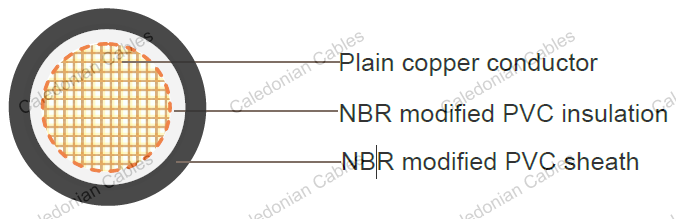

Construction

Conductor	Nominal 0.2mm stranded flexible plain copper wire to AS 1125
Insulation	Nitrile (NBR) Modified PVC to comply with AS3808 V90HT
Insulation Colour:	White
Sheath:	Nitrile (NBR) Modified PVC to comply with AS3808 V90HT
Sheath Colours:	Orange, Black - other colours available by request

Technical Characteristics

Conductor Size	Electrical Resistance @20.C	Current Ratìng' AMPS 2 single cores	Voltage Orop mV 1Am at Max operatíng Temperature
mm^2	Ohm/km	Current Ratìng' AMPS 2 single cores	Single Phase	Three Phase
10	1.910	69	4.45	3.86
16	1.210	92	2.80	2.43
25	0.780	125	1.78	1.54
35	0.554	155	1.29	1.12
50	0.386	185	0.96	0.83
70	0.272	240	0.62	0.59
95	0.206	295	0.51	0.44
120	0.161	345	0.41	0.36

Cable Parameter

Conductor Size	No.of cores	Conductor No./ OD	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal O.D.	Approx. Cable Weight
mm^2		mm	mm	mm	mm	kg/100m
10	1.0	322/0.2	1.0	1.4	9.1	14.42
16	1.0	511/0.2	1.0	1.4	10.1	20.16
25	1.2	784/0.2	1.2	1.4	11.8	29.14
35	1.2	1120/0.2	1.2	1.4	13.1	38.96
50	1.4	1568/0.2	1.4	1.4	14.9	52.84
70	1.4	2240/0.2	1.4	1.5	17.0	72.34
95	1.6	3040/0.2	1.6	1.5	19.3	96.18
120	1.6	3800/0.2	1.6	1.6	20.8	117.86
