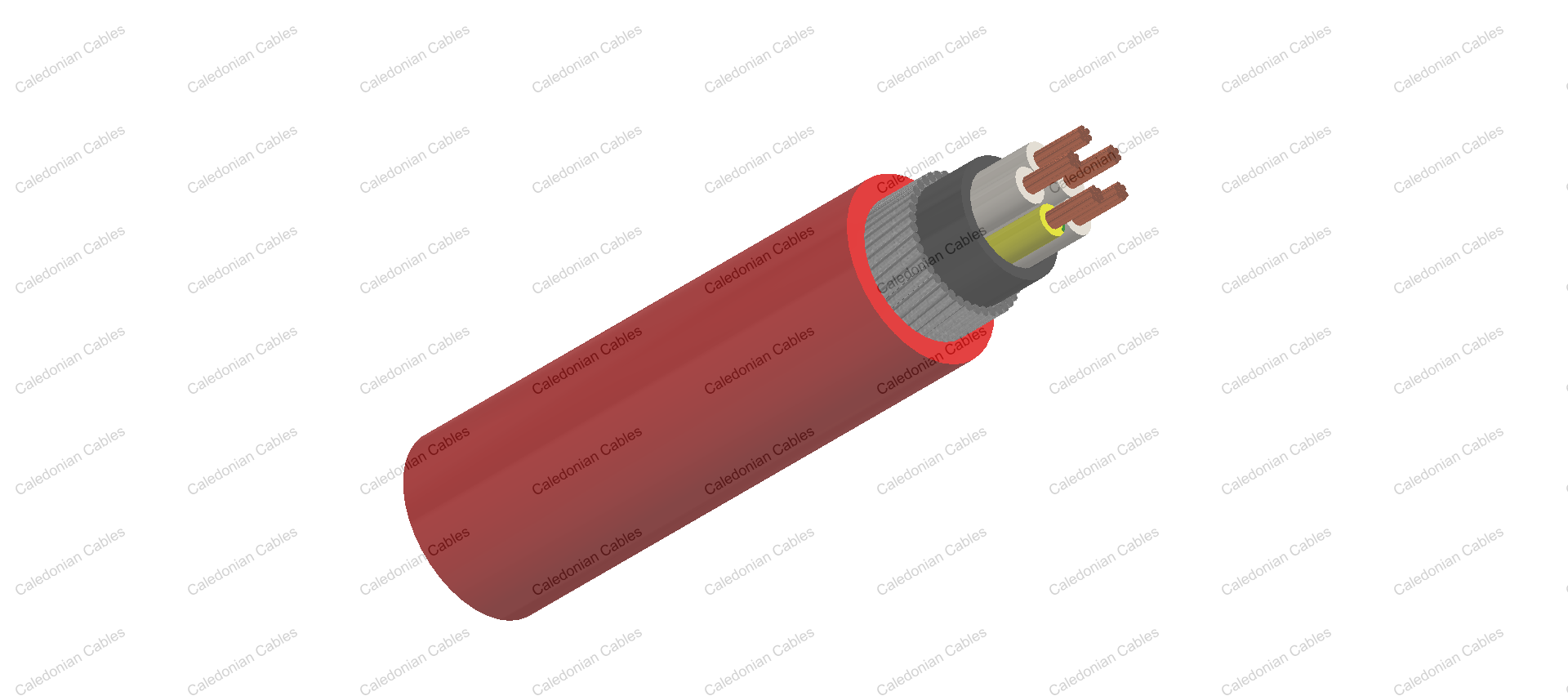

    PVC Insulated, PVC Sheathed Multicore+E Armored Control Cables, 0.6/1kV

    • PVC Insulated, PVC Sheathed Multicore+E Armored Control Cables 0.6/1kV
    • PVC Insulated, PVC Sheathed Multicore+E Armored Control Cables 0.6/1kV

    Application

    These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where mechanical damage may occur.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS/NZS 1125

    Construction

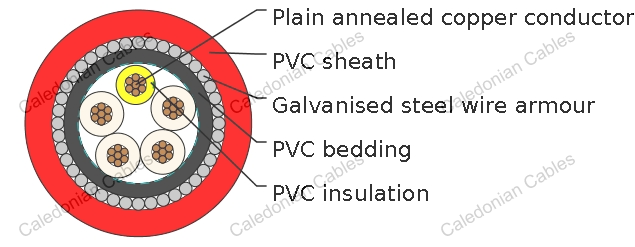

    Conductor Plain annealed copper.
    Insulation Polyvinylchloride compound PVC V-90
    Insulation colour: White(black letter numbered), Green/yellow
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Orange, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2
    Unenclosed In Air
    A
    Buried Direct
    A
    Buried In Ducts
    A
    Maximum DC Resistance @20°C
    Ohm/km
    Maximum AC Resistance @75°C
    Ohm/km
    Reactance
    Ohm/km
    Three Phase Voltage Drop @75°C
    mV/Am
    1.5mm2
    2C+E 18 14 22 13.6 16.5 0.111 33.0
    3-50C+ E 15 13 19 13.6 16.5 0.111 33.0
    2.5mm2
    2C+E 26 20 31 7.41 9.01 0.102 18.0
    3-50C+ E 22 18 26 7.41 9.01 0.102 18.0

    Cable Parameter

    Nom. conductor area
    mm^2
    Conductor
    No./ OD
    Nom. insulation thickness
    mm
    Nom. earth conductor area
    mm^2
    Nom. earth conductor insulation thickness
    mm
    Nom. diameter over bedding
    mm
    Armour diameter
    mm
    Nom. overall diameter
    mm
    Approx. mass
    kg/km
    1.5mm2
    2C+ E 7/0.50 0.8 1.5 0.6 9.0 0.90 14.5 405
    3C+ E 7/0.50 0.8 1.5 0.6 9.8 0.90 15.4 440
    4C+ E 7/0.50 0.8 1.5 0.6 10.7 0.90 16.3 550
    6C+ E 7/0.50 0.8 1.5 0.6 11.7 0.90 17.3 690
    8C+ E 7/0.50 0.8 1.5 0.6 13.6 1.25 19.9 770
    10C+ E 7/0.50 0.8 1.5 0.6 14.9 1.25 21.2 920
    12C+ E 7/0.50 0.8 1.5 0.6 16.2 1.25 22.5 1010
    15C+ E 7/0.50 0.8 1.5 0.6 17.1 1.60 23.4 1110
    20C+ E 7/0.50 0.8 1.5 0.6 19.0 1.60 26.0 1535
    25C+ E 7/0.50 0.8 1.5 0.6 21.7 1.60 28.7 1670
    30C+ E 7/0.50 0.8 1.5 0.6 23.5 1.60 30.4 1840
    40C+ E 7/0.50 0.8 1.5 0.6 26.4 1.60 34.8 2260
    50C+ E 7/0.50 0.8 1.5 0.6 28.9 1.60 36.1 2400
    2.5mm2
    2C+ E 7/0.67 0.8 2.5 0.7 10.0 0.90 15.6 210
    3C+ E 7/0.67 0.8 2.5 0.7 10.9 0.90 16.5 250
    4C+ E 7/0.67 0.8 2.5 0.7 12.0 0.90 17.6 285
    6C+ E 7/0.67 0.8 2.5 0.7 13.1 1.25 19.4 365
    8C+ E 7/0.67 0.8 2.5 0.7 15.3 1.25 23.0 455
    10C+ E 7/0.67 0.8 2.5 0.7 16.8 1.25 23.0 530
    12C+ E 7/0.67 0.8 2.5 0.7 18.3 1.60 25.2 605
    15C+ E 7/0.67 0.8 2.5 0.7 19.3 1.60 26.3 715
    20C+ E 7/0.67 0.8 2.5 0.7 21.5 1.60 28.5 950
    25C+ E 7/0.67 0.8 2.5 0.7 24.6 1.60 31.8 1095
    30C+ E 7/0.67 0.8 2.5 0.7 26.6 1.60 33.8 1200
    40C+ E 7/0.67 0.8 2.5 0.7 30.4 2.0 38.8 1565
    50C+ E 7/0.67 0.8 2.5 0.7 33.3 2.0 41.7 1925
