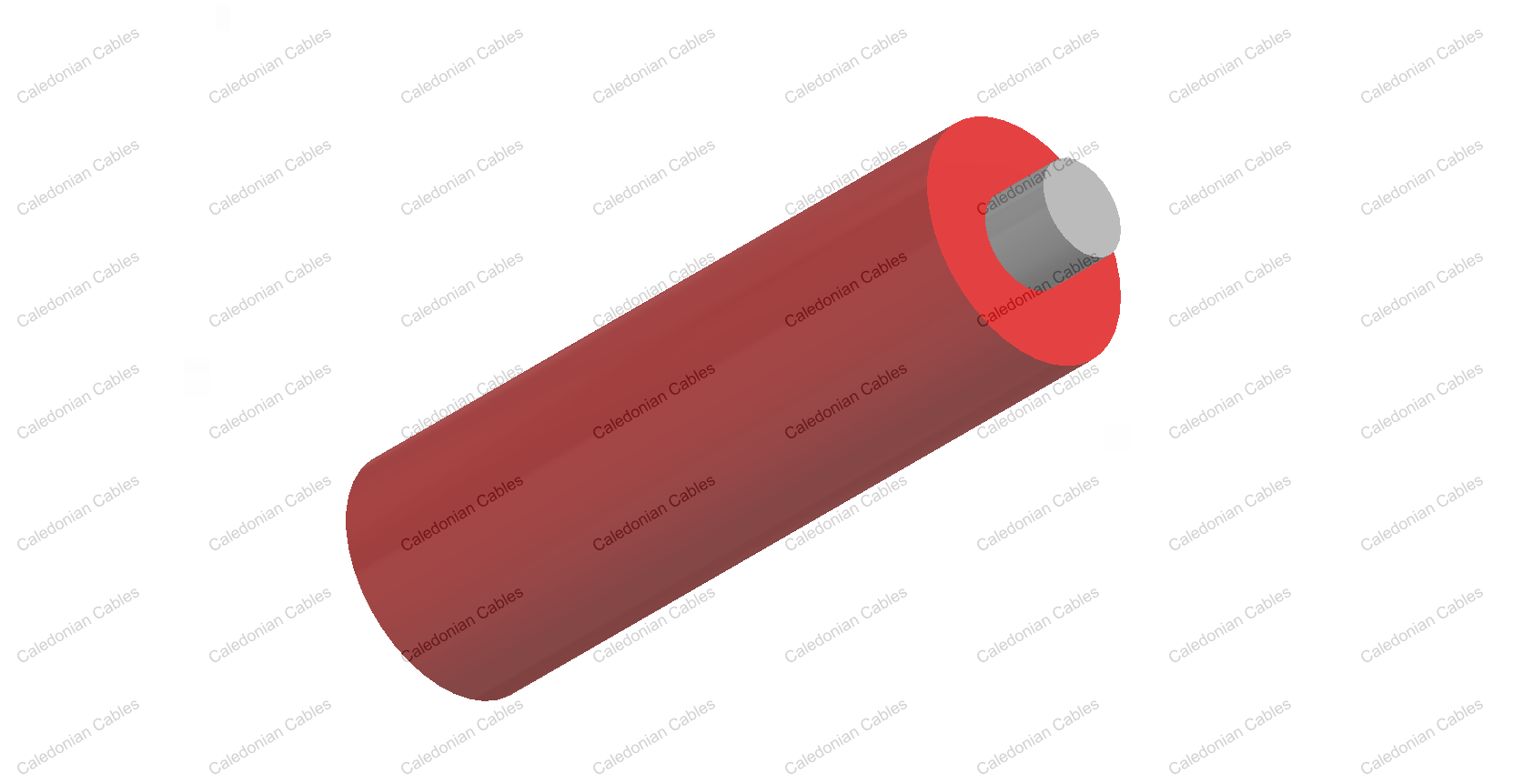

    SID-Silicone Single Core Solid Conductor Cable

    Product application

    Suitable where PVC insulated cables become brittle due to high temperature variations. Silicone insulated single cores are preferably used in the metallurgical industry, steel works, hot rolling mills, coking plants, foundries etc. Insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc. The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof. Suitable for fixed installation.

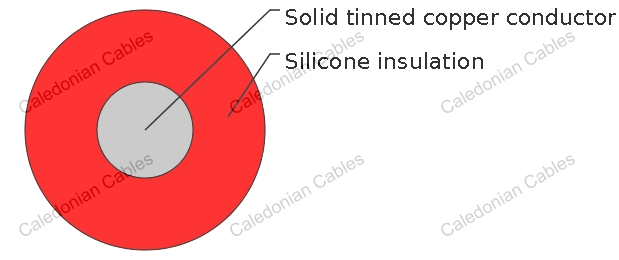

    Construction

    • Solid tinned copper single wire
    • Solid to VDE-0295 Class-1, IEC 60228 Cl-1
    • Silicone core insulation

    Technical

    • Special silicone-insulated cable with higher heat-resistance adapted to DIN VDE 0250 part 1 and part 816
    • Temperature range: -60°C to +180°C
    • Short time temp up to +220o C
    • Temperature limit at the conductor in operation +180°C
    • Nominal voltage: 300/500 V
    • Test voltage: 2000 V
    • Insulation resistance :min. 200 MΩ x km
    • Minimum bending radius: flexing 10 x cable O
    • Coupling resistance :max. 250Ω/km
    • Radiation resistance: up to 20x106 cJ/kg (up to 20 Mrad)

    Properties

    • Advantages
      High ignition or flash point
    • Resistant to
      High molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen
    • Halogen-free
      According to DIN VDE 0482 part 267/ EN 50267-2-1/ IEC 60754-1 (equivalent DIN VDE 0472 part 815)
    • Behavior in fire
      No flame propagation
      Test according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)

    For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding 90°C.

    Product specification

    AWG No. of Cores Conductor Cross Section mm^2 Nominal OD
    mm
    Copper weight
    kg / km
    Gross
    Weight
    kg / km
    - 1 0.2 1.7 1.9 4.2
    - 1 0.28 1.8 2.7 5.1
    20 1 0.5 2 4.8 7.7
    18 1 0.75 2.2 7.2 10.4
    17 1 1 2.3 9.6 12.8
    16 1 1.5 2.6 14.4 18
    14 1 2.5 3.2 24 28.9
    12 1 4 3.9 38 45.4
    10 1 6 4.4 58 64.5

    Other sizes and colours available on request
