High Temperature PTFE Cable

Equipment wire for high performance aerospace applications. PTFE wires are used in severe environmental conditions.

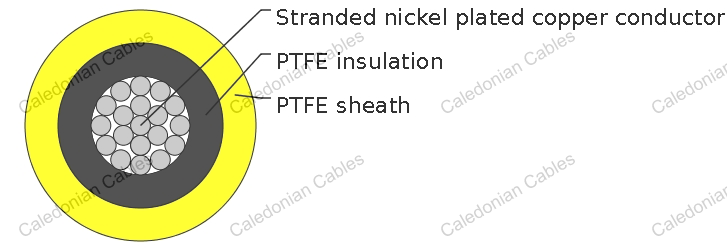

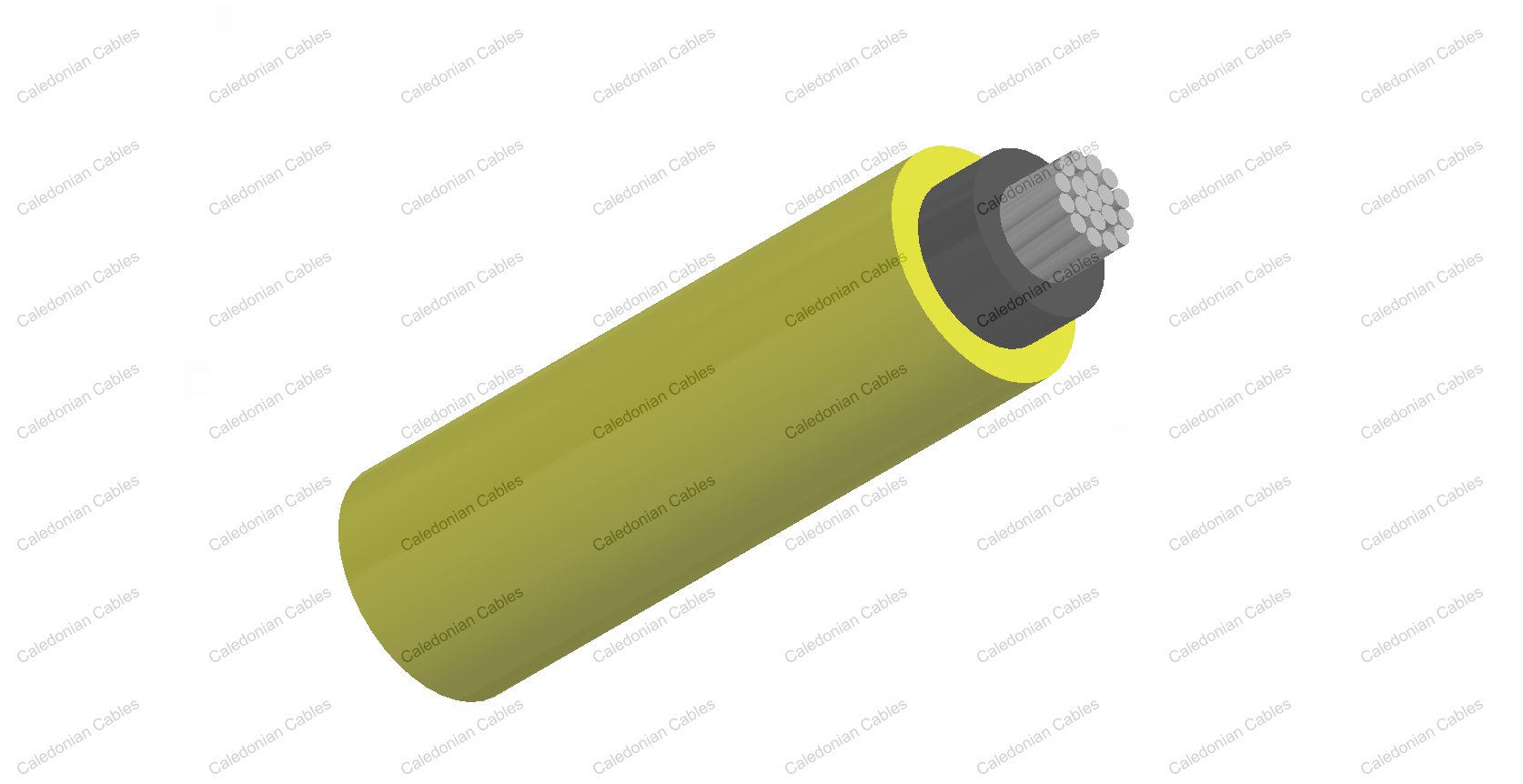

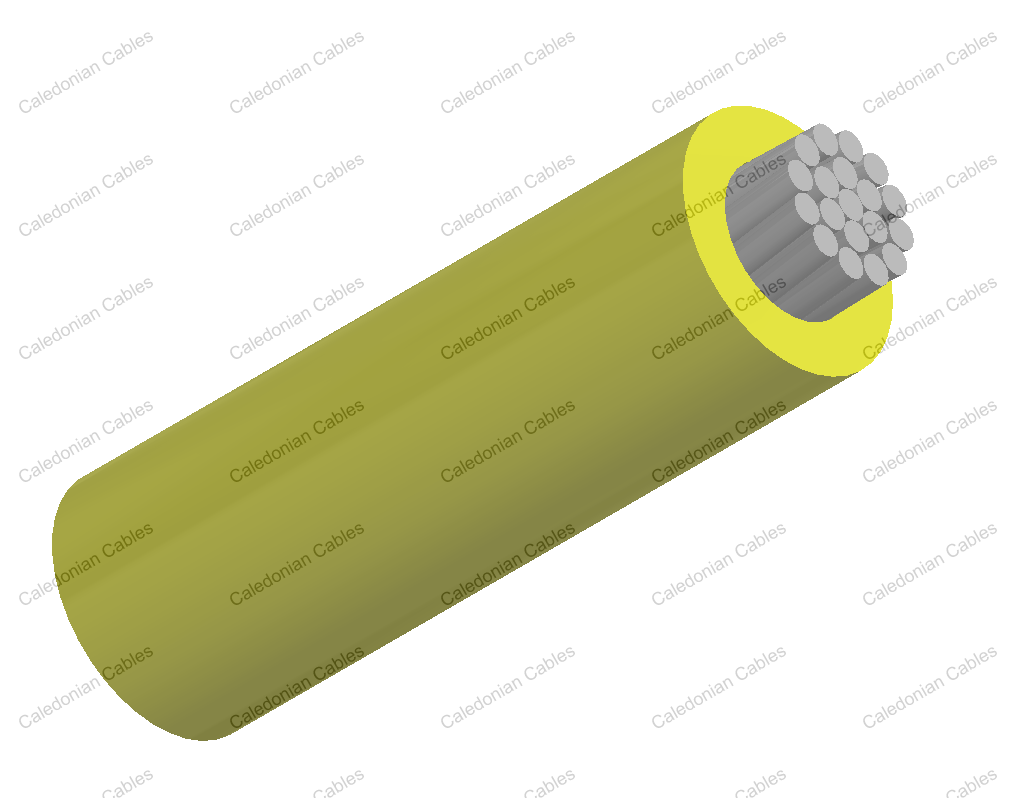

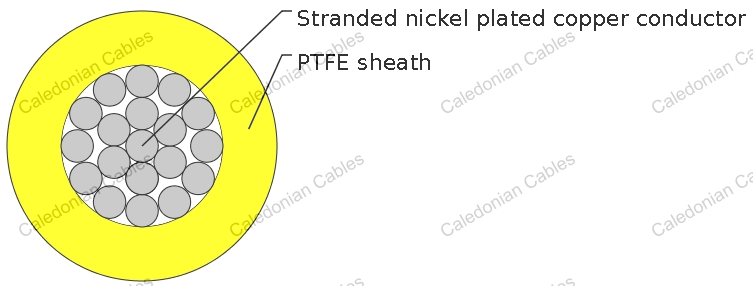

Stranded silver or nickel plated copper conductor

Polytetrafluoroethylene insulation

Sheath colour : Black, Blue, Brown, Red, White, Grey, Violet, Pink, Orange, Yellow, Green/Yellow to BS 3G 210

Temperature Rating : -75°C to +190°C

Minimum Bending Radius : 6 x overall diameter

Voltage Working : Type A 300V Test 2500V; Type B 600V Test 3400V; Type C 1000V Test 5000V

Colour code confirms to BS 3G 210

Good resistance to oils, fuels and fluids

Heat resistance

Voltage ratings are conforming to American MIL, VDE, DIN, BS, or Lloyd’s standards

AWG	Strand × Diameter	Conductor Cross Section	Voltage Grade	O/D min - max	Gross Weight
AWG	mm	mm²		mm	kg/km
30	7/0.10	0.056	A	0.50-0.65	1.1
28	7/0.12	0.089	A	0.56-0.71	1.4
28	7/0.12	0.089	B	0.76-0.96	2.1
26	7/0.15	0.14	A	0.65-0.80	1.1
26	7/0.15	0.14	B	0.85-1.05	3.09
24	7/0.20	0.22	A	0.80-0.95	3.04
24	7/0.20	0.22	B	1.00-1.20	3.89
24	7/0.20	0.22	C	1.26-1.52	4.64
22	19/0.15	0.35	A	0.95-1.10	4.41
22	19/0.15	0.35	B	1.15-1.35	5.44
22	19/0.15	0.35	C	1.41-1.67	6.43
20	19/0.20	0.61	A	1.20-1.35	7.19
20	19/0.20	0.61	B	1.40-1.60	8.43
20	19/0.20	0.61	C	1.66-1.92	9.08
18	19/0.25	0.96	B	1.65-1.85	12.1
18	19/0.25	0.96	C	1.91-2.17	14.3
16	19/0.30	1.23	C	2.16-2.46	16.5
14	19/0.36	1.94	C	2.34-2.74	23.9
12	19/0.45	3.08	C	2.91-3.31	38.5
10	37/0.40	4.65	C	3.46-3.86	56.0
