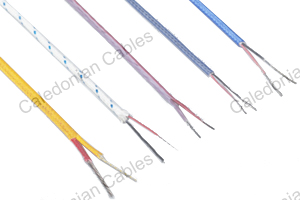

Flexible Thermocouple Wire (1024°C)

Product application

These cables are designed for a range of applications which include: replacement for beaded thermocouples, thermocouple for oven surveys, heat treating or forging, casting of steel or titanium, thermocouple for coke ovens, soaking pits where more flexibility is required compared to mineral insulated products. Designed for extreme temperature applications.

Product characteristic

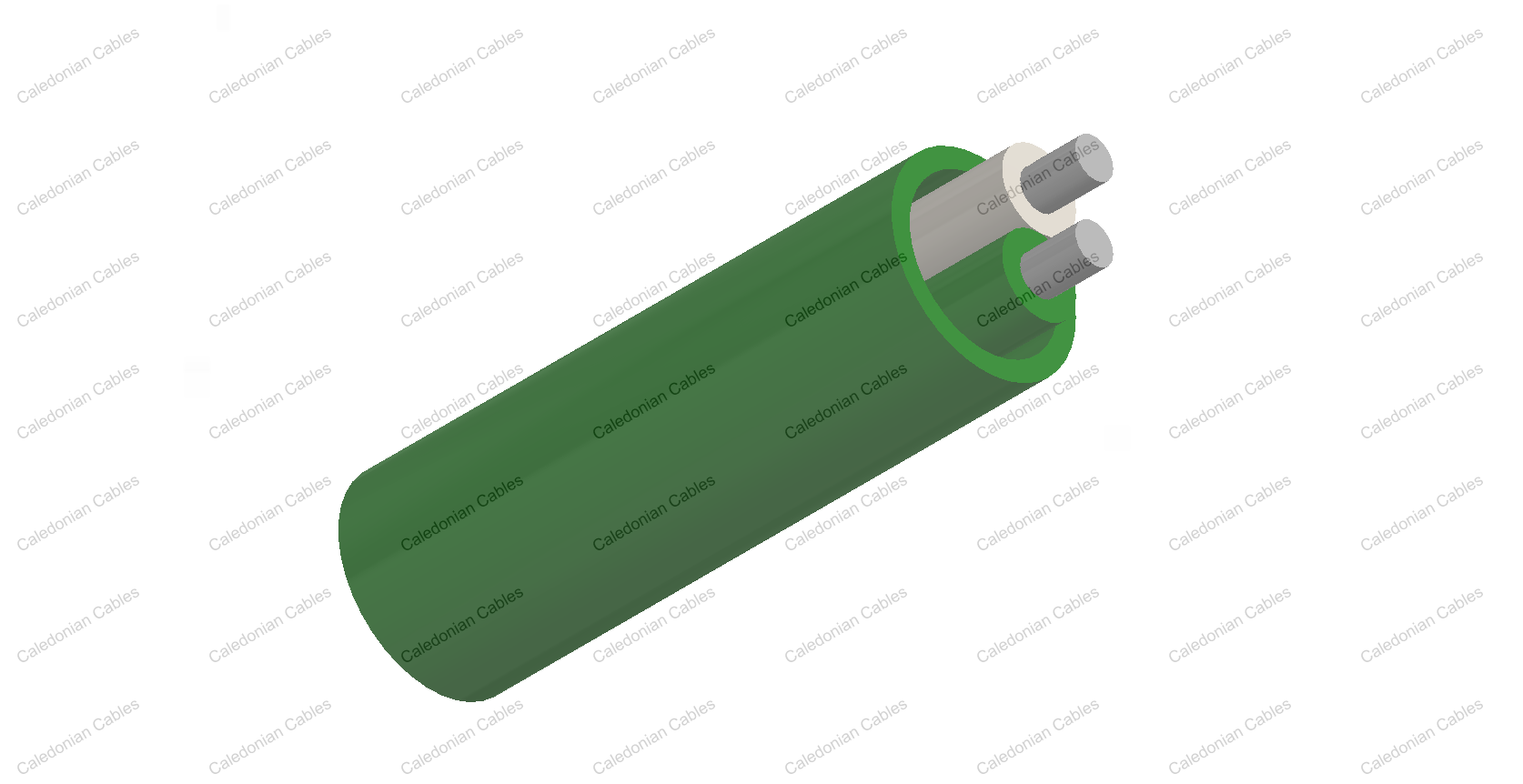

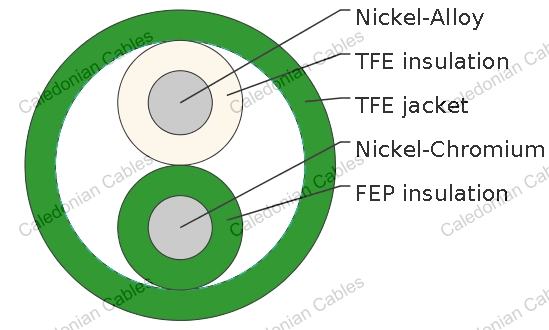

Construction

Solid or stranded thermocouple wire

Fused TFE tape insulation

Parallel conductors

Flame retardant extruded fluoropolymer TFE jacket

Technical

Continuous temperature rating : 260°C

Minimum Bend Radius : insulation 3 x cable Ø; overall 5 x cable Ø

Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1

Color Code : Conforms to ANSI, IEC, JIS

Properties

Designed for extended high temperature service of (1024°C) with intermittent use of (1432°C)

Good flexibility

Replaces beaded thermocouples

Excellent thermocouple probe in various high temperature applications.

Product specification

Flexible Type K Thermocouple Wire

Chromel/Alumel FlexibleThermocouple Wire Type K

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type K Thermocouple Wire Extension Grade

Chromel/Alumel Flexible Thermocouple Wire Type K

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type J Thermocouple Wire

Iron/Constantan Flexible Thermocouple Wire Type J

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type J Thermocouple Wire Extension Grade

Iron/Constantan Flexible Thermocouple Wire Type J

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type T Thermocouple Wire

Copper/Constantan Flexible Thermocouple Wire Type T

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type T Thermocouple Wire Extension Grade

Copper/Constantan Flexible Thermocouple Wire Type T

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type E Thermocouple Wire

Chromel/Constantan Flexible Thermocouple Wire Type E

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type E Thermocouple Wire Extension Grade

Chromel/Constantan Flexible Thermocouple Wire Type E

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type N Thermocouple Wire

Nicrosil/Nisil Flexible Thermocouple Wire Type N

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48

Flexible Type N Thermocouple Wire Extension Grade

Nicrosil/Nisil Flexible Thermocouple Wire Type N

AWG Nominal Conductor Diameter Nominal Thickness Gross Weight
Insulation Jacket O.D.
  mm mm mm mm kg/km
24 12.954 0.381 0.381 2.03/3.3 9
20 20.574 0.381 0.381 2.34/3.92 15
16 32.766 0.381 0.381 2.82/4.88 30
14 41.402 0.381 0.381 3.15/5.54 48
