13.8KV Silicone Rubber insulation High-voltage leading Wire

Apply to F or H class insulation motors and electrical appliances.

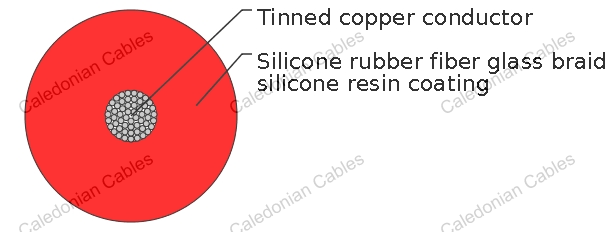

Conductor : Tinned copper wire

Insulation : Silicone rubber fiber glass braid silicone resin coating

Working voltage : 13.8kV

Vol. test : 30KV/5 min

Temp range : -60 ℃ ~ +180 ℃

Tensile strength(Before aging) : ≥5.0N/mm2

Elongation at break(Before aging) : ≥150%

Tensile strength(After aging) : ≥4.0N/mm2

Elongation at break(After aging) : ≥120%

No of Cores	Section	Conductor Structure	Nominal Insulation thickness	Nominal Wire OD
No of Cores	mm²	No./mm	mm	mm
1	4	56/0.30	4.0	10.7
1	6	84/0.30	4.0	11.3
1	10	80/0.40	4.0	12.6
1	16	126/0.40	4.0	13.8
1	25	196/0.40	4.0	15.3
1	35	276/0.40	4.0	16.6
1	50	396/0.40	4.0	18.7
1	70	360/0.50	4.0	20.4
1	95	485/0.50	4.0	22.5
1	120	608/0.50	4.0	24.0
1	150	756/0.50	4.2	26.4
1	185	925/0.50	4.2	28.4
1	240	1221/0.50	4.5	32.0
1	300	1525/0.50	4.5	35.0
1	400	2037/0.50	4.5	39.0
