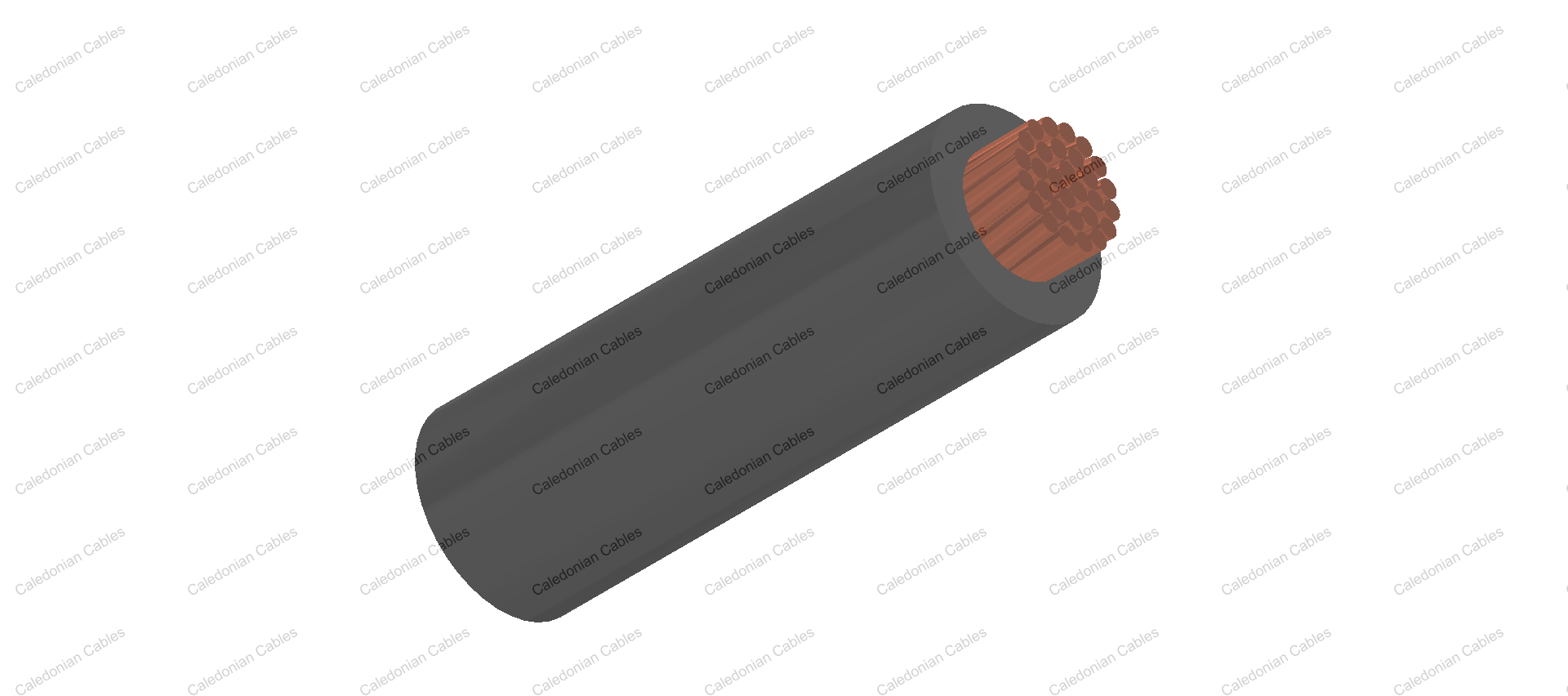

Single core cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc.

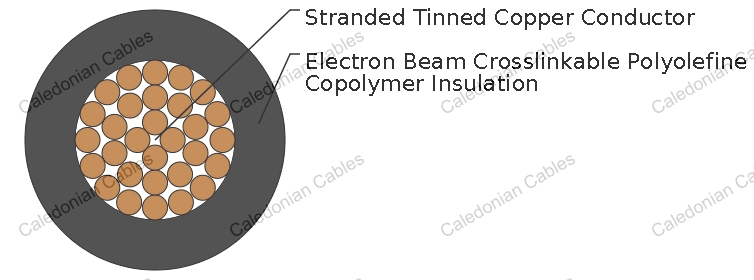

Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation : Electron beam crosslinkable polyolefine copolymer.
Colour Code : Various colours on request.
| Nominal Conductor Cross Section | mm² | 0.25 | 0.34 | 0.50 | 0.75 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Maximum Conductor Resistance | Ω/km | 85.9 | 57.2 | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | 5.09 | 3.39 | 1.95 | 1.24 | 0.795 | 0.565 | 0.393 | 0.277 | 0.21 | 0.164 | 0.132 | 0.108 | 0.0817 |
| Voltage Rating | V | 450/750V (≤0.5mm²); 600/1000V (>0.5mm²) | |||||||||||||||||||
Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing)
Temperature Range : -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing)
Short Circuit Temperature : +280℃
| No. of cores& Nominal Conductor Cross Sectional Area | Number and Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No.×mm² | No./mm | mm | mm | kg/km |
| 1×0.25 | 19/0.13 | 0.5 | 1.5 | 4 |
| 1×0.34 | 19/0.16 | 0.5 | 1.6 | 5 |
| 1×0.50 | 19/0.18 | 0.5 | 1.7 | 7 |
| 1×0.75 | 24/0.20 | 0.6 | 2.2 | 10 |
| 1×1.0 | 32/0.20 | 0.6 | 2.6 | 13 |
| 1×1.5 | 30/0.25 | 0.6 | 2.7 | 20 |
| 1×2.5 | 48/0.25 | 0.7 | 3.4 | 31 |
| 1×4.0 | 56/0.30 | 0.8 | 4.1 | 46 |
| 1×6.0 | 81/0.30 | 0.9 | 5.2 | 65 |
| 1×10.0 | 78/0.40 | 1.0 | 6.4 | 110 |
| 1×16.0 | 119/0.40 | 1.1 | 7.6 | 165 |
| 1×25.0 | 182/0.40 | 1.3 | 9.2 | 250 |
| 1×35.0 | 266/0.40 | 1.3 | 10.6 | 345 |
| 1×50.0 | 378/0.40 | 1.6 | 12.3 | 550 |
| 1×70.0 | 348/0.50 | 1.6 | 14.6 | 780 |
| 1×95.0 | 444/0.50 | 1.8 | 16.3 | 1010 |
| 1×120.0 | 551/0.50 | 1.8 | 18.4 | 1280 |
| 1×150.0 | 722/0.50 | 1.9 | 20.8 | 1420 |
| 1×185.0 | 874/0.50 | 2.0 | 22.5 | 1710 |
| 1×240.0 | 1147/0.50 | 2.2 | 25.7 | 2250 |
