    FRA 145/S EMC Screened Multicore

    • FRA 145/S EMC Screened Multicore

    Application

    Multicore cable with improved fire performance and very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc. Used for fixed and flexible application in dry, humid and wet rooms.

    Standards

    • EN45545-2
    • IEC 60754-1, EN 50267-2-1 (halogen free)
    • IEC 60754-2, EN 50267-2-2 (no corrosive gases)
    • NES 02-713, NFC 20-454 (no toxic gases)
    • IEC 61034, EN 50268-2 (low smoke density)
    • IEC 60332-1, EN 50265-2-1 (flame retardant)
    • IEC 60332-3, EN 50266-2, NF C 32-070 (non-flame propagating)
    • DIN 51900 (low fire load)

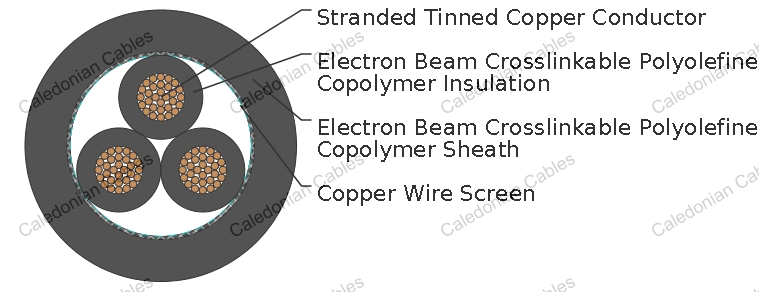

    Cable Construction

    Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.

    Insulation : Electron beam crosslinkable polyolefine copolymer.

    Screen : Copper wire screen.

    Sheath : Electron beam crosslinkable polyolefine copolymer.

    Electrical Characteristics at 20 °C

    Nominal Conductor Cross Section mm² 0.50 0.75 1.0 1.5 2.5 4.0 6.0 10
    Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 5.09 3.39 1.95
    Voltage Rating KV 300/500V (≤1mm²); 450/750V (≥1.5mm²)

    Mechanical and Thermal Properties

    Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing)

    Temperature Range : -55℃ ~+145℃ (Static); -40℃ ~+120℃ (Flexing)

    Short Circuit Temperature : +280℃

    Dimensions and Weight

    No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
    No.×mm² No./mm mm mm kg/km
    1×0.5 19/0.18 0.5 3.7 23
    2×0.5 19/0.18 0.5 5.6 45
    3×0.5 19/0.18 0.5 6.1 59
    4×0.5 19/0.18 0.5 6.7 72
    5×0.5 19/0.18 0.5 7.3 86
    6×0.5 19/0.18 0.5 7.9 102
    7×0.5 19/0.18 0.5 8.4 118
    8×0.5 19/0.18 0.5 9.0 133
    10×0.5 19/0.18 0.5 10.0 157
    12×0.5 19/0.18 0.5 10.0 164
    1×0.75 24/0.20 0.6 4.0 28
    2×0.75 24/0.20 0.6 6.7 66
    3×0.75 24/0.20 0.6 7.1 78
    4×0.75 24/0.20 0.6 7.7 94
    5×0.75 24/0.20 0.6 8.5 113
    6×0.75 24/0.20 0.6 8.9 132
    7×0.75 24/0.20 0.6 9.9 158
    8×0.75 24/0.20 0.6 10.6 181
    10×0.75 24/0.20 0.6 11.5 209
    12×0.75 24/0.20 0.6 11.5 219
    14×0.75 24/0.20 0.6 12.2 251
    16×0.75 24/0.20 0.6 12.9 279
    19×0.75 24/0.20 0.6 14.5 347
    21×0.75 24/0.20 0.6 15.3 385
    1×1 32/0.20 0.6 4.2 33
    2×1 32/0.20 0.6 7.2 79
    3×1 32/0.20 0.6 7.7 89
    4×1 32/0.20 0.6 8.3 113
    5×1 32/0.20 0.6 9.0 134
    6×1 32/0.20 0.6 9.5 156
    7G1 32/0.20 0.6 10.9 187
    8×1 32/0.20 0.6 11.4 218
    10×1 32/0.20 0.6 12.5 253
    12×1 32/0.20 0.6 12.5 266
    1×1.5 30/0.25 0.6 4.8 43
    2×1.5 30/0.25 0.6 8.4 105
    3×(G)1.5 30/0.25 0.6 8.9 119
    4×(G)1.5 30/0.25 0.6 9.9 163
    5×1.5 30/0.25 0.6 10.7 183
    6×1.5 30/0.25 0.6 11.5 219
    7×(G)1.5 30/0.25 0.6 12.7 273
    8×1.5 30/0.25 0.6 13.7 305
    10×1.5 30/0.25 0.6 15.0 309
    12×1.5 30/0.25 0.6 15.0 371
    14×1.5 30/0.25 0.6 16.0 455
    16×1.5 30/0.25 0.6 17.0 502
    19×1.5 30/0.25 0.6 19.3 627
    21×1.5 30/0.25 0.6 20.3 698
    25×1.5 30/0.25 0.6 21.7 737
    1×2.5 50/0.25 0.7 5.6 61
    2×2.5 50/0.25 0.7 9.9 157
    3×(G)2.5 50/0.25 0.7 10.5 198
    4×2.5 50/0.25 0.7 11.5 236
    5×(G)2.5 50/0.25 0.7 12.6 287
    6×2.5 50/0.25 0.7 13.8 321
    7G2.5 50/0.25 0.7 15.5 430
    8×2.5 50/0.25 0.7 16.5 461
    10×2.5 50/0.25 0.7 18.3 534
    12×2.5 50/0.25 0.7 18.3 569
    14×2.5 50/0.25 0.7 19.6 664
    16×2.5 50/0.25 0.7 20.7 753
    19×2.5 50/0.25 0.7 23.5 934
    21×2.5 50/0.25 0.7 24.4 1022
    1×4 56/0.30 0.8 6.3 84
    2×4 56/0.30 0.8 10.9 174
    3×4 56/0.30 0.8 11.5 226
    4×4 56/0.30 0.8 13.2 317
    5G4 56/0.30 0.8 14.5 376
    6×4 56/0.30 0.8 15.6 436
    7×4 56/0.30 0.8 17.0 531
    8×4 56/0.30 0.8 18.3 610
    10×4 56/0.30 0.8 20.7 736
    12×4 56/0.30 0.8 20.7 791
    14×4 56/0.30 0.8 22.1 910
    1×6 81/0.30 0.9 6.9 109
    2×6 81/0.30 0.9 12.1 250
    3×6 81/0.30 0.9 12.8 316
    4×6 81/0.30 0.9 14.3 404
    5×6 81/0.30 0.9 16.0 518
    6×6 81/0.30 0.9 17.4 595
    7×6 81/0.30 0.9 19.3 716
    1×10 78/0.40 1.0 8.4 168
    2×10 78/0.40 1.0 15.1 390
    3G10 78/0.40 1.0 16.4 529
    4G10 78/0.40 1.0 18.1 669
    5G10 78/0.40 1.0 20.2 840
    6G10 78/0.40 1.0 22.3 973
    7G10 78/0.40 1.0 24.3 1132
