    4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core

    • 4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core
    • 4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core
    • 4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core

    Application

    Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

    Standards

    • EN45545-2
    • BS 6853 -1a
    • DIN 5510-2 1-4
    • NFF 16-101 F0

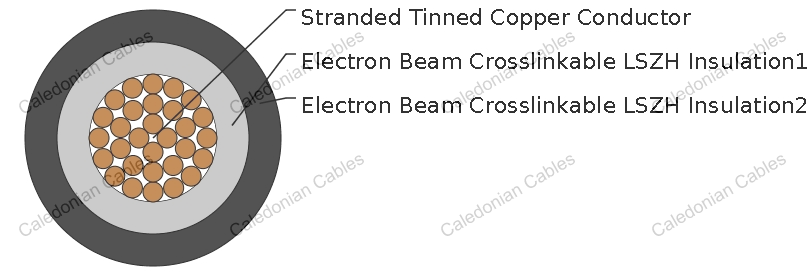

    Cable Construction

    Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.

    Insulation1 : Electron beam crosslinkable LSZH compound.

    Insulation2 : Electron beam crosslinkable LSZH compound.

    Electrical Characteristics at 20 °C

    Nominal Conductor Cross Section mm² 1.0 1.5 2.5 4.0 6.0 10 16 25 35 50 70 95 120 150 185 240 300 400
    Maximum Conductor Resistance Ω/km 20.0 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393 0.277 0.21 0.164 0.132 0.108 0.0817 0.0654 0.0495
    Voltage Rating KV 1.8/3.0

    Mechanical and Thermal Properties

    Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing)

    Temperature Range : -60℃ ~ +120℃ (Static); -40℃ ~ +90℃ (Flexing)

    Short Circuit Temperature : +280℃

    Dimensions and Weight

    No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
    No.×mm² No./mm mm mm kg/km
    1×1.0 32/0.20 0.7 2.8 17
    1×1.5 30/0.25 0.8 3.2 23
    1×2.0 37/0.26 0.8 3.55 28
    1×2.5 50/0.25 0.9 3.75 34
    1×4.0 56/0.30 1.0 4.5 53
    1×6.0 84/0.30 1.1 5.1 74
    1×10 80/0.40 1.2 6.35 118
    1×16 119/0.41 126/0.40 1.5 8.3 180
    1×25 182/0.41 196/0.40 1.8 10.2 274
    1×35 266/0.41 276/0.40 2.0 11.7 379
    1×50 378/0.41 396/0.40 2.2 13.6 550
    1×70 348/0.51 360/0.50 2.1 15.6 730
    1×95 444/0.51 475/0.50 2.3 17.3 940
    1×120 551/0.51 608/0.50 2.4 19.6 1180
    1×150 722/0.51 756/0.50 2.6 21.9 1510
    1×185 874/0.51 925/0.50 2.8 23.8 1802
    1×240 1147/0.51 1221/0.50 2.9 26.9 2290
    1×300 1443/0.51 1525/0.50 3.0 29.7 2928
    1×400 2016/0.51 2013/0.50 3.4 35.8 4040
