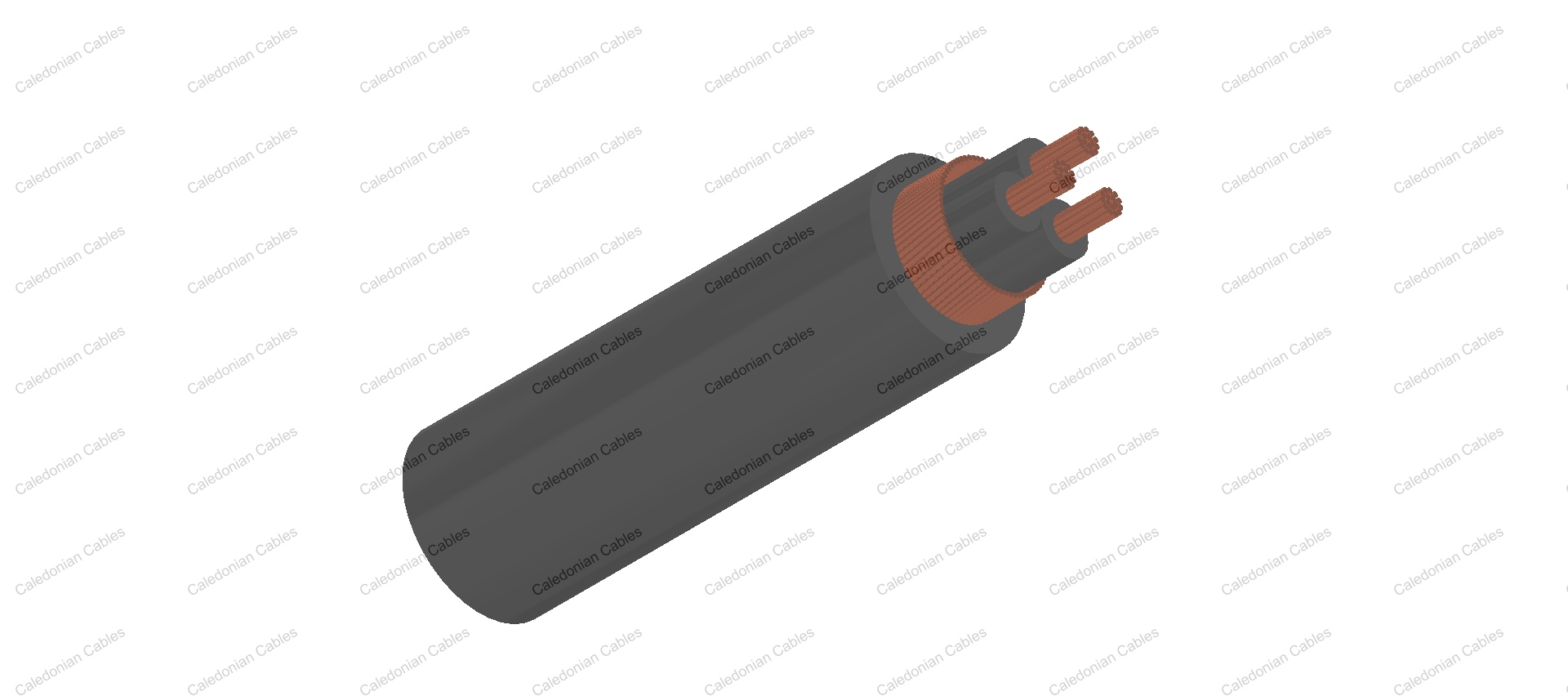

    3GKW-MW/S EMC 0.6/1KV Medium Wall Screened Multicore

    • 3GKW-MW/S EMC 0.6/1KV  Railway Cables
    • 3GKW-MW/S EMC 0.6/1KV Medium Wall Screened Multicore
    • 3GKW-MW/S EMC 0.6/1KV Medium Wall Screened Multicore

    Application

    Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

    Standards

    • EN45545-2
    • BS 6853 -1a
    • DIN 5510-2 1-4
    • NFF 16-101 F0

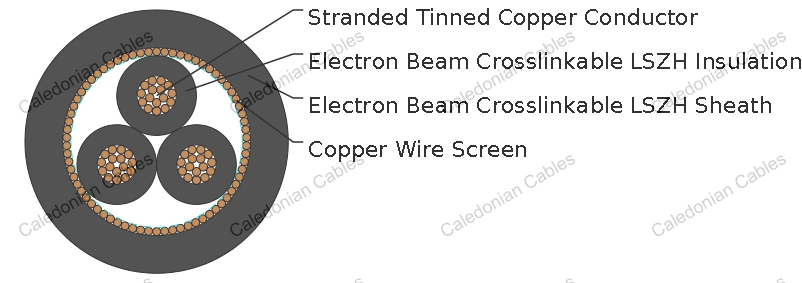

    Cable Construction

    Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.

    Insulation : Electron beam crosslinkable LSZH compound.

    Screen : Copper wire screen.

    Sheath : Electron beam crosslinkable LSZH compound.

    Electrical Characteristics at 20 °C

    Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35 50
    Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
    Voltage Rating KV 0.6/1

    Mechanical and Thermal Properties

    Minimum Bending Radius : 4xOD (Static); 8xOD (Flexing)

    Temperature Range : -60℃ ~ +120℃ (Static); -40℃ ~ +90℃ (Flexing)

    Short Circuit Temperature : +280℃

    Dimensions and Weight

    No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
    No.×mm² No./mm mm mm kg/km
    2×0.5 19/0.18 16/0.20 0.5 6.6 68
    3×0.5 19/0.18 16/0.20 0.5 6.9 75
    4×0.5 19/0.18 16/0.20 0.5 7.5 81
    5×0.5 19/0.18 16/0.20 0.5 8.2 93
    6×0.5 19/0.18 16/0.20 0.5 8.8 111
    7×0.5 19/0.18 16/0.20 0.5 9.8 125
    8×0.5 19/0.18 16/0.20 0.5 10.3 143
    9×0.5 19/0.18 16/0.20 0.5 10.8 149
    10×0.5 19/0.18 16/0.20 0.5 11.0 154
    12×0.5 19/0.18 16/0.20 0.5 12.3 175
    14×0.5 19/0.18 16/0.20 0.5 13.0 198
    15×0.5 19/0.18 16/0.20 0.5 13.4 210
    16×0.5 19/0.18 16/0.20 0.5 13.7 223
    20×0.5 19/0.18 16/0.20 0.5 14.0 274
    24×0.5 19/0.18 16/0.20 0.5 14.2 310
    27×0.5 19/0.18 16/0.20 0.5 14.5 343
    9×2×0.5 19/0.18 16/0.20 0.5 20.6 540
    2×0.75 19/0.21 24/0.20 0.5 7.2 80
    3×0.75 19/0.21 24/0.20 0.5 7.5 90
    4×0.75 19/0.21 24/0.20 0.5 8.3 116
    5×0.75 19/0.21 24/0.20 0.5 9.1 133
    6×0.75 19/0.21 24/0.20 0.5 9.9 165
    7×0.75 19/0.21 24/0.20 0.5 10.7 186
    8×0.75 19/0.21 24/0.20 0.5 11.5 194
    9×0.75 19/0.21 24/0.20 0.5 12.3 220
    10×0.75 19/0.21 24/0.20 0.5 12.6 250
    12×0.75 19/0.21 24/0.20 0.5 13.2 278
    14×0.75 19/0.21 24/0.20 0.5 13.8 300
    16×0.75 19/0.21 24/0.20 0.5 14.4 348
    20×0.75 19/0.21 24/0.20 0.5 14.5 354
    24×0.75 19/0.21 24/0.20 0.5 15.6 401
    27×0.75 19/0.21 24/0.20 0.5 16.3 459
    5×2×0.75 19/0.21 24/0.20 0.5 16.0 350
    2×1.0 32/0.20 0.55 7.4 93
    3×1.0 32/0.20 0.55 8.1 114
    4×1.0 32/0.20 0.55 8.8 140
    5×1.0 32/0.20 0.55 9.8 158
    6×1.0 32/0.20 0.55 10.8 170
    7×1.0 32/0.20 0.55 11.8 189
    8×1.0 32/0.20 0.55 11.8 219
    9×1.0 32/0.20 0.55 12.0 223
    10×1.0 32/0.20 0.55 12.2 234
    12×1.0 32/0.20 0.55 12.5 268
    14×1.0 32/0.20 0.55 13.2 305
    16×1.0 32/0.20 0.55 13.9 339
    20×1.0 32/0.20 0.55 15.6 430
    24×1.0 32/0.20 0.55 17.1 511
    27×1.0 32/0.20 0.55 17.7 560
    2×1.5 30/0.25 0.55 8.1 114
    3×1.5 30/0.25 0.55 8.6 124
    4×1.5 30/0.25 0.55 9.9 139
    5×1.5 30/0.25 0.55 10.9 150
    6×1.5 30/0.25 0.55 11.7 173
    7×1.5 30/0.25 0.55 13.2 203
    8×1.5 30/0.25 0.55 14.6 243
    9×1.5 30/0.25 0.55 14.9 274
    10×1.5 30/0.25 0.55 15.5 299
    12×1.5 30/0.25 0.55 16.2 342
    14×1.5 30/0.25 0.55 16.8 390
    16×1.5 30/0.25 0.55 17.5 560
    20×1.5 30/0.25 0.55 17.6 614
    24×1.5 30/0.25 0.55 19.3 670
    27×1.5 30/0.25 0.55 19.9 734
    6×2×1.5 30/0.25 0.55 18.9 540
    2×2.5 50/0.25 0.6 9.6 160
    3×2.5 50/0.25 0.6 10.5 200
    4×2.5 50/0.25 0.6 11.3 220
    5×2.5 50/0.25 0.6 12.7 250
    6×2.5 50/0.25 0.6 13.7 345
    7×2.5 50/0.25 0.6 14.8 400
    8×2.5 50/0.25 0.6 14.9 410
    9×2.5 50/0.25 0.6 16.0 437
    10×2.5 50/0.25 0.6 16.0 461
    12×2.5 50/0.25 0.6 16.8 531
    14×2.5 50/0.25 0.6 17.7 601
    16×2.5 50/0.25 0.6 19.0 691
    20×2.5 50/0.25 0.6 23.3 969
    24×2.5 50/0.25 0.6 23.5 1004
    27×2.5 50/0.25 0.6 24.0 1104
    2×4 56/0.30 0.65 10.8 216
    3×4 56/0.30 0.65 11.8 260
    4×4 56/0.30 0.65 13.3 345
    5×4 56/0.30 0.65 14.7 440
    5×4 56/0.30 0.65 14.7 460
    5×4 56/0.30 0.65 15.7 485
    5×4 56/0.30 0.65 17.2 584
    5×4 56/0.30 0.65 18.3 605
    5×4 56/0.30 0.65 18.3 641
    12×4 56/0.30 0.65 19.5 760
    2×6 84/0.30 0.7 12.1 291
    3×6 84/0.30 0.7 13.8 370
    4×6 84/0.30 0.7 16.3 458
    5×6 84/0.30 0.7 17.4 620
    6×6 84/0.30 0.7 17.4 640
    7×6 84/0.30 0.7 17.8 673
    8×6 84/0.30 0.7 19.4 774
    9×6 84/0.30 0.7 20.7 820
    10×6 84/0.30 0.7 20.7 875
    12×6 84/0.30 0.7 21.8 1026
    2×10 80/0.40 0.8 14.3 432
    3×10 80/0.40 0.8 17.1 580
    4×10 80/0.40 0.8 19.2 750
    5×10 80/0.40 0.8 21.1 850
    6×10 80/0.40 0.8 21.9 875
    7×10 80/0.40 0.8 22.8 1019
    8×10 80/0.40 0.8 23.7 1190
    2×16 119/0.40 126/0.40 0.9 18.2 660
    3×16 119/0.40 126/0.40 0.9 20.5 820
    4×16 119/0.40 126/0.40 0.9 20.4 874
    5×16 119/0.40 126/0.40 0.9 22.7 1083
    6×16 119/0.40 126/0.40 0.9 24.9 1294
    7×16 119/0.40 126/0.40 0.9 27.1 1521
    8×16 119/0.40 126/0.40 0.9 29.6 1808
    2×25 182/0.40 196/0.40 1.0 22.9 990
    3×25 182/0.40 196/0.40 1.0 24.4 1075
    4×25 182/0.40 196/0.40 1.0 25.2 1404
    5×25 182/0.40 196/0.40 1.0 27.0 1750
    3×35 266/0.40 276/0.40 1.1 27.9 1600
    6×35 266/0.40 276/0.40 1.1 39.7 3350
    2×50 378/0.40 396/0.40 1.2 29.8 1760
