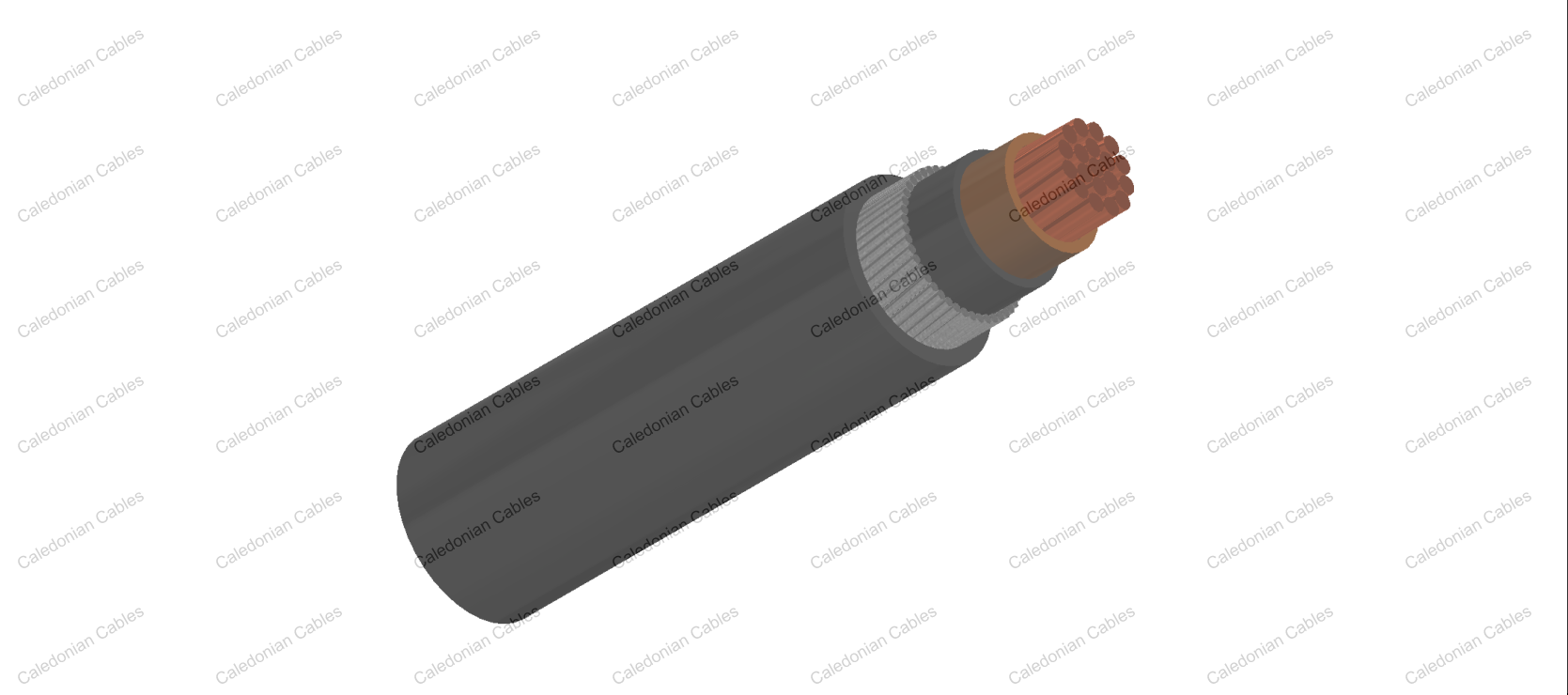

    600/1000V XLPE Insulated, LSZH Sheathed, Armoured Power Cables to BS 6724 (Single Core)

    FTX300 1RZ1MAZ1-R (CU/XLPE/LSZH/AWA/LSZH 600/1000V Class 2)

    APPLICATION

    The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings. This product type is TUV approved.

    STANDARDS

    Basic design to BS 6724

    FIRE PERFORMANCE

    Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    VOLTAGE RATING

    600/1000V

    CABLE CONSTRUCTION

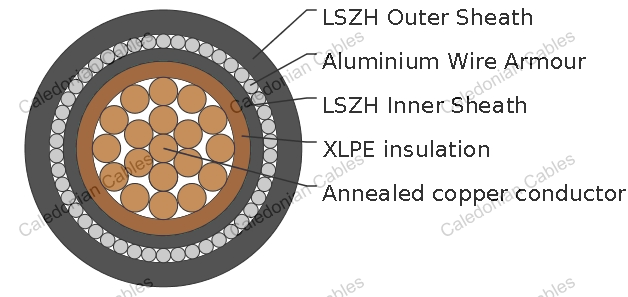

    Conductor : Annealed copper wire, stranded according to BS EN 60228 class 2.

    Insulation : XLPE type GP8 according to BS 7655-1.3. HEPR type GP6 according to BS 7655-1.2 or crosslinked polyolefin material type EI 5 according to BS EN 50363-5 can be offered as option.

    Bedding : Extruded layer of polymeric material.

    Armouring : Aluminium wire.

    Outer Sheath : Extruded layer of polymeric material LTS 1 according to BS 7655-6.1.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour : Brown or blue; other colours can be offered upon request.

    Sheath Colour : Black; other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Maximum temperature range during operation : 90°C

    Maximum short circuit temperature (5 Seconds) : 250°C

    Minimum bending radius : 6 × Overall Diameter

    CONSTRUCTION PARAMETERS

    Conductor FTX300 1RZ1MAZ1-R
    No. of Cores × Cross-sectional Area Conductor Class Nominal Insulation Thickness Nominal Bedding Thickness Nominal AL Wire Armour Diameter Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No.×mm²   mm mm mm mm mm kg/km
    1×50 2 1.0 0.8 0.9 1.5 17.5 688
    1×70 2 1.1 0.8 1.25 1.5 20.2 941
    1×95 2 1.1 0.8 1.25 1.6 22.3 1244
    1×120 2 1.2 0.8 1.25 1.6 24.2 1524
    1×150 2 1.4 1.0 1.6 1.7 27.4 1853
    1×185 2 1.6 1.0 1.6 1.8 30.0 2292
    1×240 2 1.7 1.0 1.6 1.8 32.8 2925
    1×300 2 1.8 1.0 1.6 1.9 35.6 3612
    1×400 2 2.0 1.2 2.0 2.0 40.5 4653
    1×500 2 2.2 1.2 2.0 2.1 44.2 5779
    1×630 2 2.4 1.2 2.0 2.2 48.8 7341
    1×800 2 2.6 1.4 2.5 2.4 55.4 9364
    1×1000 2 2.8 1.4 2.5 2.5 60.6 11644

    ELECTRICAL PROPERTIES

    Conductor operating temperature : 90°C

    Ambient temperature : 30°C

    Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4E3A

    Conductor cross-sectional area Ref. Method C (clipped direct) Ref. Method F (in free air or on a perforated cable tray, horizontal or vertical)
    Touching Touching Spaced by on cable diameter
    2 cables, single-phase a.c. or d.c. flat 3 or 4 cables, three-phase a.c. flat 2 cables, single-phase a.c. or d.c. flat 3 or 4 cables, three-phase a.c. flat 3 cables three-phase a.c. trefoil 2 cables, d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
    Horizontal Vertical Horizontal Vertical Horizontal Vertical
    1 2 3 4 5 6 7 8 9 10 11 12
    mm² A A A A A A A A A A A
    50 237 220 253 232 222 284 270 282 266 288 266
    70 303 277 322 293 285 356 349 357 337 358 331
    95 367 333 389 352 346 446 426 436 412 425 393
    120 425 383 449 405 402 519 497 504 477 485 449
    150 488 437 516 462 463 600 575 566 539 549 510
    185 557 496 587 524 529 688 660 643 614 618 574
    240 656 579 689 612 625 815 782 749 714 715 666
    300 755 662 792 700 720 943 906 842 805 810 755
    400 853 717 899 767 815 1137 1094 929 889 848 797
    500 962 791 1016 851 918 1314 1266 1032 989 923 871
    630 1082 861 1146 935 1027 1528 1474 1139 1092 992 940
    800 1170 904 1246 987 1119 1809 1744 1204 1155 1042 978
    1000 1261 961 1345 1055 1214 2100 2026 1289 1238 1110 1041

    Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E3B

    Conductor cross-sectional area 2 cables d.c. Ref. Methods C&F (clipped direct, on trays or in free air)
    2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
    Touching Spaced* Trefoil and touching Flat and touching Flat and spaced*
    1 2 3 4 5 6 7
    mm² mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
        r x z r x z r x z r x z r x z
    50 0.98 0.99 0.21 1.00 0.98 0.29 1.00 0.86 0.180 0.87 0.84 0.25 0.88 0.84 0.33 0.90
    70 0.67 0.68 0.20 0.71 0.69 0.29 0.75 0.59 0.170 0.62 0.60 0.25 0.65 0.62 0.32 0.70
    95 0.49 0.51 0.195 0.55 0.53 0.28 0.60 0.44 0.170 0.47 0.46 0.24 0.52 0.49 0.31 0.58
    120 0.39 0.41 0.190 0.45 0.43 0.27 0.51 0.35 0.165 0.39 0.38 0.34 0.44 0.41 0.30 0.51
    150 0.31 0.33 0.185 0.38 0.36 0.27 0.45 0.29 0.160 0.33 0.31 0.23 0.39 0.34 0.39 0.45
    185 0.25 0.27 0.185 0.33 0.30 0.26 0.40 0.23 0.160 0.28 0.26 0.23 0.34 0.29 0.29 0.41
    240 0.195 0.21 0.180 0.28 0.24 0.26 0.35 0.180 0.155 0.24 0.21 0.22 0.30 0.24 0.28 0.37
    300 0.155 0.17 0.175 0.25 0.195 0.25 0.32 0.145 0.150 0.21 0.170 0.22 0.28 0.20 0.27 0.34
    400 0.115 0.145 0.170 0.22 0.180 0.24 0.30 0.125 0.150 0.195 0.160 0.21 0.27 0.20 0.27 0.33
    500 0.093 0.125 0.170 0.21 0.165 0.24 0.29 0.105 0.145 0.180 0.145 0.20 0.25 0.190 0.24 0.31
    630 0.073 0.105 0.165 0.195 0.150 0.23 0.27 0.092 0.145 0.170 0.135 0.195 0.24 0.175 0.23 0.29
    800 0.056 0.090 0.160 0.190 0.145 0.23 0.27 0.086 0.140 0.165 0.130 0.180 0.23 0.175 0.195 0.26
    1000 0.045 0.092 0.155 0.180 0.140 0.21 0.25 0.080 0.135 0.155 0.125 0.170 0.21 0.165 0.180 0.24

    Note: *Spacings larger than one cable diameter will result in a large voltage drop.

    r = conductor resistance at operating temperature

    x = reactance

    z = impedance
