LSZH Flame Retardant CAT6A Data Cables

FTX-CAT6AU/FTP4P23LH

FTX-CAT6AF/FTP4P23LH

FTX-CAT6AS/FTP4P23LH

APPLICATION

Cat6A Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. The LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

ISO/IEC 11801

EN 50173

ANSI/TIA/EIA 568

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2
CPR Compliance	B2ca,Cca

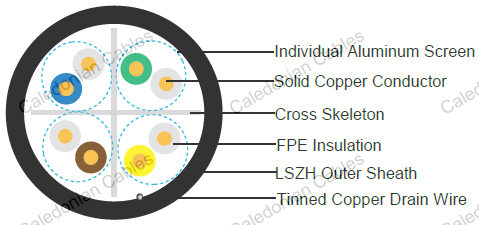

CABLE CONSTRUCTION

Conductors : 23AWG solid bare copper.

Insulation : FPE.

Twinning : Two coloured insulated conductors twisted together to form a pair.

Individual Screen : Aluminum/polyester tape with a tinned copper drain wire.

Wrapping Tape : Flame retardant tape and water blocking tape.

Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Cat6 F/FTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.

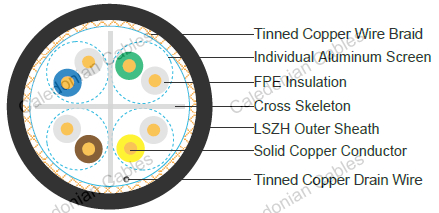

Cat6 SF/FTP : These cables have double collective shielding of Aluminium/polyester tape with drain wire& copper wire braid.

PHYSICAL AND THERMAL PROPERTIES

Temperature range : -20°C - +70°C

Minimum bending radius during installation (mobile state) : 8 × Overall Diameter

Minimum bending radius during operation (fixed state) : 4 × Overall Diameter

ELECTRICAL PROPERTIES

AWG		23
Nominal Conductor Diameter	mm	0.56/0.57/0.58
Maximum DC Resistance@20°C	Ω/100m	7.5
Maximum DCR Unbalance	%	3
Maximum Mutual Capacitance	pF/m	5.8
Maximum Capacitance Unbalance	pF/100m	30
Characteristic Impedance@1-100MHz	Ω	100±20
Maximum Propagation Delay Skew	ns/100m	18

TRANSMISSION PROPERTIES

FREQ	Attenuation	NEXT	PSNEXT	ELFEXT	PSELFEXT	RL
MHz	dB/100m	dB	dB	dB/100m	dB/100m	dB
0.772	1.8	76.0	74.0	70.0	67.0	—
1	2.0	74.3	72.3	67.8	64.8	20.0
4	3.8	65.3	63.3	55.7	52.7	23.0
8	5.3	60.8	58.8	49.7	46.7	24.5
10	6.0	59.3	57.3	47.8	44.8	25.0
16	7.6	56.3	54.3	43.7	40.7	25.0
20	8.5	54.8	52.8	41.7	38.7	25.0
25	9.5	53.3	51.3	39.8	36.8	24.3
31.25	10.7	51.9	49.9	37.9	34.9	23.6
62.5	15.4	47.4	45.4	31.8	28.8	21.5
100	19.8	44.3	42.3	27.8	24.8	20.1
155	25.2	41.5	39.5	23.9	20.9	18.8
200	29.0	39.8	37.8	21.7	18.7	18.0
250	32.8	38.3	36.3	19.8	16.8	17.3

CONSTRUCTION PARAMETERS

Cable Code	Conductor Diameter	Diameter Over Insulation	Pairs	Screen	Aprrox. Overall Diameter
	mm	mm			mm
FTX-CAT6AU/FTP4P23LH	0.56/0.57	1.32	4	Individual Aluminum Tape Screen	7.6
FTX-CAT6AF/FTP4P23LH	0.57/0.58	1.32	4	Individual Aluminum Tape Screen & Overall Aluminum Tape Screen	7.9
FTX-CAT6AS/FTP4P23LH	0.57/0.58	1.32	4	Individual Aluminum Tape Screen& Copper Wire Braid	8.2

Note : The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
