    LSZH Flame Retardant RS 485 Databus Cables

    i
    • Flame Retardant RS 485 Databus Cable
    • LSZH RS485 Databus Cable

    APPLICATION

    The cables are designed for RS 485 data connections where continued functionality is required during a fire situation. This cable combines low capacitance insulation with one of the highest levels of screening to provide high speed, interference free, data transmission where continued functionality is required during a fire situation.

    STANDARDS

    Basic design adapted to EIA/TIA 485

    FIRE PERFORMANCE

    Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2
    CPR Compliance Eca

    CABLE CONSTRUCTION

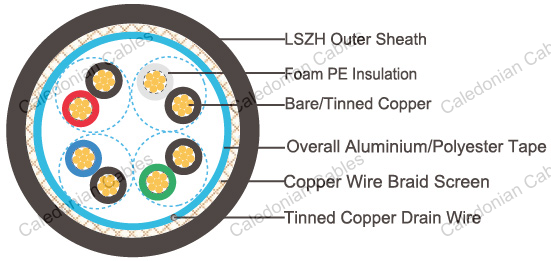

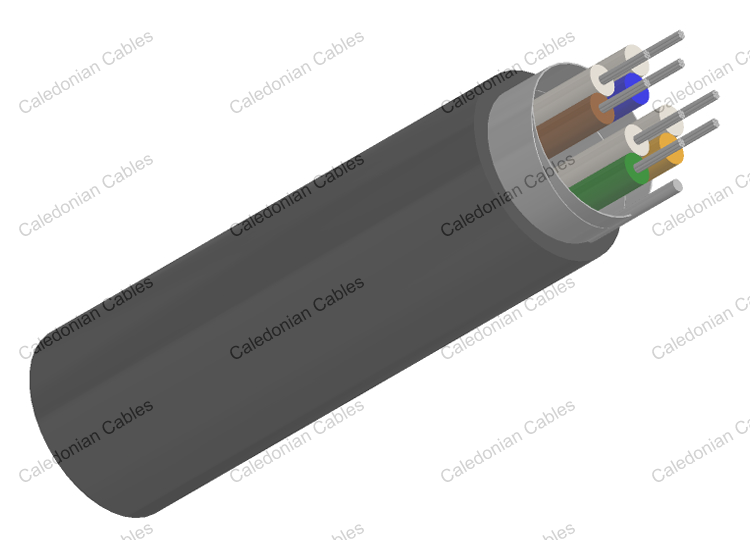

    MULTIPAIR RS 485 OVERALL SCREENED DATABUS CABLE

    Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.

    Insulation : Foam PE or foam skin PE.

    Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.

    Cabling : Pairs are cabled together in concentric layers.

    Overall Screen : Aluminum/polyester tape with tinned copper drain wire.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    MULTIPAIR RS 485 OVERALL DOUBLE SCREENED DATABUS CABLE

    Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.

    Insulation : Foam PE or foam skin PE.

    Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.

    Cabling : Pairs are cabled together in concentric layers.

    Overall Screen : Aluminium/polyester tape+copper wire braid.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    MULTIPAIR RS 485 INDIVIDUAL & OVERALL SCREENED DATABUS CABLE

    Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.

    Insulation : Foam PE or foam skin PE.

    Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.

    Cabling : Pairs are cabled together in concentric layers.

    Individual Screen : Individual aluminium/polyester tape.

    Overall Screen : Copper wire braid.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    MULTIPAIR RS 485 OVERALL SCREENED DATABUS CABLE

    Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.

    Insulation : Foam PE or foam skin PE.

    Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.

    Cabling : Pairs are cabled together in concentric layers.

    Overall Screen : Copper wire braid.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation (fixed state) : -20°C - +90°C

    Temperature range during installation (mobile state) : -5°C - +60°C

    Minimum bending radius : 8 x Overall Diameter

    ELECTRICAL PROPERTIES

    Dielectric test 1000 V r.m.s. for 5’ (core-core)
    1000 V r.m.s. for 5’ (core-screen)
    Impedance 120Ω
    Capacitance 45 nF/km conductor to conductor
    90 nF/km conductor to shield

    CONSTRUCTION PARAMETERS

    Multipair RS 485 Overall Screened Databus Cable

    RE-02Y(St)H / RE-02YS(St)H

    No.of Pair Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No. mm² No/mm mm mm mm kg/km
    1 0.22 7/0.2 0.7 1.1 5.7 45
    2 0.22 7/0.2 0.7 1.1 9.0 80
    4 0.22 7/0.2 0.7 1.1 10.3 112
    1 0.50 16/0.2 0.7 1.1 6.2 57
    2 0.50 16/0.2 0.7 1.1 10.1 103
    4 0.50 16/0.2 0.7 1.1 11.7 153
    1 0.75 24/0.2 0.7 1.1 6.7 66
    2 0.75 24/0.2 0.7 1.1 10.9 123
    4 0.75 24/0.2 0.7 1.1 12.7 187
    1 1.00 30/0.2 0.7 1.1 6.8 72
    2 1.00 30/0.2 0.7 1.1 11.2 131
    4 1.00 30/0.2 0.7 1.1 13.0 203

    Multipair RS 485 Overall Double Screened Databus Cable

    RE-02Y(St)CH / RE-02YS(St)CH

    No.of Pair Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No. mm² No/mm mm mm mm kg/km
    1 0.22 7/0.2 0.7 1.1 6.2 60
    2 0.22 7/0.2 0.7 1.1 9.4 105
    4 0.22 7/0.2 0.7 1.1 10.8 142
    1 0.50 16/0.2 0.7 1.1 6.7 74
    2 0.50 16/0.2 0.7 1.1 10.6 133
    4 0.50 16/0.2 0.7 1.1 12.1 187
    1 0.75 24/0.2 0.7 1.1 7.1 85
    2 0.75 24/0.2 0.7 1.1 11.4 155
    4 0.75 24/0.2 0.7 1.1 13.2 225
    1 1.00 30/0.2 0.7 1.1 7.3 91
    2 1.00 30/0.2 0.7 1.1 11.7 164
    4 1.00 30/0.2 0.7 1.1 13.5 242

    Multipair RS 485 Individual & Overall Screened Databus Cable

    RE-02Y(St)CH PiMF / RE-02YS(St)CH PiMF

    No.of Pair Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No. mm² No/mm mm mm mm kg/km
    1 0.22 7/0.2 0.7 1.1 6.4 61
    2 0.22 7/0.2 0.7 1.1 10.2 110
    4 0.22 7/0.2 0.7 1.1 11.7 149
    1 0.50 16/0.2 0.7 1.1 7.0 75
    2 0.50 16/0.2 0.7 1.1 11.4 137
    4 0.50 16/0.2 0.7 1.1 13.2 195
    1 0.75 24/0.2 0.7 1.1 7.5 86
    2 0.75 24/0.2 0.7 1.1 12.3 160
    4 0.75 24/0.2 0.7 1.1 14.3 233
    1 1.00 30/0.2 0.7 1.1 7.6 92
    2 1.00 30/0.2 0.7 1.1 12.6 169
    4 1.00 30/0.2 0.7 1.1 14.7 251

    Multipair RS 485 Overall Screened Databus Cable

    RE-02YCH / RE-02YSCH

    No.of Pair Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No. mm² No/mm mm mm mm kg/km
    1 0.22 7/0.2 0.7 1.1 6.0 56
    2 0.22 7/0.2 0.7 1.1 9.2 99
    4 0.22 7/0.2 0.7 1.1 10.6 134
    1 0.50 16/0.2 0.7 1.1 6.5 69
    2 0.50 16/0.2 0.7 1.1 10.4 125
    4 0.50 16/0.2 0.7 1.1 12.0 179
    1 0.75 24/0.2 0.7 1.1 6.9 80
    2 0.75 24/0.2 0.7 1.1 11.2 147
    4 0.75 24/0.2 0.7 1.1 13.0 216
    1 1.00 30/0.2 0.7 1.1 7.1 86
    2 1.00 30/0.2 0.7 1.1 11.5 156
    4 1.00 30/0.2 0.7 1.1 13.3 233
