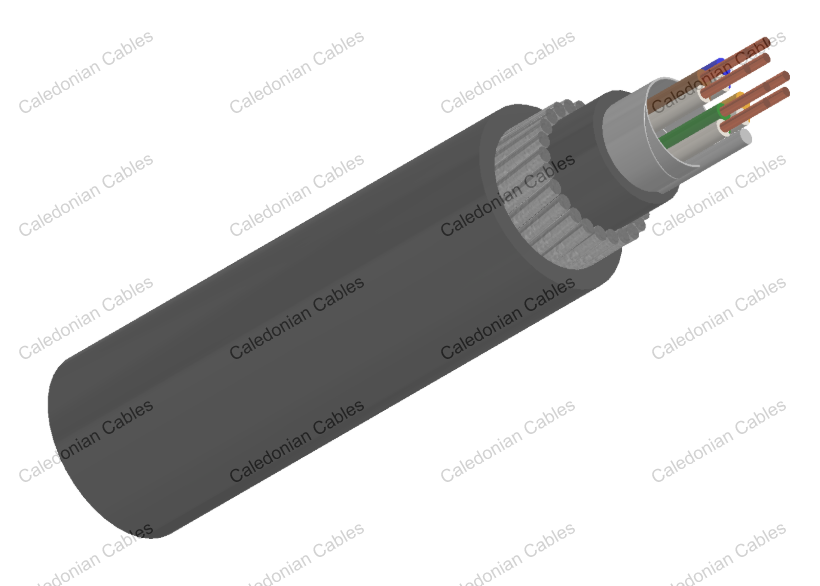

    LSZH Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables

    FTX-CAT5EU/UTP4P24LH CWB/SWB/SWA

    FTX-CAT5EF/UTP4P24LH CWB/SWB/SWA

    FTX-CAT5ESF/UTP4P24LH CWB/SWB/SWA

    i
    • FTX-CAT5E CWB/SWB/SWA

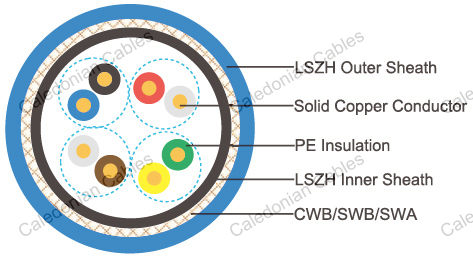

    • U/UTP CAT5E CWB/SWB/SWA
    • F/UTP CAT5E CWB/SWB/SWA
    • SF/UTP CAT5E CWB/SWB/SWA

    APPLICATION

    Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

    STANDARDS

    Basic design adapted to EN 50173

    FIRE PERFORMANCE

    Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    CABLE CONSTRUCTION

    Conductors : 24AWG solid bare copper.

    Insulation : PE.

    Twinning : Two coloured insulated conductors twisted together to form a pair.

    Inner Sheath : Thermoplastic LSZH compound.

    Armouring :

    CWB : Copper Wire Braid

    SWB : Steel Wire Braid

    SWA : Steel Wire Armour

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

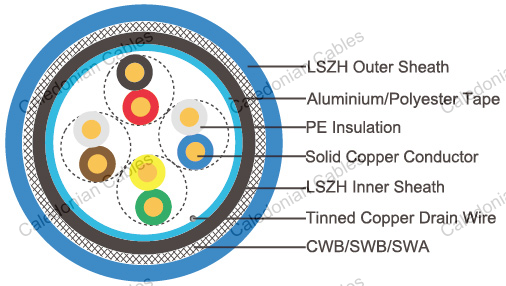

    Cat5EF/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.

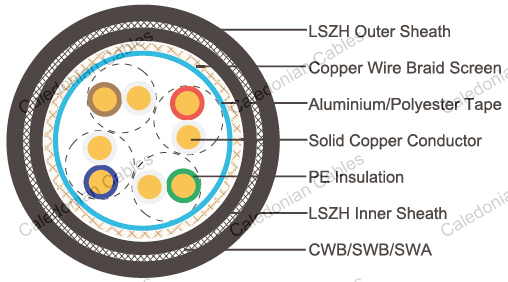

    Cat5ESF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range : -30°C - +75°C

    Minimum bending radius during installation (mobile state) : 8 x Overall Diameter

    Minimum bending radius during operation (fixed state) : 4 x Overall Diameter

    ELECTRICAL PROPERTIES

    AWG   24
    Nominal Conductor Diameter mm 0.50/0.51/0.53
    Maximum DC Resistance@20°C Ω/100m 9.38
    Maximum DCR Unbalance % 5
    Maximum Mutual Capacitance pF/m 55.8
    Maximum Capacitance Unbalance pF/100m 330
    Characteristic Impedance@1-100MHz Ω 100±15
    Maximum Propagation Delay Skew ns/100m 45

    TRANSMISSION PROPERTIES

    FREQ Attenuation NEXT PSNEXT ELFEXT PSELFEXT RL
    MHz dB/100m dB dB dB/100m dB/100m dB
    0.772 1.8 67.0 64.0 66.0 63.0
    1 2.0 65.3 62.3 63.8 60.8 20.0
    4 4.1 56.3 53.3 51.7 48.7 23.0
    8 5.8 51.8 48.8 45.7 42.7 24.5
    10 6.5 50.3 47.3 43.8 40.8 25.0
    16 8.2 47.3 44.3 39.7 36.7 25.0
    20 9.3 45.8 42.8 37.7 34.7 25.0
    25 10.4 44.3 41.3 35.8 32.8 24.3
    31.25 11.7 42.9 39.9 33.9 30.9 23.6
    62.5 17.0 38.4 35.4 27.8 24.8 21.5
    100 22.0 35.3 32.3 23.8 20.8 20.1

    CONSTRUCTION PARAMETERS

    Cable Code Construction No. of Elements×No. of Cores in Element×Conductor Diameter Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Aprrox. Overall Diameter Nominal Weight
    mm mm mm mm mm kg/km
    FTX-CAT5EU/UTP4P24LH CWB 4×2×0.5 0.2 0.6 1.0 7.68 102
    FTX-CAT5EU/UTP4P24LH SWB 4×2×0.5 0.2 0.6 1.0 7.68 98
    FTX-CAT5EU/UTP4P24LH SWA 4×2×0.5 0.2 0.6 1.0 8.68 170
    FTX-CAT5EF/UTP4P24LH CWB 4×2×0.53 0.2 0.6 1.0 8.28 121
    FTX-CAT5EF/UTP4P24LH SWB 4×2×0.53 0.2 0.6 1.0 8.28 117
    FTX-CAT5EF/UTP4P24LH SWA 4×2×0.53 0.2 0.6 1.0 9.28 197
    FTX-CAT5ESF/UTP4P24LH CWB 4×2×0.53 0.2 0.6 1.0 8.76 128
    FTX-CAT5ESF/UTP4P24LH SWB 4×2×0.53 0.2 0.6 1.0 8.76 124
    FTX-CAT5ESF/UTP4P24LH SWA 4×2×0.53 0.2 0.6 1.0 9.76 221
