300/500V PVC Insulated, Non-sheathed Power Cables (Single Core)

FGD100 05V-U/R/K (CU/PVC 300/500V Class 1/2/5)

BS Code: 2491X

HAR Code: H05V-U, H05V-R, H05V-K

APPLICATION

This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design to BS EN 50525-2-31(formerly BS 6004:2000)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2

VOLTAGE RATING

300/500V

CABLE CONSTRUCTION

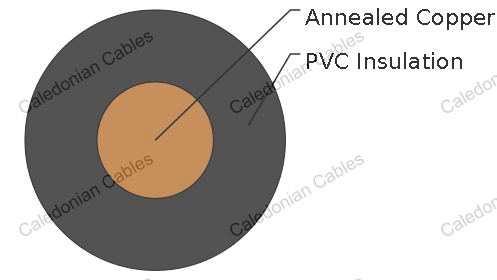

Conductor	H05V-U	Class 1 solid copper conductor to BS EN 60228.

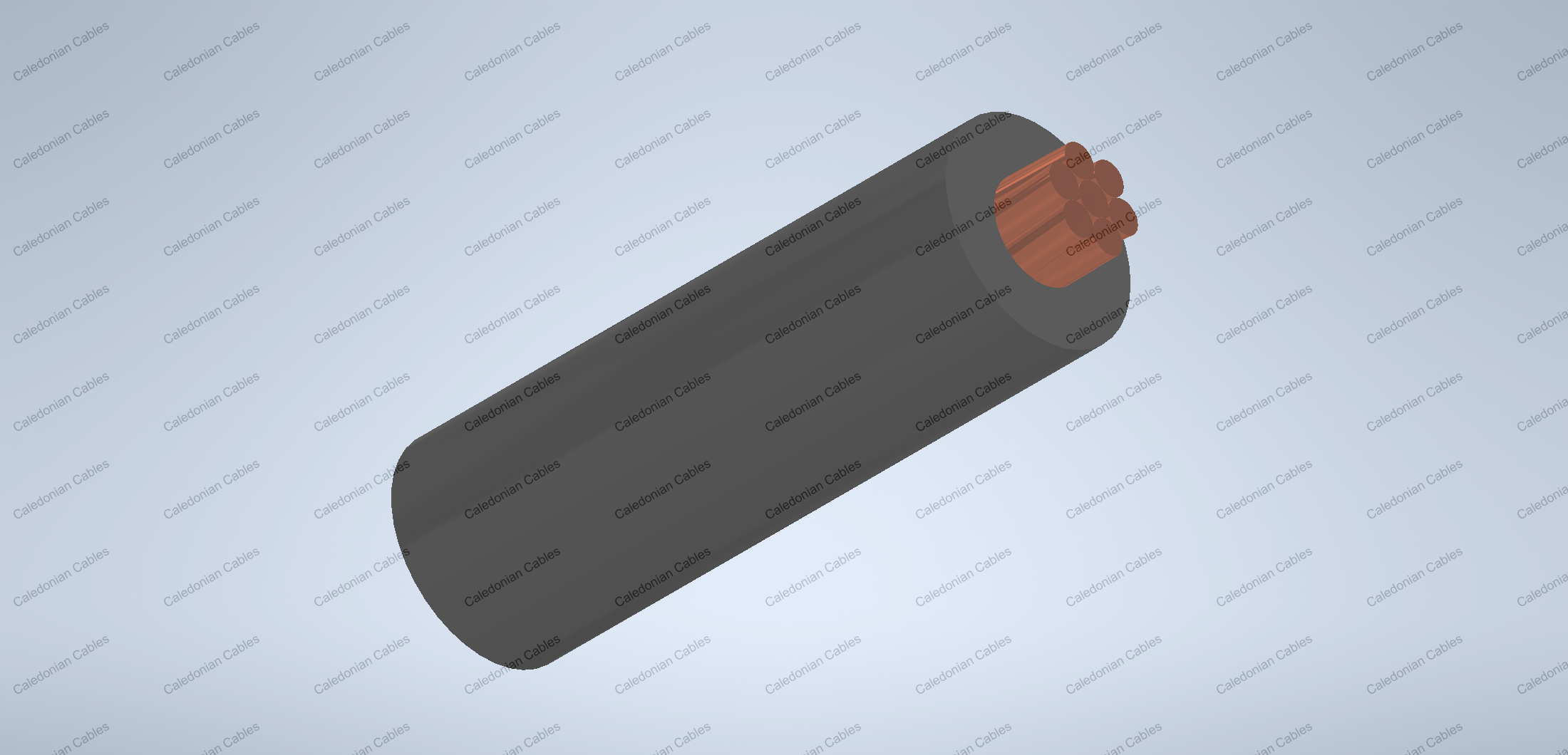

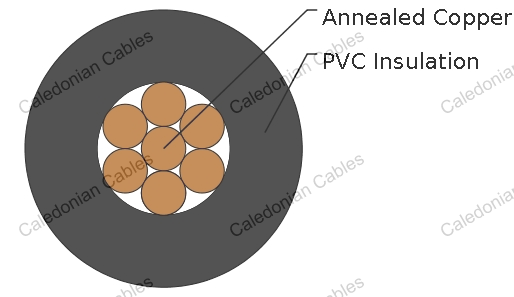

	H05V-R	Class 2 stranded copper conductor to BS EN 60228.

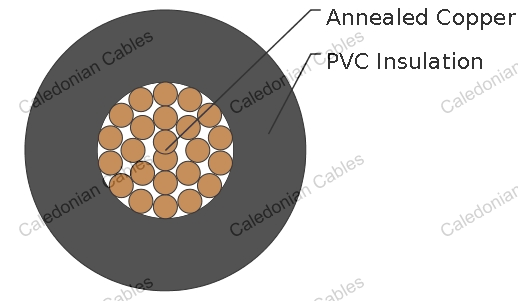

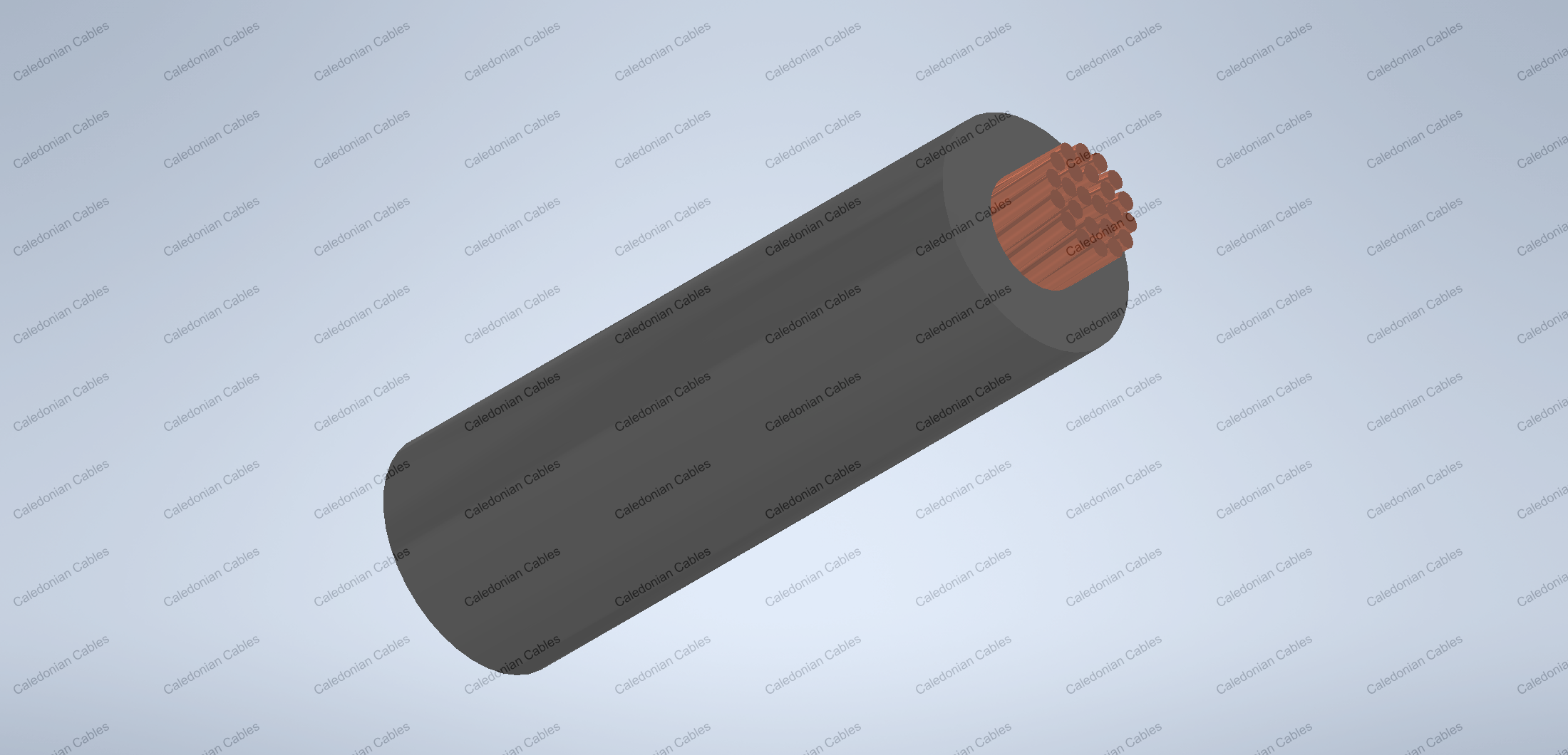

	H05V-K	Class 5 stranded copper conductor to BS EN 60228.
Insulation	PVC Type TI 1 according to BS EN 50363-3

COLOUR CODE

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bicolours of any combination of the above mono-colours are permitted.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)	70°C
Maximum short circuit temperature (5 Seconds)	160°C
Minimum bending radius	Up to 8mm²:	4 x overall diameter
	8mm² to 12mm²	5 x overall diameter
	Above 12mm²	6 x overall diameter

CONSTRUCTION PARAMETERS

Conductor		FGD100 05V-U/R/K
No. of Cores x Cross Section	Class of Conductor	Nominal Insulation Thickness	Maximum Overall Diameter	Approx. Weight
No.xmm²		mm	mm	kg/km
1x0.50	1	0.6	2.3	8
1x0.75	1	0.6	2.5	11
1x1.0	1	0.6	2.7	14
1x0.50	2	0.6	2.4	9
1x0.75	2	0.6	2.6	12
1x1.0	2	0.6	2.8	14
1x0.50	5	0.6	2.5	8
1x0.75	5	0.6	2.7	11
1x1.0	5	0.6	2.8	13

ELECTRICAL PROPERTIES

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A

Conductor cross-sectional area	PVC insulated types (HD 21)
Conductor cross-sectional area	single-phase a.c.	three-phase a.c.
mm²	A	A
0.50	3	3
0.75	6	6
1.0	10	10
Note: These values apply to the majority of cases. Further information should be sought in unusual cases eg.: (i) When high ambient temperatures are involved, ie. above 30°C (ii) Where long lengths are used (iii) Where ventilation is restricted (iv) Where the cords are used for other purposes, ego internal wiring of apparatus.

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B

Conductor cross-sectional area	d.c. or single-phase a.c.	Three-phase a.c.
mm²	mV/A/m	mV/A/m
0.50	93	80
0.75	62	54
1.0	46	40
